Basic Dim with GD&T

  • December 27, 2012
  • 4 replies
  • 1988 views

Hey Antonius (if your out there today).

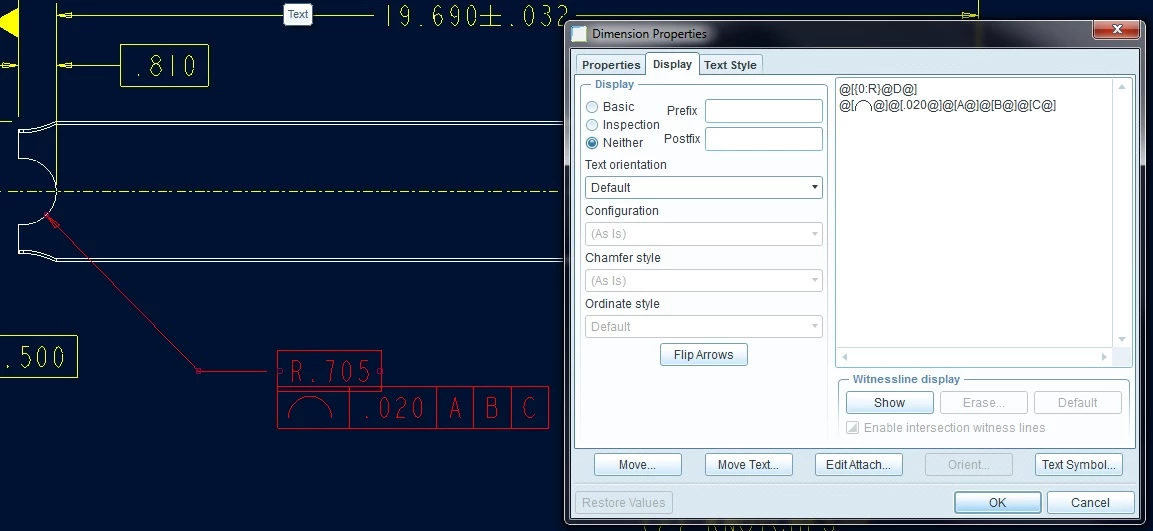

I have a basic dimension (and I have also tried it with the neither option - as shown) that I have added a GD&T tolerance box - manually.

The two boxes overlap (using either the neither option or the basic option). If I put a return between them, then there is a space between the boxes.

Does anyone (I know Antonius is the drawing Guru) have a suggestion or do I need to separate them into separate annotation.

Thanks,

Dale


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by TomD.inPDX

Oh, that's new! Enhancement?

Easy fix thought, change the text style line spacing to 1.0

4 replies

TomD.inPDX17-PeridotAnswer
17-Peridot
December 27, 2012

Oh, that's new! Enhancement?

Easy fix thought, change the text style line spacing to 1.0

Dale_Rosema
Dale_Rosema23-Emerald IVAuthor
23-Emerald IV
January 2, 2013

I figured you'd know what was up. It's just one of those things you don't deal with everyday. Besides why would my predecessor change it to less that one. Thanks a bunch.

Dale_Rosema
Dale_Rosema23-Emerald IVAuthor
23-Emerald IV
June 23, 2014

Is there something to change in the config.pro or drawing.dtl file to set this?
