I need to know how to put beams into my drawings. Like, i-beams, angles, tubing, etc. I don't see anywhere that I can do that. Any help?

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2D Drawing

StephenW

23-Emerald III

Do you mean as bulk material or ?? Normally I just model in my beams, angles, tubing and such as parts.
I think you may get better responses if you clarify your question or add an image of exactly what you are asking for.

B

bshepherd

10-Marble

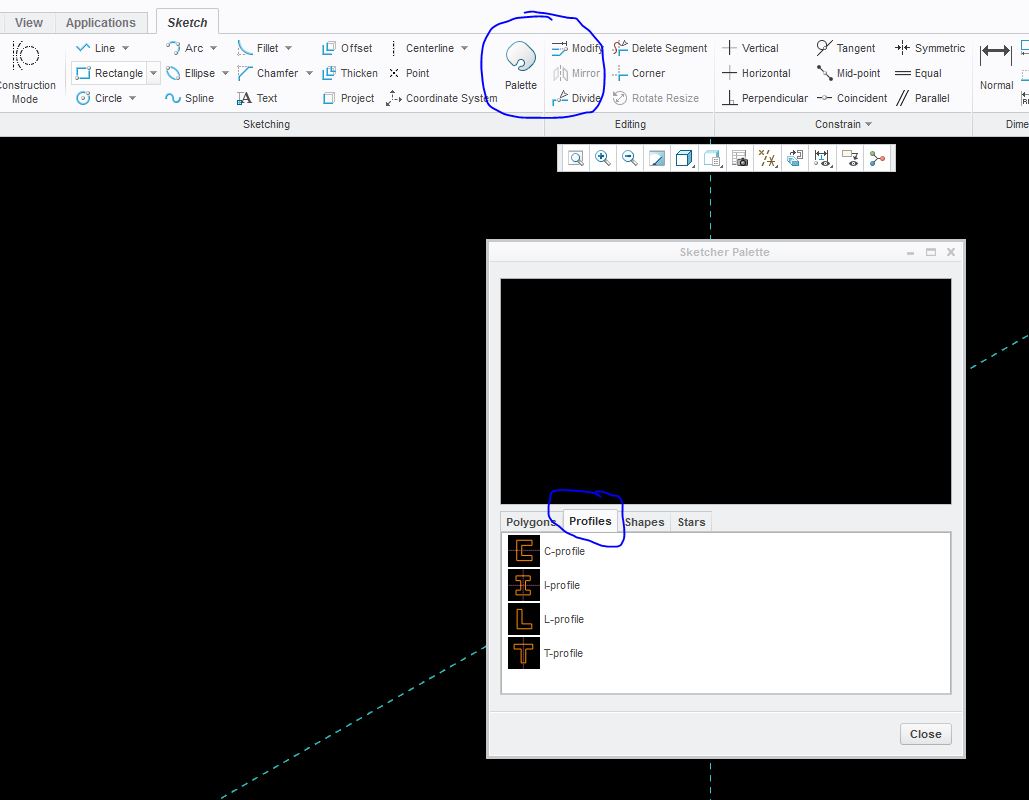

I do not think Creo has built in standard metal shapes like autocad. You can add in generic shapes from the sketching palette and dimension them yourself to get the sizes you want.
