Bolt Circle Issues - Dimensions

  • August 26, 2025
  • 3 replies
  • 2473 views

Another day and another CREO issue 🙂



So, I'm starting to get into detailing parts in CREO 10. Just to clarify - I have used NX and SolidWorks before and never ran into this issue.

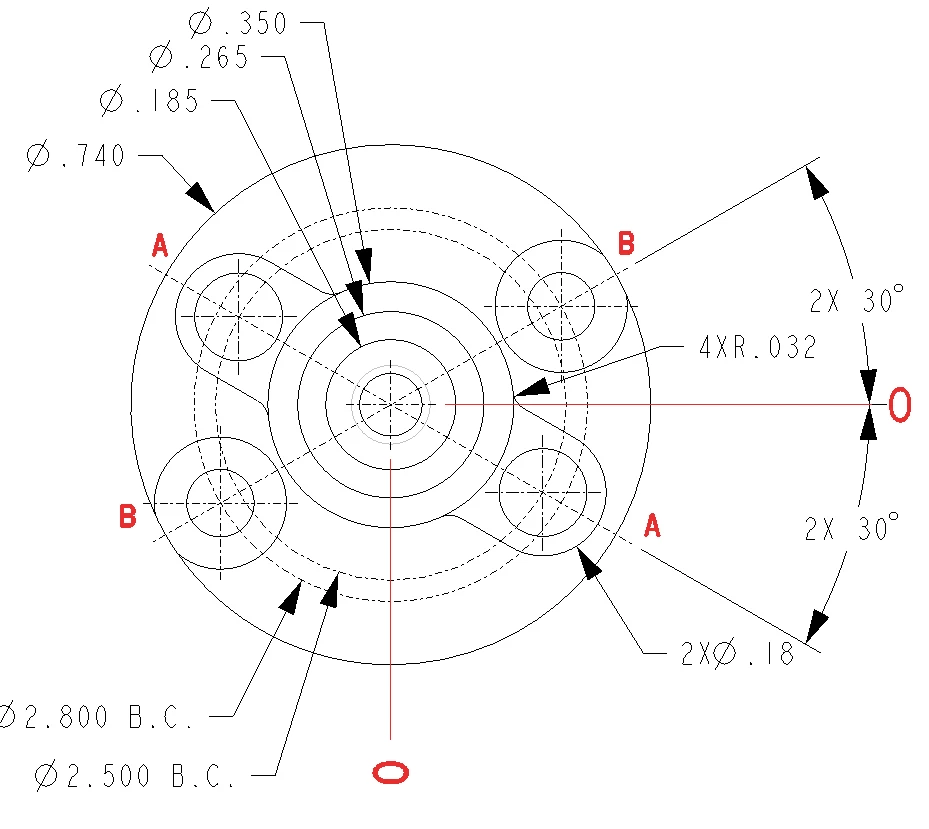

I wanted to dimension the part attached and use Bolt Circles for the two different holes. I tried using "Show Model Dims" and bring in the axis and dims. Well one feature was created using a circular pattern - and the other was two separate features (I did not create this model). I figured out how to display a circular centerline by changing drafting settings - but when I brought the dimension in it was a Radius. There was no way for me to change this to a Diameter. So, I decided to create my own sketches in the view and decided to just dimension to this directly. I'm sure people will say, "That's not how CREO works - you create in model and then bring in the model features/dims" Sure - but when it doesn't show what you actually want - I want to have other options/features to present the dimension how I want it. Well, when I placed the two Dimensions it doesn't scale to the drawing view. The 2.800 dia should be 0.560. The 2.500 dim should be  0.500 (as you can surmise - the scale of the view is 5X).. Why doesn't CREO scale secondary dimensions on sketched features??? When I click on physical geometry the dimension scales appropriately (which should be expected). Why does this happen - and is there a way to fix this?????



Thanks

Best answer by GO_10898978

Ignore.



So I sketched the Bolt Circles on top of the view - but did not associate or link to that view. Once you do this then the dims scale. Trial and error - I learned. Thanks.

3 replies

GO_1089897812-AmethystAuthorAnswer
12-Amethyst
August 26, 2025

Ignore.



So I sketched the Bolt Circles on top of the view - but did not associate or link to that view. Once you do this then the dims scale. Trial and error - I learned. Thanks.

24-Ruby III
August 27, 2025

Hi,

just a note ... you can also create Sketch feature representinf bolt circle inside the model. and set its line style in drawing.

16-Pearl
August 27, 2025

You are in the wrong forum.



PTC has two CAD systems:    Creo+ and Creo Parametric    and     Creo Elements Direct.



Which makes it confusing.



More, for Creo Elements Direct:

- The 3D software name is Modeling, and

- The 2D software name is Drafting.



For Creo+ and Creo Parametric, use only this tab:




You should move your post to this community to have a better chance to get an answer.

To move your post, click on the three vertical dots on your initial post and click on "Notify Moderator".





kdirth
21-Topaz I
21-Topaz I
August 27, 2025

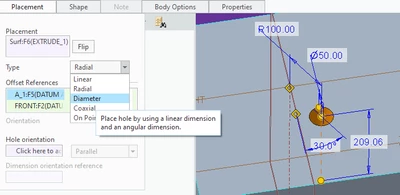

In order to show the dimensions you want, you need to define the model in the same way.  I would suggest redefining the first hole from radial to diameter to show the diameter dimension.


Otherwise you need to add your own dimension.  Selecting the bolt circle twice will create a diameter dimension.  You can also change a created dimension by changing the "Orientation":




There is always more to learn.
