broken 3D views on drawings?

  • March 15, 2016
  • 3 replies
  • 2701 views

We make many complex assemblies that have a high Length / Diameter ratio, and extensively use broken orthogonal views on drawings.

Question: Is it possible somehow to create broken 3D views?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

T
TomD.inPDX17-Peridot
17-Peridot
March 15, 2016

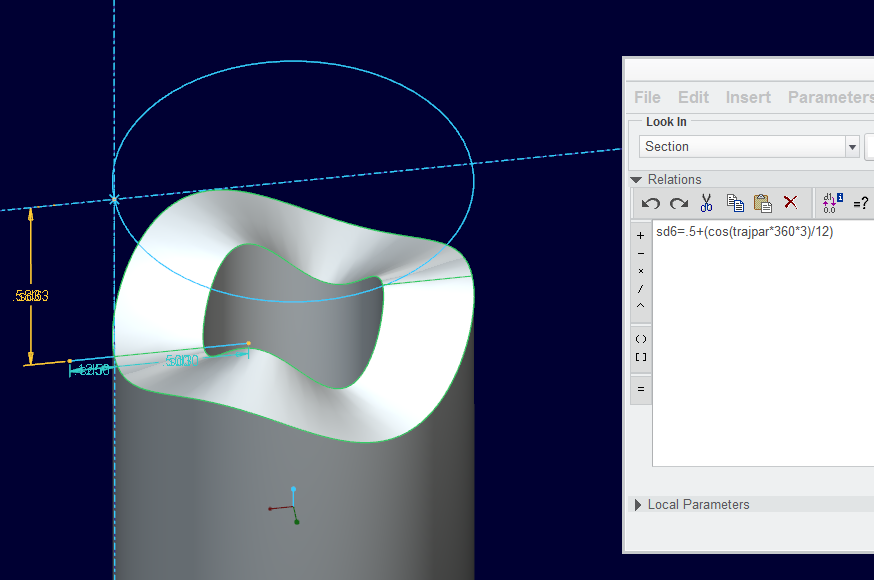

I normally get fancy about here by doing family table cuts and merging of views.  It is only on rare occasions I would go this far.  But the assembly cut is often a sinusoidal wave on a sweep.

    StephenW
    StephenW23-Emerald III
    23-Emerald III
    March 15, 2016

    Nice Antonius, Your really know how to add a touch of flair!!!

      M
      mender12-Amethyst
      12-Amethyst
      March 15, 2016

      You can make 'a broken 3d view', in that you can have a broken view, and the orientation can be isometric/trimetric/similar.  However,

      the direction of alignment is always horizontal or vertical.  For something resembling 'a broken view of an isometrically-oriented model, where the direction of alignment is along a diagonal', your best bet is a pair of partial views.

      P
      psobejko1-Visitor
      1-Visitor
      March 16, 2016

      Also look into the "Copy and Align" type of a detail view.

      Terms & ConditionsAccessibility statement
