Question
Cables show through filled area. How does one prevent this?
- January 10, 2012
- 0 replies
- 492 views

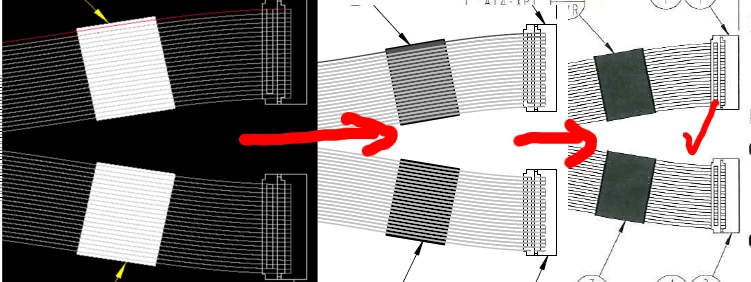

I got a ribbon cable here that has some heat shrink labels represented by
filled rectangles. How do I set up the environment/drawing options so that
the cables show up under the labels and not through the labels?
regards,
Alfonso
[image: image.png]
