can any one tell how to unbend the blended sheetmetal

  • September 11, 2012
  • 2 replies
  • 2086 views

dear all,

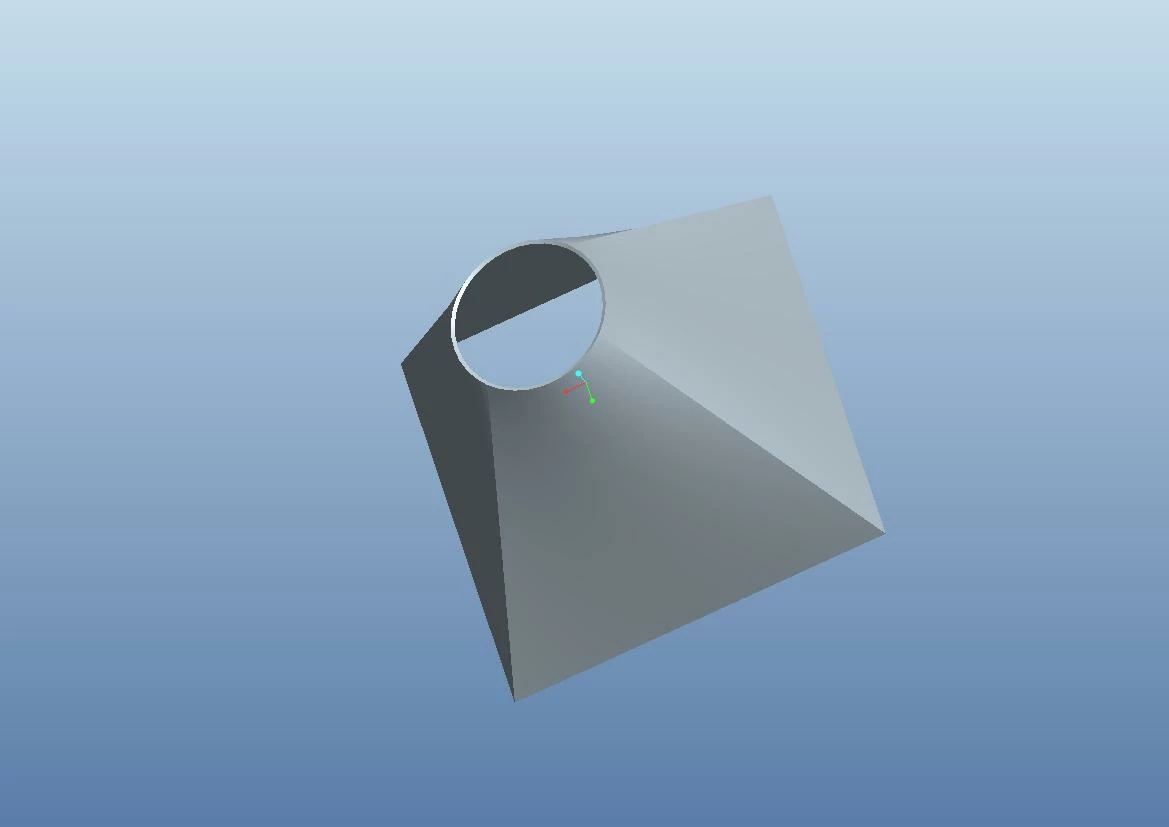

please any one tell how to unbend the attached sheetmetal part. pls.......


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

S
s.iyer1-Visitor
1-Visitor
September 11, 2012

Pl refer to the following link.

http://learningexchange.ptc.com/tutorial/411/creating-unbend-features

B
BrianMartin13-Aquamarine
13-Aquamarine
September 11, 2012

Hi Thiru...

First, you'll need to create a rip down one of the seams of your blend to "open-up" the geometry. Second, it helps to have either rounds or edge bends down the 4 "corners" of your part to help the geometry unbend. Finally, you'll likely have some crazy non-ruled surfaces to deal with (which is what S.Iyers' video link deals with).

If you have a part, please upload it so other users can take a crack at unbending it. Also... which version of Pro/ENGINEER or Creo are you using?

Thanks!

-Brian

T
Thiru1-VisitorAuthor
1-Visitor
September 12, 2012

Dear Brian Martin,

I have attached the part file of the component which I gave earlier as jpg. I am currently using pro E wildfire 5.0. so iyer's video didnot help me.
