Can sweep protrusion stop at surface?

  • July 11, 2012
  • 5 replies
  • 1923 views

wildfire 4

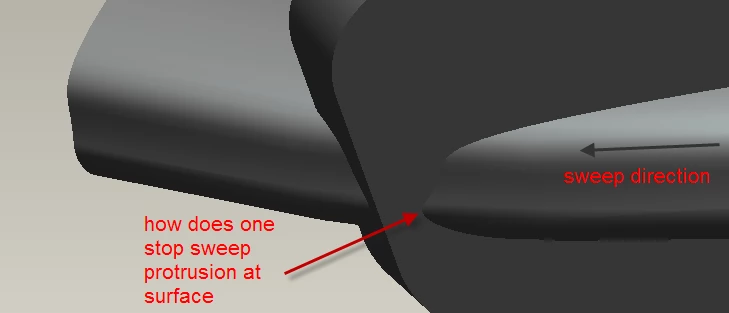

I created a sweep protrusion (as seen in attached image) and would like it to stop at a surface. Right now, it just passes through the surface and stops when it has reached the end of its trajectory. If you have suggestions, please let me know.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

5 replies

T
TimothyField13-Aquamarine
13-Aquamarine
July 11, 2012
You could copy a surface of the protrusion and use it to either merge or trim the sweep surface. It adds two features , the copy and the trim or merge, but it would give you the result you're looking for.

Tim
K
KrisR1-Visitor
1-Visitor
July 11, 2012
Can you stop your trajectory at the surface with a relation or parameter?
B
BobFrindt1-Visitor
1-Visitor
July 11, 2012
and then the "merge ends" option may work


Bob Frindt
Sr. Designer
Parker Hannifin Corporation
Parker Aerospace
Gas Turbine Fuel Systems Division
8940 Tyler Boulevard
Mentor, OH 44060 USA
direct (440) 266-2359
D
DonSenchuk12-Amethyst
12-Amethyst
July 11, 2012
Create it as a sweep surface, then merge it to the surface you want it
to stop at.




D
DamianCastillo1-Visitor
1-Visitor
July 12, 2012

Here is a quick video on my new Youtube Channel that shows one of many methods of doing this.


Hope it helps



http://youtu.be/d4ZAQQW-Pn8?hd=1



"Too many people walk around like Clark Kent, because they don't realize they can Fly like Superman"
