Can we highlight non standars symbols through model check?

  • June 19, 2015
  • 3 replies
  • 1459 views

Hi All,

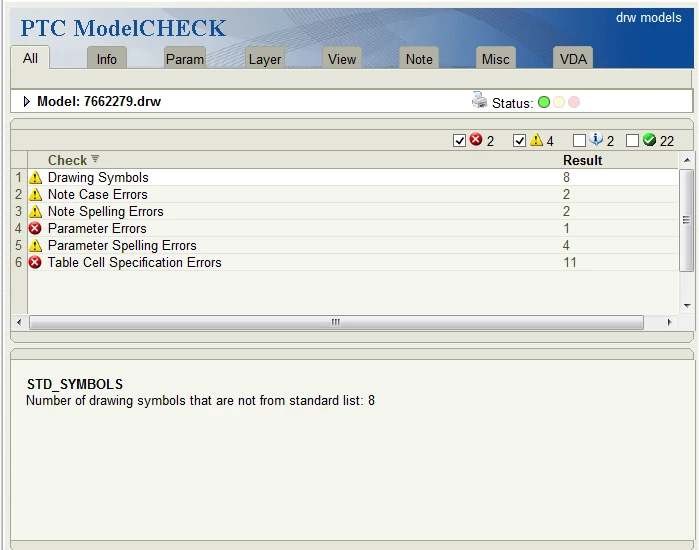

I have configured model check to check the non standard symbols on drawing sheet.

As per the attached image, result comes in numbers.

For example:

STD_SYMBOLS
  Number of drawing symbols that are not from standard list: 8


Can we highlight these non standard symbols?

Thanks & Regards,

Y S Srikanth Kashyap


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by DonSenchuk

Based on your screen shot I have to say no. If the listed warning doesn't allow a correction I don't believe any other changes to the model check configs will change that. I also don't recall seeing anything in the manual about correcting symbols.

3 replies

DonSenchuk12-AmethystAnswer
12-Amethyst
June 19, 2015

Based on your screen shot I have to say no. If the listed warning doesn't allow a correction I don't believe any other changes to the model check configs will change that. I also don't recall seeing anything in the manual about correcting symbols.

    Mahesh_Sharma
    Mahesh_Sharma22-Sapphire I
    22-Sapphire I
    June 19, 2015

    Srikanth,

    STD_SYMBOLS will report error/warnings as information referring the list for DRW_SYMBOLS in start file. Highlighting for such symbols is not possible.

    I think information provided by Don is good enough to answer your query.
