Question

Can we import a jpg or bmp into ProE for tracing and getting a design started?

  • August 3, 2011
  • 9 replies
  • 4477 views

WF 4 M160

David T. Francis


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

9 replies

IainLewis1-Visitor
1-Visitor
August 3, 2011
Import it as a trace sketch in ISDX ie Insert > Style > Styling > Trace
Sketch.



Regards



Iain



mjenkins10-Marble
10-Marble
August 3, 2011

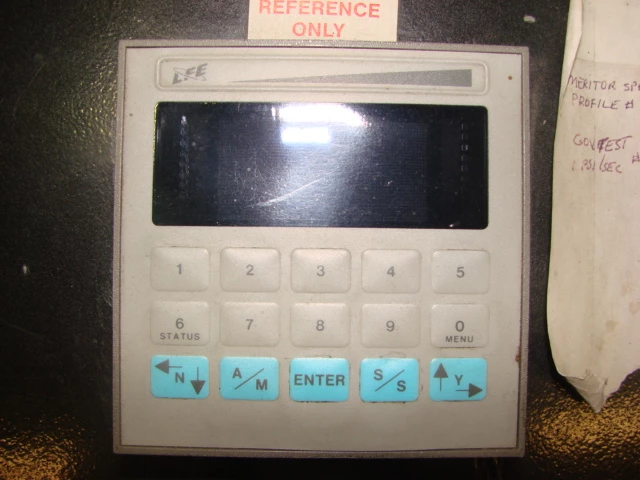

Open the picture in Photoshop or GIMP (Free version).

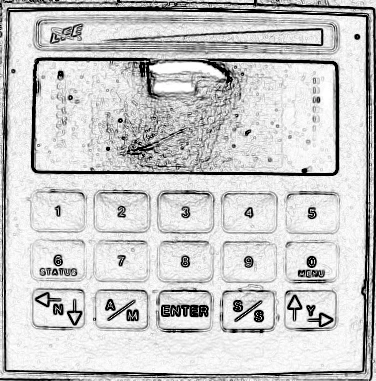

Apply Edge Detect filter.


Save picture as a pdfand upload to:


http://www.pdftodxf.com/

In Reply to David Francis:



WF 4 M160

David T. Francis







TimMcLellan12-Amethyst
12-Amethyst
August 3, 2011
Keep in mind that Trace Sketch is not available without ISDX until Creo 1.0.



Tim McLellan
Mobius Innovation and Development, Inc.
kimndave91-Visitor
1-Visitor
August 3, 2011
Crop the image to the edges of the item. Create a surface as large as the item and make the surface match the width and height. Place the image using a decal texture via a color.

This is useful for place-holders as well. Rather than model all the keys on a keyboard, just place a photo of the keys on a keyboard shape.

Dave S.
MGortner1-Visitor
1-Visitor
August 3, 2011

Here's a quick tutorial I put on google docs a while back. It describes David's method in more detail.


https://docs.google.com/present/edit?id=0ATkbvHms-NVdZGtuMzJmZ180NDNnOTRrZjZnMw&hl=en_US&authkey=CMiv1OYJ



Regards,
Matt

smiller-31-Visitor
1-Visitor
August 3, 2011

Here's one on youtube.


http://www.youtube.com/watch?v=hHpm_vsoGvY

ursa_major19741-Visitor
1-Visitor
August 4, 2011

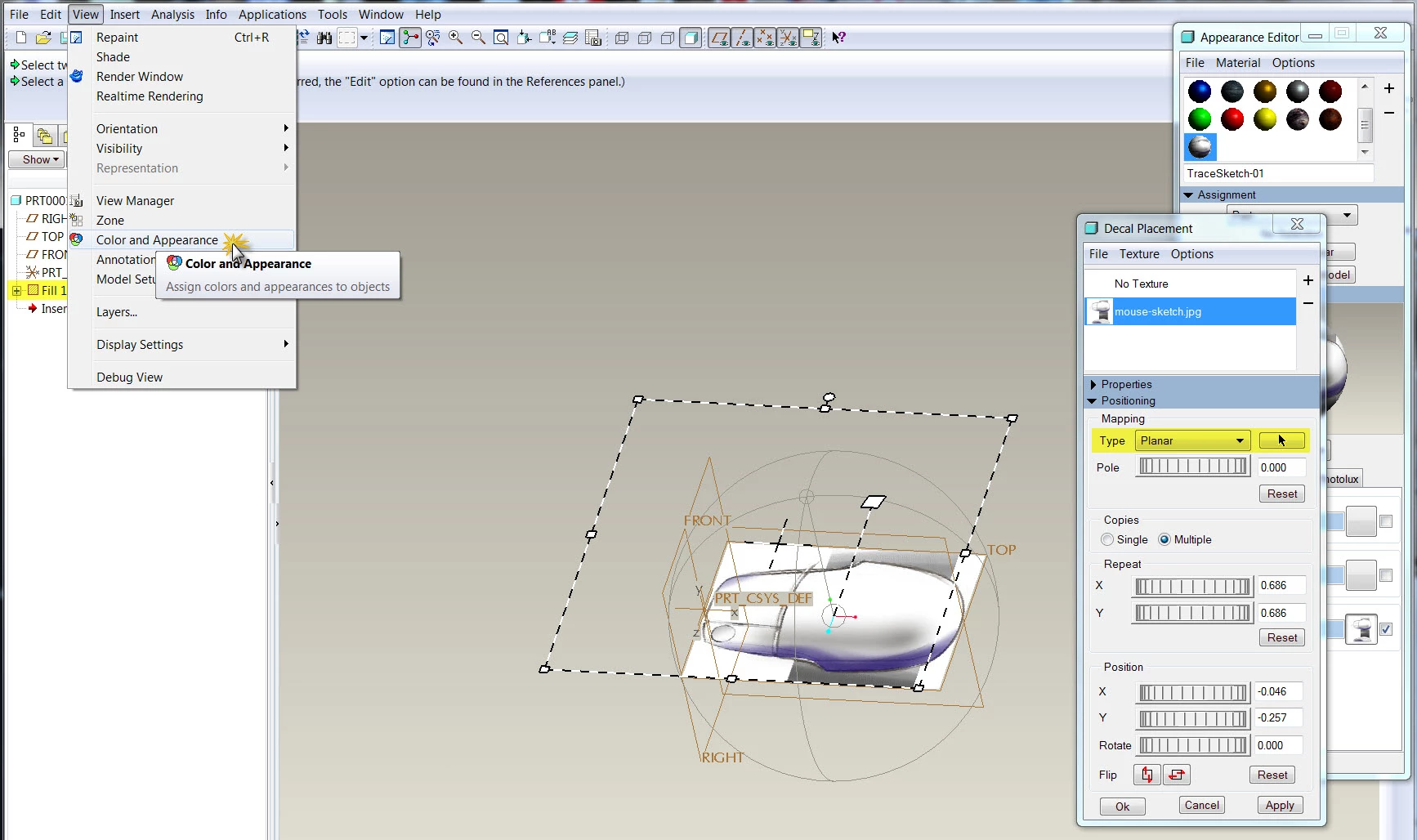

For people not having ISDX the workaround would be to create a planar surface and map the image on the Surface via "Colors & Appearances". Map the Appearance as a planar map. Create the Planar surface to scale and stretch the image to match the edges of the Surface.

But TraceSketch is the best option.

Kind regards,
Jb..
TimMcLellan12-Amethyst
12-Amethyst
August 4, 2011
Jb, et-al,



While I had sent David this solution shortly after the question was posted
by him I did not copy the group. I was sort of expecting a summary posting
after the solutions were tested by David.



In any event my intention for the comment below, " Keep in mind that Trace
Sketch is not available without ISDX until Creo 1.0." was to add
clarification to Iain's (PTC's) post. While I think everyone really
appreciates any participation from anyone from PTC on the board it is
important we understand all the details. If anything, it gives non-ISDX
owners another reason to go to Creo. 🙂



For those who need the trace sketch functionality (dimensionally scale an
image) and do not have ISDX, I would suggest downloading Creo and give it a
try.



Cheers,

Tim McLellan
Mobius Innovation and Development, Inc.
DavidFrancis1-VisitorAuthor
1-Visitor
August 4, 2011



In Reply to David Francis:



WF 4 M160

David T. Francis




Hello All,


I do intend on providing a summary, however, I am the administrator and am awaiting feedback from the user. I will also tell you that there have been dozens of responses to this and almost as many different techniques. I would caution that several of them seem to be from different versions.......

David T. Francis
