Center Mark - Uniform Sizing?

  • August 6, 2019
  • 2 replies
  • 5705 views

Is there a way I can easily adjust the size of a Center Mark on my Creo 4 drawing besides dragging each endpoint individually?

Thanks

2 replies

R
rzukowski13-Aquamarine
13-Aquamarine
August 6, 2019

Under the annotation tab, select the center mark.  Then move your cursor to the intersection of the centerlines and drag from there.  This will drag all four ends at once.

D
doneill2-ExplorerAuthor
2-Explorer
August 6, 2019

When I move my cursor to the intersection and try to drag, all I get is a selection box...

M
MartinHanak24-Ruby III
24-Ruby III
August 7, 2019

Hi,

please attach a picture describing your "situation".

D
doneill2-ExplorerAuthor
2-Explorer
August 7, 2019

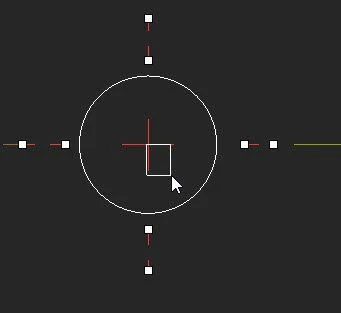

8-7-2019 7-09-15 AM.jpg

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
August 7, 2019

Select the center mark then position pointer over one of the lines of the center mark and drag the line out from the center to adjust all four ends together.

There is always more to learn.
