Recently, in my work I have to do a lot of sweeps, like the one bellow:


Now, to close the ends I have to do a revolve:


This doesn´t seem much work, but, to do the revolve it takes about 23 clicks (Revolve, Select Plane for skecth, add references, define axis, project, trim...) for each end. Total of 46 clicks for closing both sides.

I´m trying to figure out a easier way to do this. I tried copy/paste and udf´s , but both fail often.

Jose


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Jose_Costa

Ok, I found a solution, maybe can be shortened a little but it´s the best I´ve got for now:

1 - Do the sweep

2 - Copy one end surface

3 - Trim it by half (by plane)

4 - Copy all edges of this surface

5 - Create a revolve using this edges

6 - Repeat in the other end.

Grouping it all together I just have to give 4 references for each runner: a curve, one end, other end and a normal plane.

I reduced from about 50 clicks to 5 or 6. Good enough for me.

Video Link : 5294

3 replies

T
TomD.inPDX17-Peridot
17-Peridot
September 10, 2014

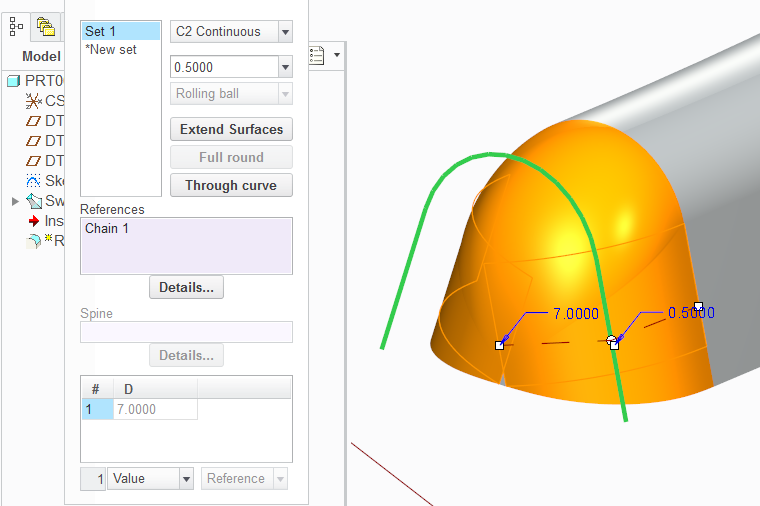

If you don't mind a small pip, a round does pretty well.

...and it can be C2 continuous.


J
Jose_Costa12-AmethystAuthor
12-Amethyst
September 10, 2014

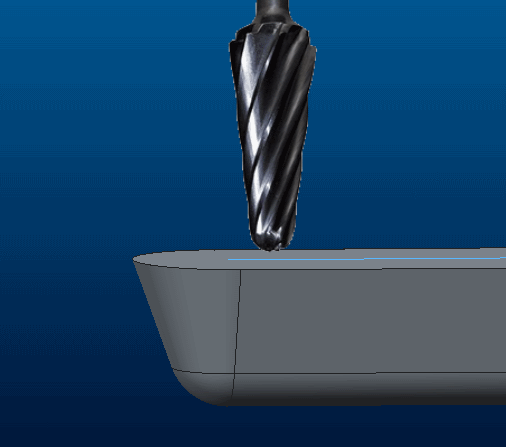

Since this is a channel to be milled, I have to keep the profile (angle and radius):


Nice pic, Huh??

T
TomD.inPDX17-Peridot
17-Peridot
September 10, 2014

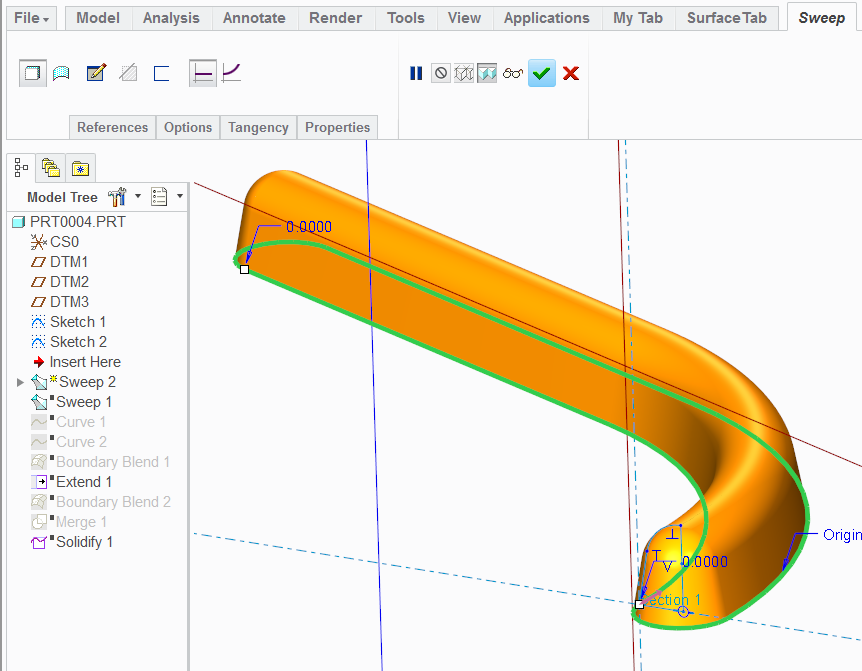

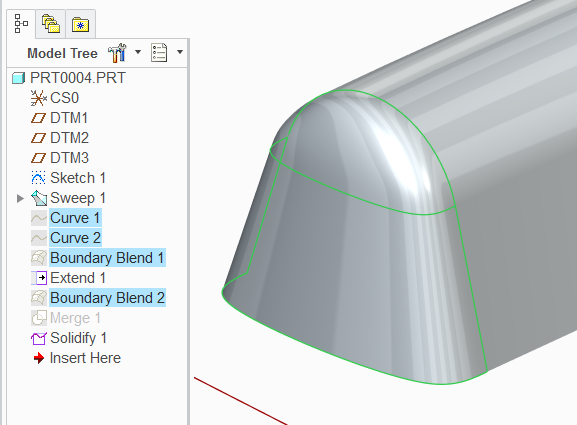

I got to this within a few hundred... maybe a 1,000 clicks

Only few hundred more clicks might have achieved round'r ends.

I'm proud of it though... fully bound with curvature contraints!


Of course, you could sweep the 1/2 profile around the periphery .


I
Inoram14-Alexandrite
14-Alexandrite
September 10, 2014

You do not have the mold design package I am guessing?

J
Jose_Costa12-AmethystAuthor
12-Amethyst
September 10, 2014

Yes I have, I can create runners with it, but...... the runner only allows to create cuts, not create "extrudes", I need to create the solid of the runners first, and then make a cut-out.

Also the runner feature seems to have some bugs.

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
September 10, 2014

Ahhh, runners. Remember when you got a plastic model to put together, and there was more total material in the runners than the parts?

    J
    Jose_Costa12-AmethystAuthorAnswer
    12-Amethyst
    September 16, 2014

    Ok, I found a solution, maybe can be shortened a little but it´s the best I´ve got for now:

    1 - Do the sweep

    2 - Copy one end surface

    3 - Trim it by half (by plane)

    4 - Copy all edges of this surface

    5 - Create a revolve using this edges

    6 - Repeat in the other end.

    Grouping it all together I just have to give 4 references for each runner: a curve, one end, other end and a normal plane.

    I reduced from about 50 clicks to 5 or 6. Good enough for me.

    Video Link : 5294

    T
    TomD.inPDX17-Peridot
    17-Peridot
    September 17, 2014

    That was my initial method as well, Jose, but I ended up with 23 clicks on each half. Since you mentioned 22 clicks per half, I assumed you used the same method. However, that copy/paste thing is nice

    J
    Jose_Costa12-AmethystAuthor
    12-Amethyst
    September 17, 2014

    Sorry if I wasn´t clear enough. My target is to replicate sweep and revolved ends with minimum number of clicks/references. Ideally, creating a UDF that only asks for a curve and a plane.

    I started with the sweep and then creating a revolve at the ends. But to do the revolve, I can use only half of the section, projecting the edges, creating a line in the middle and trimming the curves.

    No problem until this point.

    Now I try copy/paste to the other end, it asks me all the edges references, and it fails often. I do the revolve manually again, group all features and try to copy/paste using other curve, problems....

    I try to copy revolved ends to other sweeps with varied dimensions, problems...

    The trick here was to copy the surface, trim it by half, and use all edges for the revolve.

    Now I can replicate the sweep with revolved ends just giving a curve, a plane and two endpoints.

    I have parts where I have to make twenty or thirty sweeps like these, now I make them much more faster.

    Jose
