Control no. of dimensions dispalyed

  • April 24, 2019
  • 3 replies
  • 1936 views

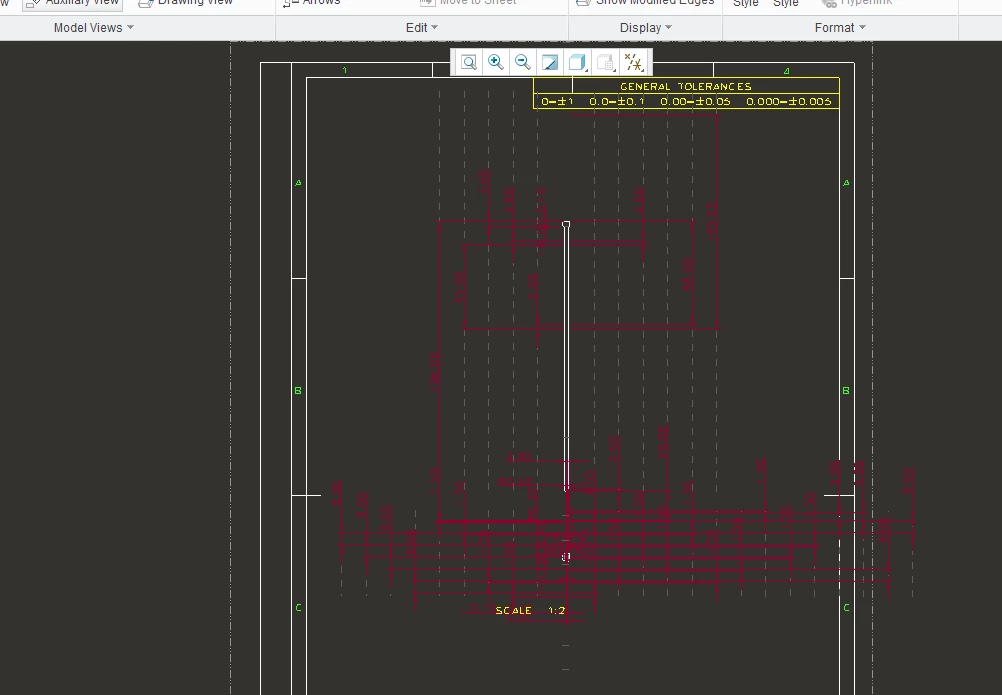

Is there any way in which the no. of dimensions to be displayed can be controlled. I have created a template and selected dimensions but it gets extremely crowded and i dont really need all the displayed dimensions.

What can be done to just get the dimensions which are needed?

Is that even possible?

Deleting the extra dimensions kills the very purpose of template creatiion.

Any suggestions please?

3 replies

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
April 24, 2019

@sparulekar

When showing dimensions in drawing, check only required ones in Show Model Annotations dialog box.

I hope you are working with Creo latest versions..

S
sparulekar1-VisitorAuthor
1-Visitor
April 25, 2019

I am using creo 3.0.

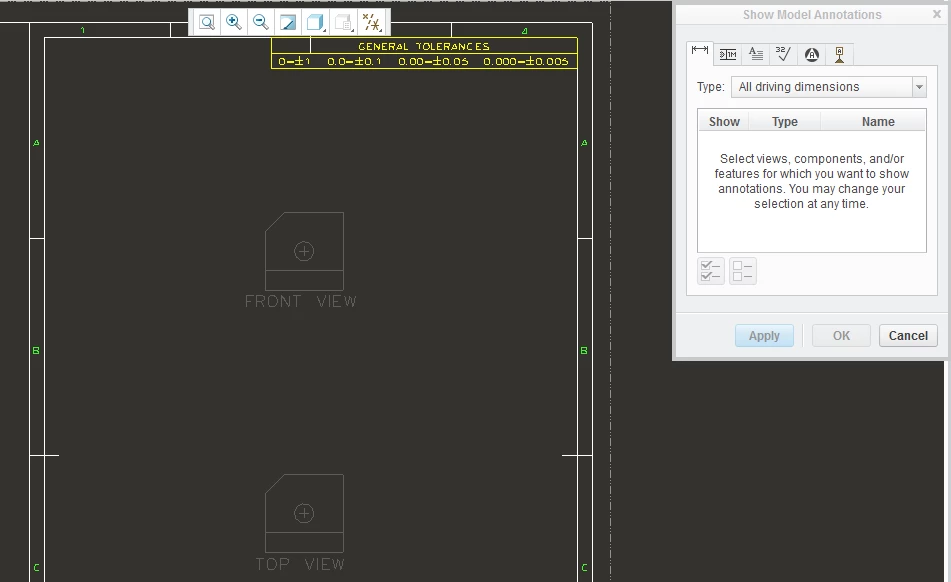

I tried doing what you said but I am unable to select even a single dimension. This is what i get.

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
April 25, 2019

@sparulekar

Ok, it is from template only.. Select the template view > Properties > Uncheck Dimensions in "Template view Instructions"
