CORNER CUPS

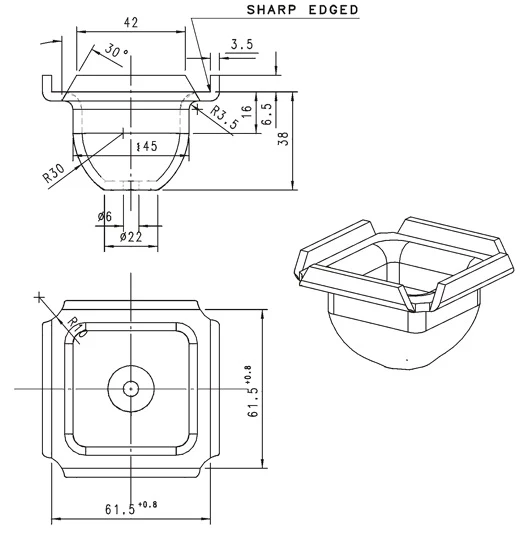

Can anyone guide me in creating the model as per the below attached file.



Regards



raghavender

5 replies

StephenW
StephenW23-Emerald III
23-Emerald III
July 3, 2018

What have you got so far? What feature are you having problems with?

I think I would model it as a solid and shell it to have the correct wall thickness

Translate
mekins1-VisitorAuthor
1-Visitor
July 4, 2018

Dear Stephen ,



I have tried using revolve option , but unable to create the model.





Translate
Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
July 3, 2018

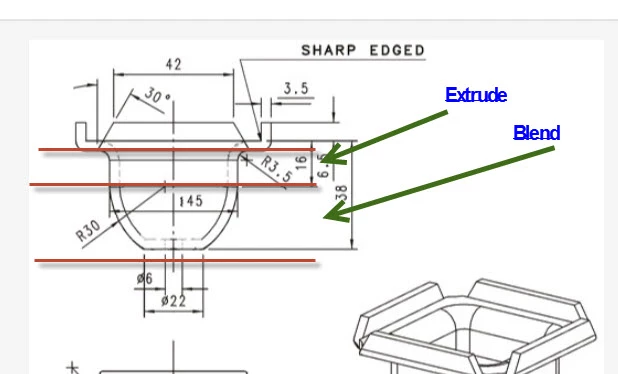

Possibly an extrude + Blend for lower side of part.






Translate
HamsterNL
HamsterNL18-Opal
18-Opal
July 5, 2018

As @Mahesh_Sharma suggests, you will need a blend for the bottom part (square to round).



Take a look at this post Did You Know Creating a Square to Round Blend in PTC Creo

Translate
Inoram14-Alexandrite
14-Alexandrite
July 6, 2018

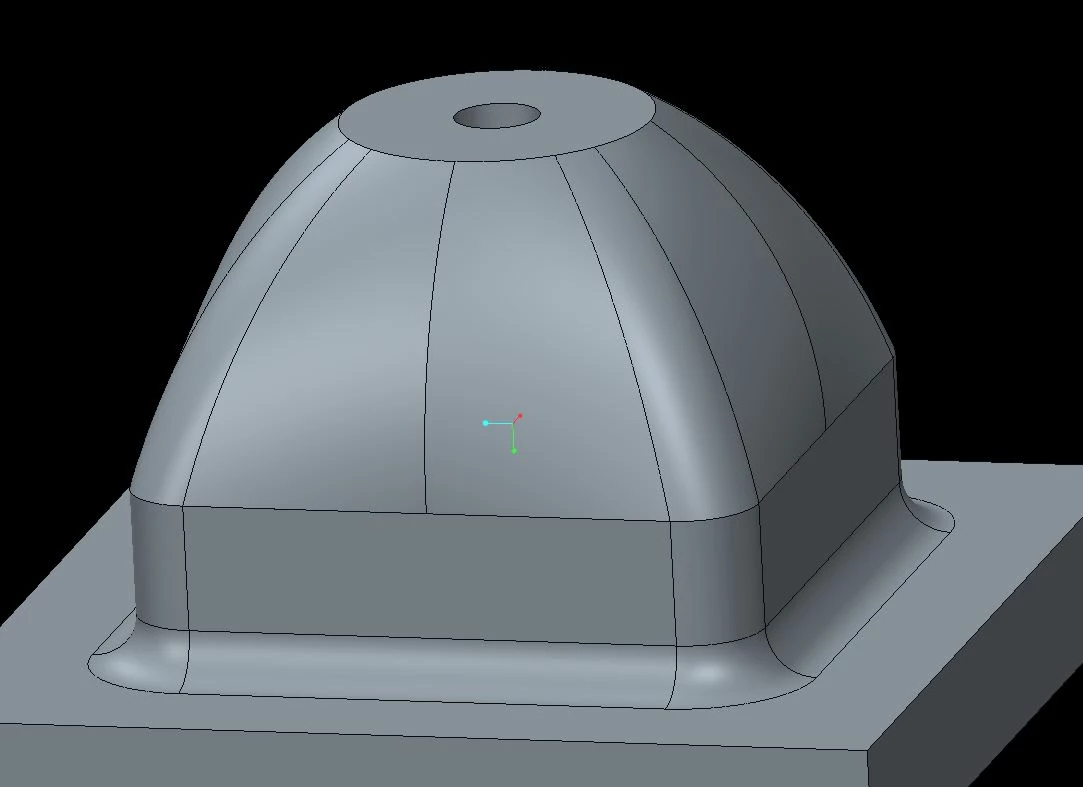

Meh, not really correct, but the print doesn't appear to be correct either.
