cosmetic threaded holes in drawing for wildfire 3.0

  • April 10, 2014
  • 1 reply
  • 1976 views

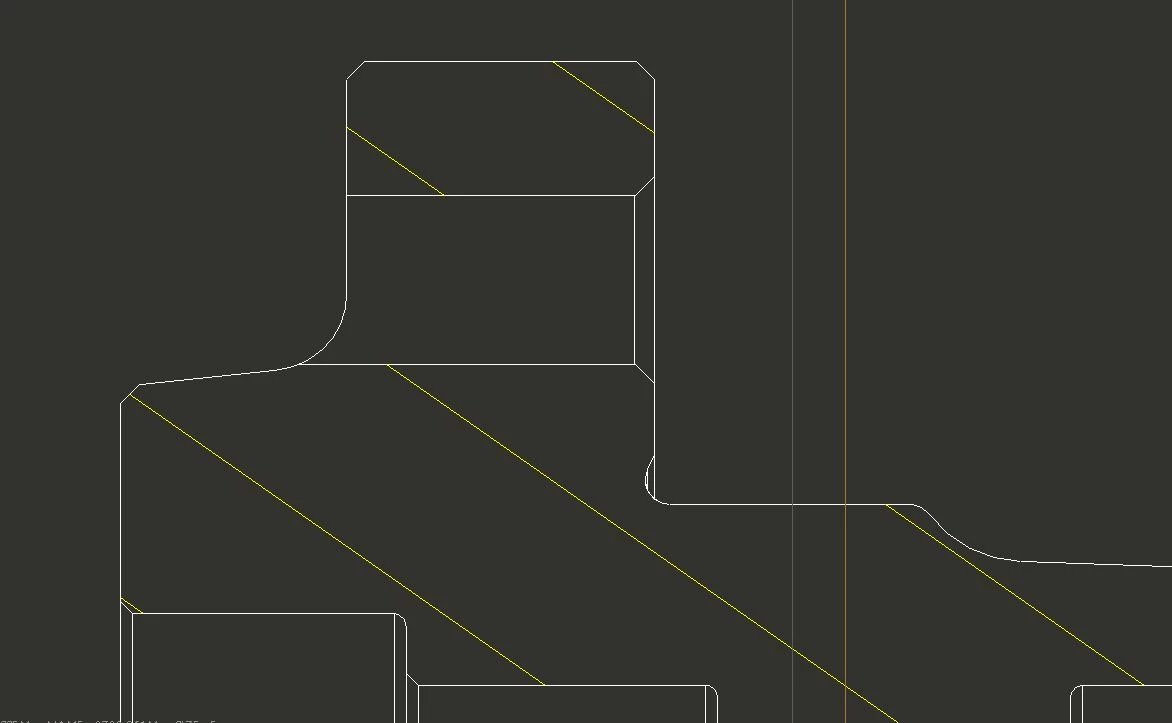

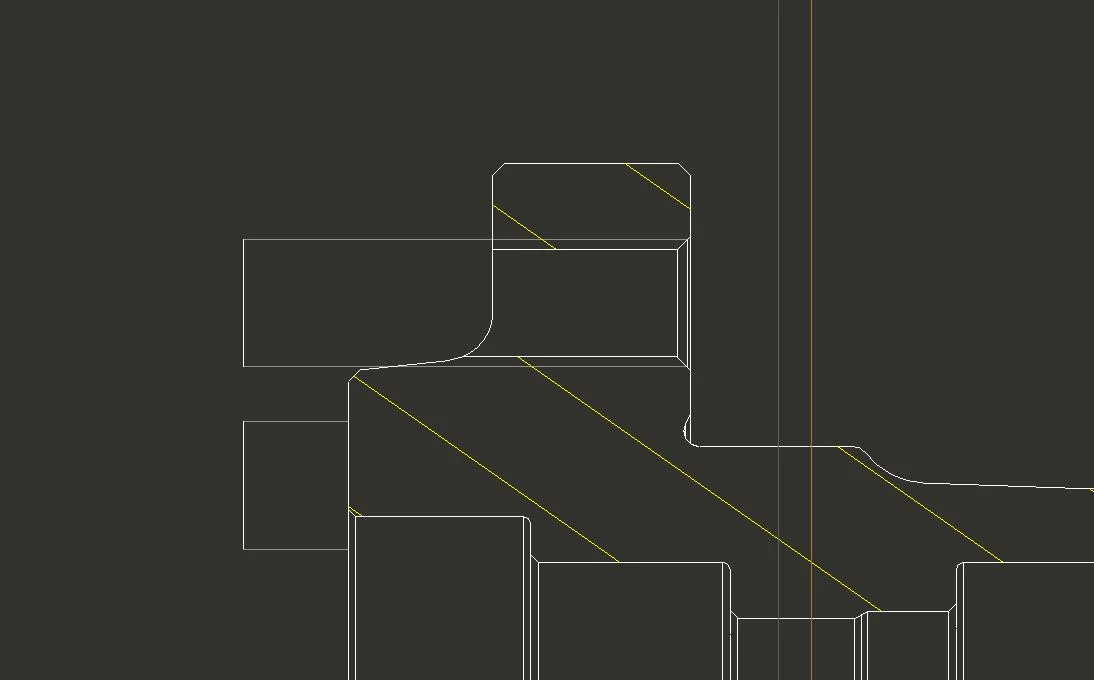

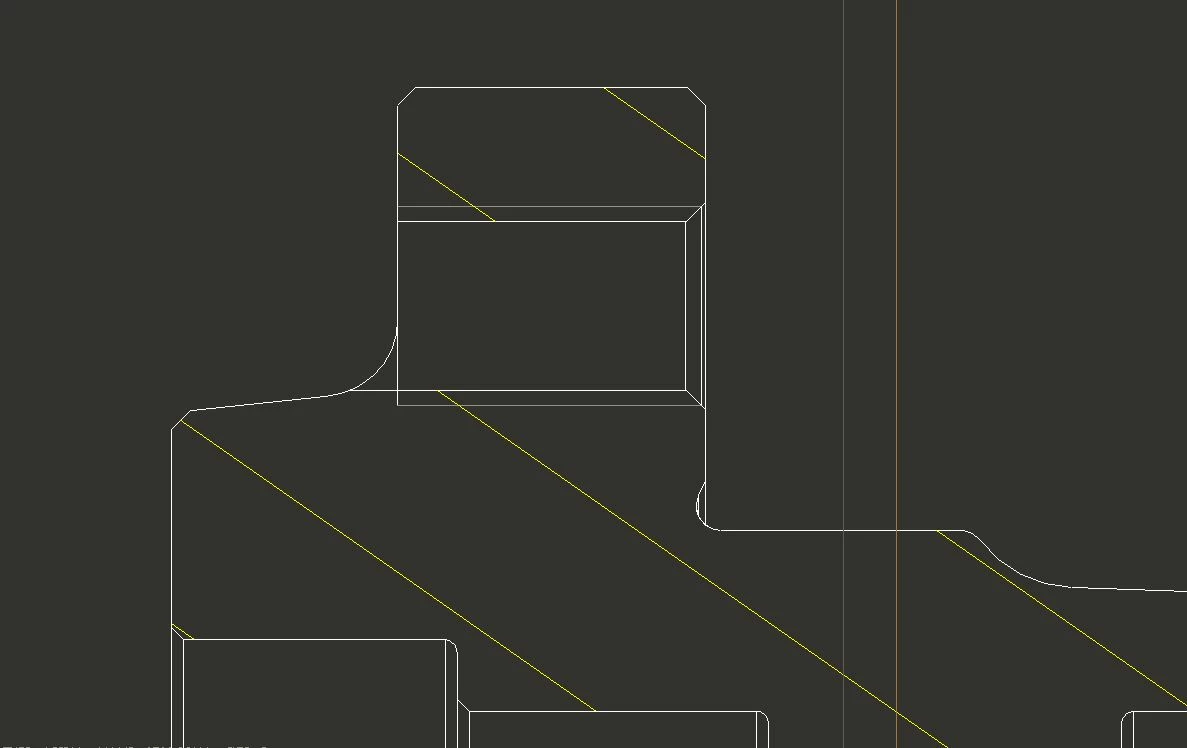

I'm having a problem figuring what I should do for a part that the thread blends through the part. I attached some jpeg of what I'm talking about. Please help.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by BillChapman

Can't remember the exact version that fixed this issue in the hole feature (maybe WF 4.0. Now when you create a new hole the cosmetic thread is handled correclty with no additional action. If a new hole in WF 3.0 does not come in correctly you need to trim the sufrace, or create the cosmetic thread separate from the hole and you can choose "up to surface" for the depth.

1 reply

B
BillChapman13-AquamarineAnswer
13-Aquamarine
April 10, 2014

Can't remember the exact version that fixed this issue in the hole feature (maybe WF 4.0. Now when you create a new hole the cosmetic thread is handled correclty with no additional action. If a new hole in WF 3.0 does not come in correctly you need to trim the sufrace, or create the cosmetic thread separate from the hole and you can choose "up to surface" for the depth.

D
diggs1-VisitorAuthor
1-Visitor
April 11, 2014

how do you do trim in drawing
