Question

Creating a curve using "Whole Array" AND "Multiple Rad"

  • August 19, 2013
  • 4 replies
  • 1862 views

How does one create a curve using Multiple Radii on a Whole Array (Offset CSys Datum Point)? I only get to specify one radius and can find no way to edit or redefine the curve to specify more than one. I've heard that Multiple Radii may only be available for curves through Single Points. Is this true?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

4 replies

T
TomD.inPDX17-Peridot
17-Peridot
August 19, 2013

Hello Jim and welcome to the forum.

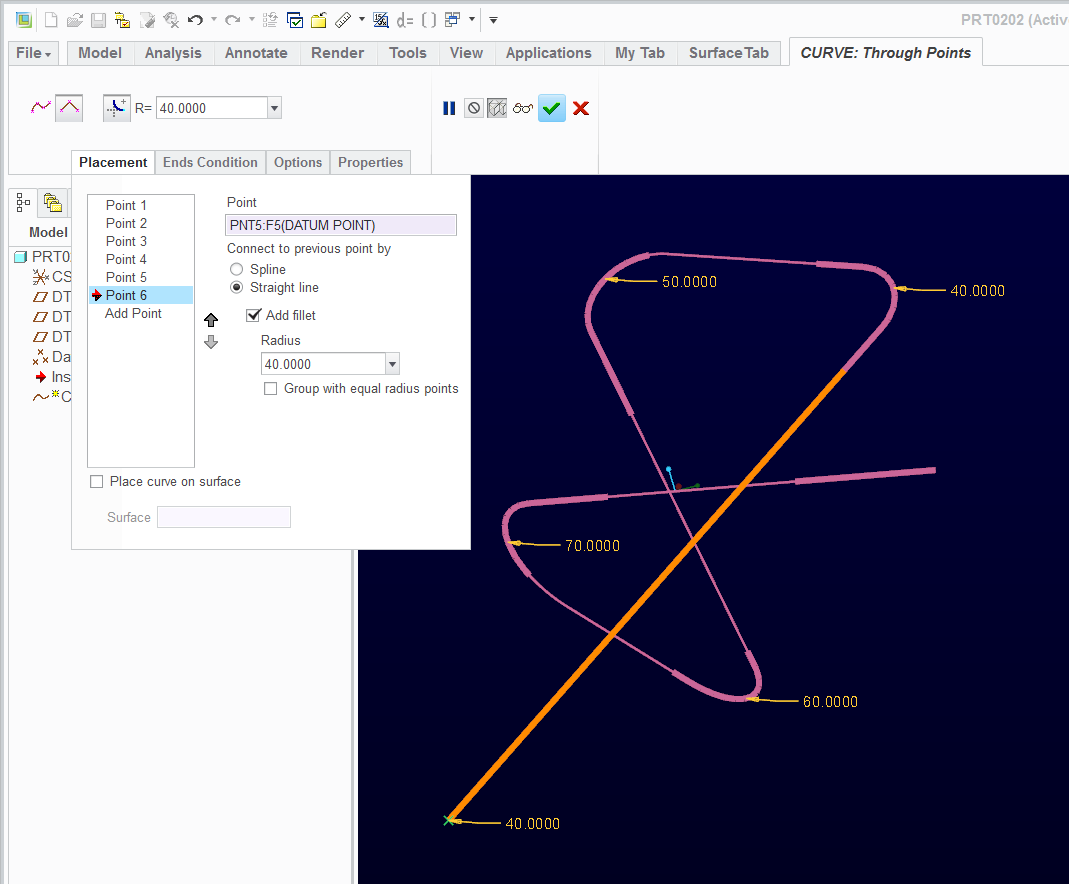

If all your points are showing up as a single point; right click on the point and choose the last option. This should make all the points individual and each fillet can be dimensioned. Careful thought, I just crashed Creo doing this.

T
TomD.inPDX17-Peridot
17-Peridot
August 19, 2013


It takes some work to disassociate the points from each other, but it works. To be clear, you right click on the single entry in the dialog to expand to individual points. Then you have to turn of the grouping for each point.
