Creating geometry from curve from cross section

  • August 15, 2018
  • 1 reply
  • 2201 views

I have been trying to make any kind of flat surface or extrusion from a cross section without success, I have an assembly and from that assembly I am creating the cross sections then the curves from them, i don't want to use a sketch because this curves can change drastically then the extrude starts to complain.

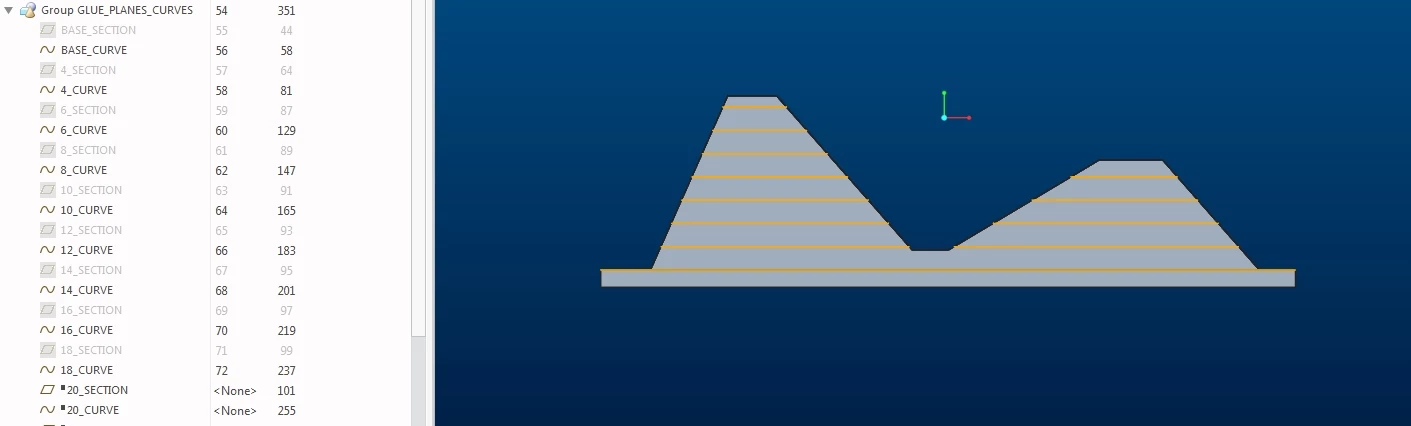

On the image below (front view) the two "hills" can change to be from one to ten, so one curve feature may have one to several closed loops.

From this loops i just need to have a solid extrude either 2 or 4 inches tall.



MATL-PREP (Active) - Creo Parametric.jpg

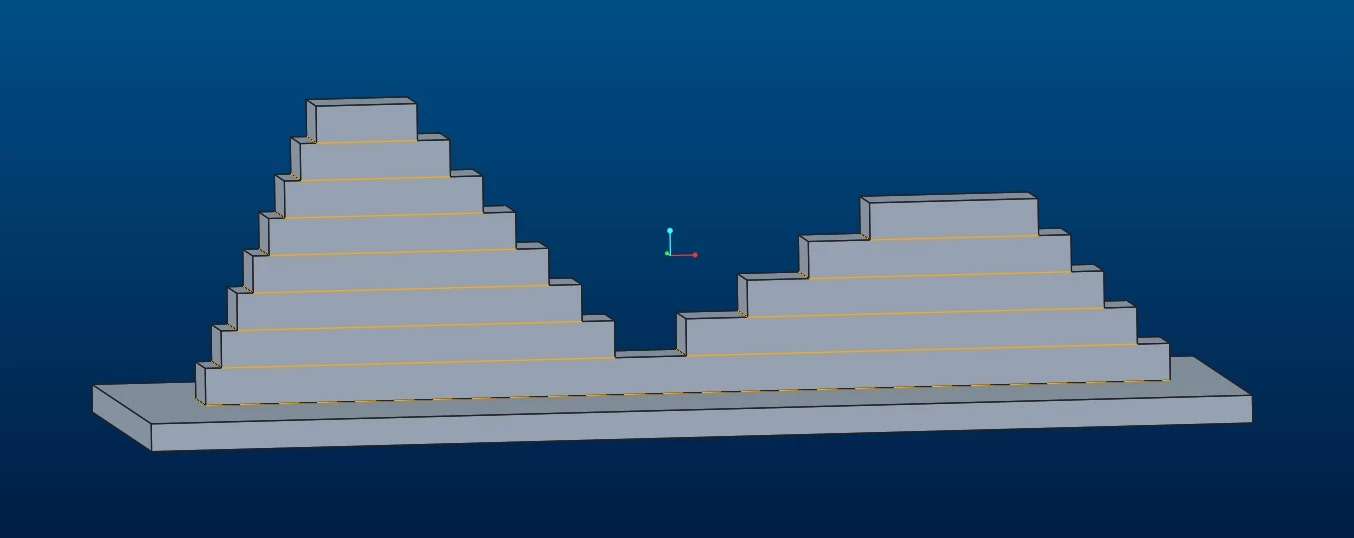

My goal is to have something like the image below and that can be updated without major issues

2018-08-15 07_53_57-TRC00000_AUTOCUTS (Active) - Creo Parametric.jpg

Any ideas??

Thanks!!

Osiel Gaona





1 reply

1-Visitor
September 5, 2018

Maybe a little late in the day for a solution to your problem but i thought i would have a go. Perhaps the attached model maybe of use to you.



Best regards

John

Osiel_G1-VisitorAuthor
1-Visitor
October 16, 2018

Thanks, I tried it but this is not what I was looking for, anyway management change their mind.
