Question

Creating hole in ellipse shape..

  • January 27, 2010
  • 11 replies
  • 3945 views

Hello Buddies

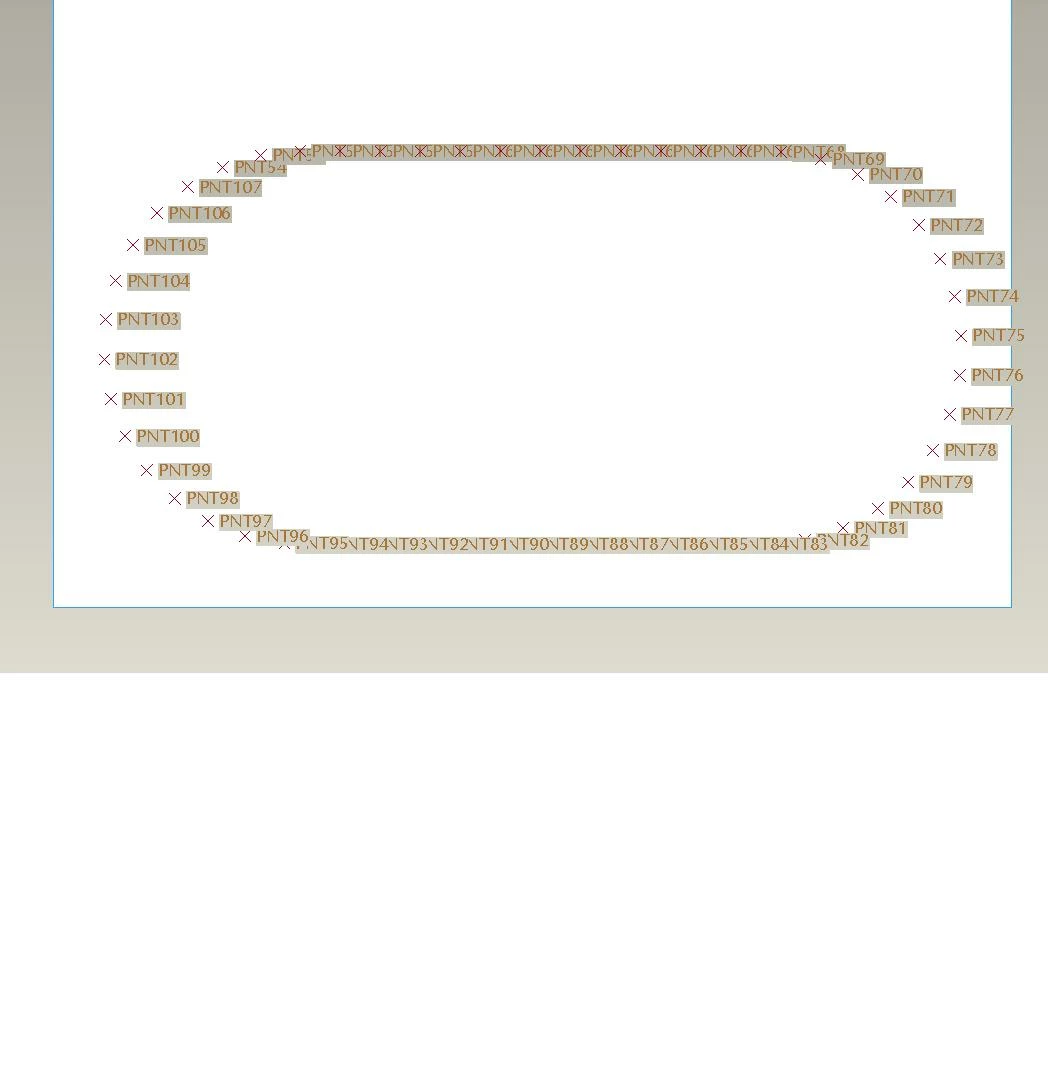

Kindly tell me how to creat holes in ellipse shape. I need to pattern the hole in ellipse shape. Please find the image file. Kindly reply its very urgent..

Suganthan Rajamanickam

Pro-e System Analyst

Trane Design Centre, India

Ingersoll Rand


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

11 replies

Show previous replies
P
ptc-5936191-Visitor
1-Visitor
January 27, 2010
BTW WF3.0 will also allow a pattern of holes etc. in a helix curve.
Construct the hole to be patterned, use a Dimensional pattern to offset
the holes X and Y then without leaving the pattern command, apply an
Axis pattern. Of course also in WF3.0 you can then pattern the pattern
to get all sorts of funky layouts. (It does get very memory intensive
and ultimately clunky though!)
