Creating intermittent fillet weld

  • December 21, 2010
  • 1 reply
  • 3488 views

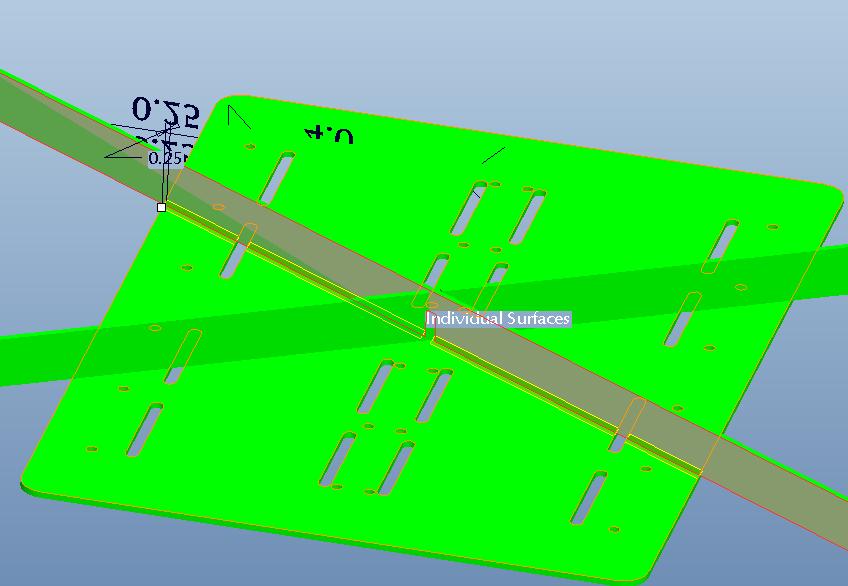

I'm fairly familiar with the welding functions but I have a piece that I'm trying to creat a intermittent fillet weld however the base or bottom wall has a couple of gaps in it. When I create the weld then normally you can click the intermittent weld feature and it will give you the options of length and spacing. How can I create this feature on this part? I attached a picture below.



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

C
chris51-Visitor
1-Visitor
December 23, 2010

Hi Christian

I allmost never use weldments. But I think you should try to create the gaps (openings, holes) after you made the weldments and if that dont works let them not cut in the weldments.

Regards

Chris

C
ChristianSmith1-VisitorAuthor
1-Visitor
December 23, 2010

I suppose that is one way of doing it, however I don't think PTC made their software to function in a roundabout way like that. I would assume there is a way to create this kind of a weld without having to jimmy rig it.
