Creo 2.0 - Q: Is the flat state easier to create in PTC Creo than in Wildfire 5?

Forum|Forum|13 years ago
April 5, 2013
14 replies
7100 views

This is a question answered by PTC from a webinar PTC Creo 2.0 in Action!

14. Q: Is the flat state easier to create in PTC Creo than in Wildfire 5?

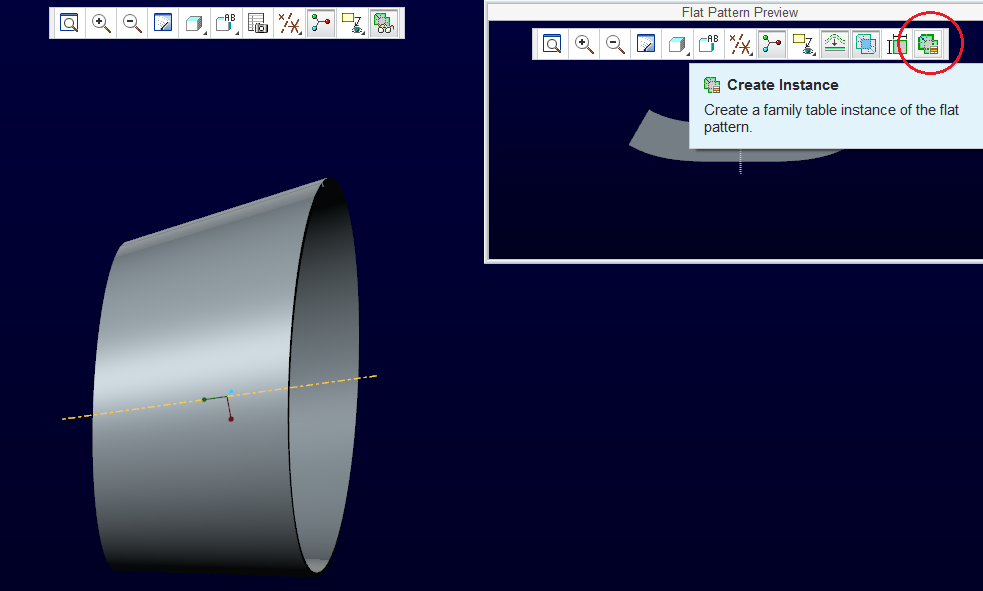

A: The unbend and flat pattern tools have been greatly improved to facilitate the creation of the flat states. Single button action to create a flat pattern family table instance or part simplified rep to show in detailing.

Is there really a single button action to create simplified rep of flat pattern which can be shown in drawing?

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

General

T

TomD.inPDX

17-Peridot

Yes there is.

M

magnus.salomons

Author

15-Moonstone

Ha ha....ok...can you elaborate your answer and tell me where to find it?

17-Peridot

14-Alexandrite

The answer is no. There is not a single buttone to do so without the creation of a mapkey. However one you create the simplified rep, it is done for all family table members.

The issue i see with this though is that your master rep is flat not formed. I have brought this up at the TC meetings a couple of times and presented on this in January to one of the project managers and the sheetmetal TC. Hopefully this is fixed sooner than later.

Andy

T

TomD.inPDX

17-Peridot

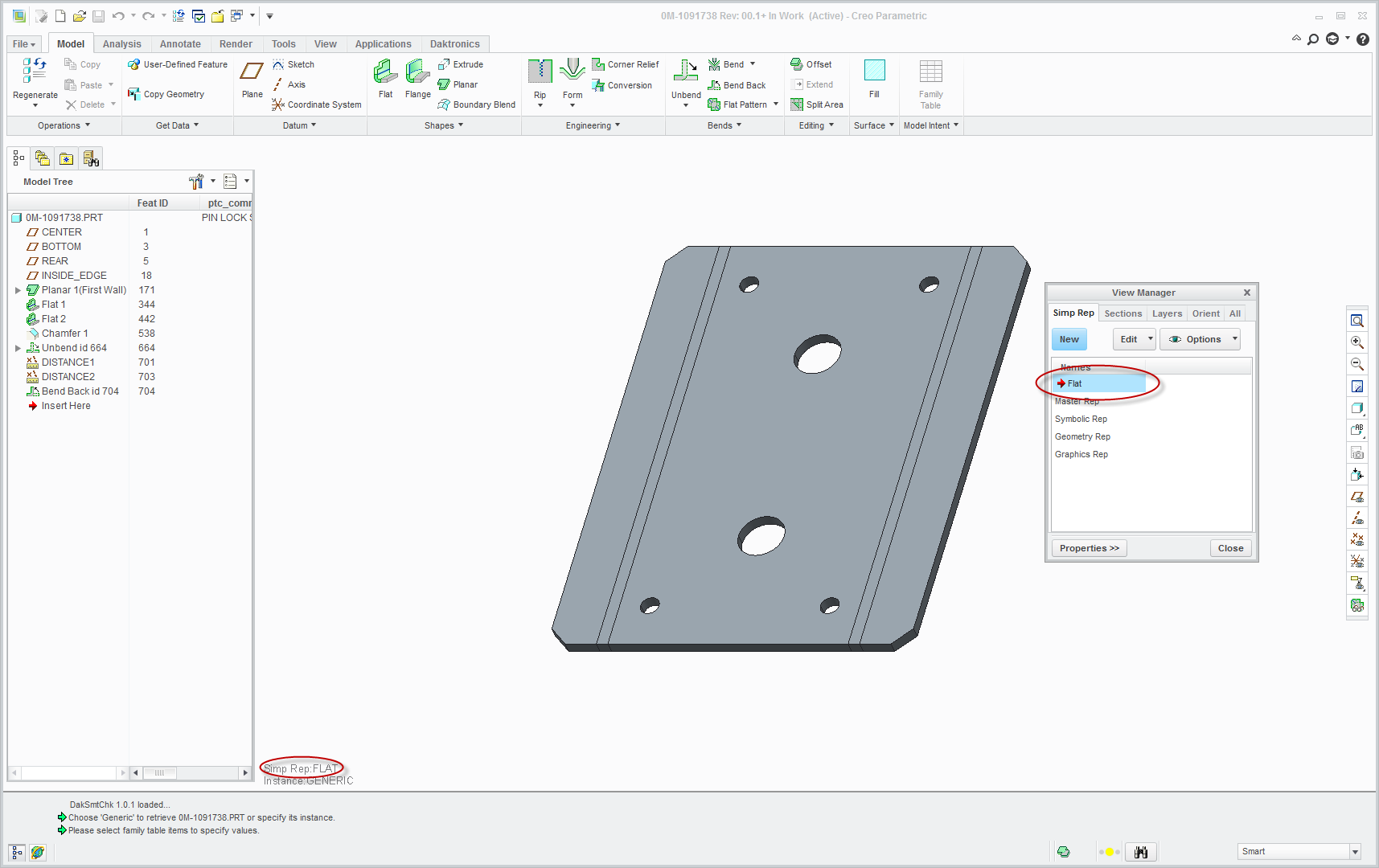

Maybe you can be more specific about "which" simplified rep you want. By default there are 4. When you create the family table instance, you also get 4 "simplified reps" in the View Manager. Technically, this answers your question but there is a family table involved.

I have done drawings using view states rather than simplified reps or family tables. If you avoid the "flat pattern" feature and use unbend and bend back features, you can easily make a view state with the flat pattern (unbend) view state and by suppressing the "bend back" feature in that state. This way, your default master model is in the bent, or as-used state.

I am always leery of "one button" claims as they are often not ideal. The method I describe here is actually quite simple if you have the discipline to make sure your model will support the unbend/bend-back features.

M

magnus.salomons

Author

15-Moonstone

Thanks Antonius, I was mostly questioning PTC representative reply stating that ther is a single button action to create a simplified rep. If it did exists it would be simpler for us to create flat states than using the unbend/bend back reps that we're using today. It seems to be similar to what you describe.

I'm not sure I follow you on View States vs Simplified Reps. As I understood it View States requires a Combined state which requires a Simplified Rep where the Bend back feature is excluded in a Simplified Rep.

A

AndyHermanson

14-Alexandrite

I should clarify. When i said the master is not formed, that is when used with the flat pattern feature and not the use of unbend and bend back features. When using the later it works fine.

Antonius, I believe the point Magnus is making is that he does not want a flat instance. You can then display the Flat Rep in the drawing.

T

TomD.inPDX

17-Peridot

I get what you are saying, Andrew.

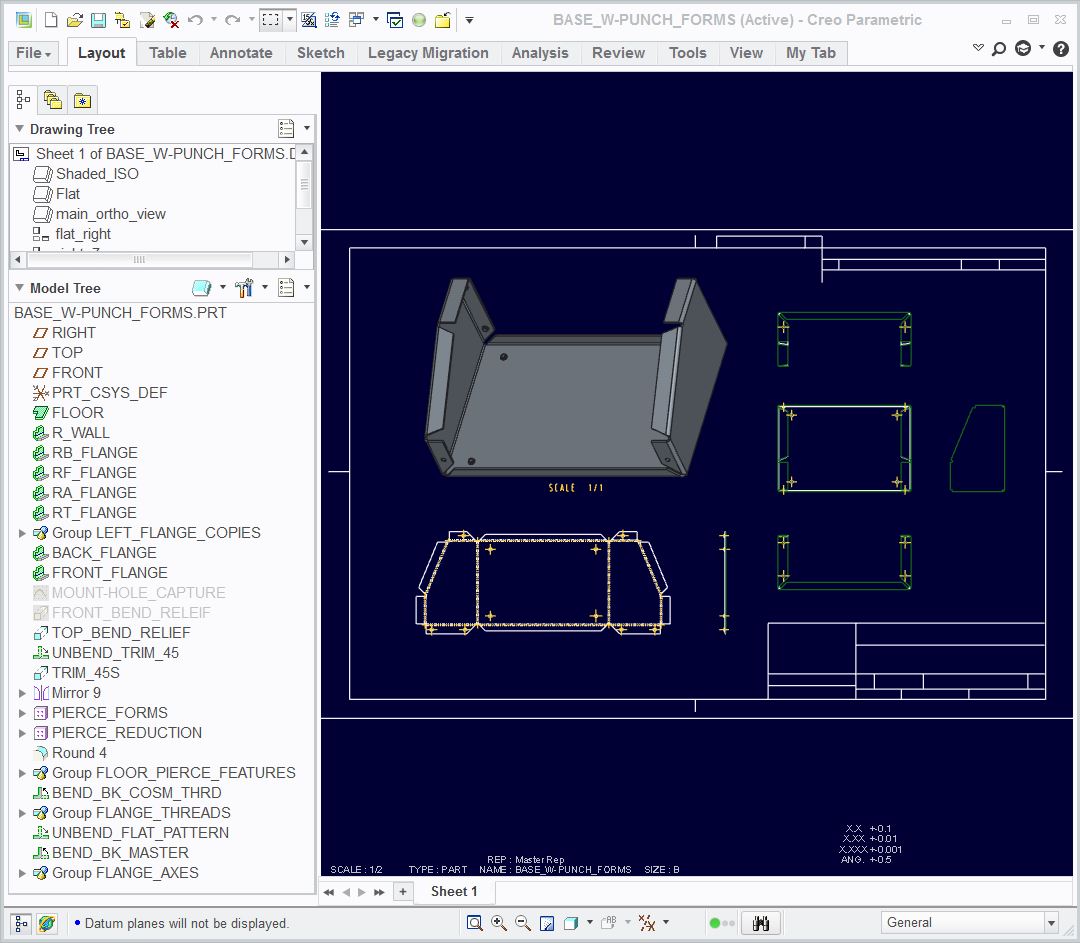

I don't know how it is in WF but I made a quick video of what I found interesting.

Create the simplified representation, then create the flat pattern feature. Done.

What it actually does is to suppress the flat pattern feature in the master rep. So even though it works in the session, it does -not- work after it is saved and removed from memory. The suppression state is not maintained with simplified reps!

Video Link : 3876

What I did after that was to add a bend back feature after the flat pattern. And if you actually -try- to do this, this too will fail because it maintains the flat pattern as the last feature. -BUT- ...if you add the bend back feature in a simplified rep, it adds the bend back feature -after- the flat pattern feature. THIS the system maintains after a save and erase in memory.

Video Link : 3877

I am not sure what happens to form features in this case but this is as far as I got. I am certain these videos highlight a couple of serious bugs that should be investigated. Andrew, do you sill have some contact information with the Sheetmetal TC committee to have them take a look at these vids?

The moral of this whole post is that the family table method is likely the method referred to when a "single button" process was suggested. I am not one to use family tables in practice (in 15 years, haven't yet!). I am also not certain that the trick to placing the bend back feature after the flat pattern feature will be stable in the long run as Creo gets updated.

T

TomD.inPDX

17-Peridot

If the suppressed features stayed with the simplified representations, things would be good. But if you have form features, they do not "bend back" after a default flat pattern. You can separate the flatten form features in a separate command by excluding them in the flat pattern creation, but the same problem exists - there is not an "unflattern form features" feature that can be "excluded" in the Simplified rep.

So the method described above also has a limitation that your "flat pattern" for the drawing must have the form features formed. Not that I see this as a problem but it is a limitation. Hiding edges in the drawing can make up for some of this limitation (re-strikes after bending, for instance). For 3D punch features created prior to bending, I have always felt should show up in the flat pattern. This is after all what you hand the brakeman, erm... person, right?

A

AndyHermanson

14-Alexandrite

I am on the TC so i will try and remeber to bring this up.
