Creo 3.0: how do you create an assembly BOM and export it into Excel?

  • August 13, 2015
  • 9 replies
  • 13642 views

The online video only show how to create a BOm in Creo 2. In Creo 3 clicking Bill Of Materials of gives a BOM report that I can only save as html...



Thanks.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

    9 replies

    M
    MartinHanak24-Ruby III
    24-Ruby III
    August 13, 2015

    Sebastian,

    Bill Of Materials output is also saved into text file. And it is possible to configure the contents of the output. See total bill of materials

    Therefore you can get text file, rename it to filename.csv and open in Excel.

    Martin Hanak

    S
    sfinke1-VisitorAuthor
    1-Visitor
    August 14, 2015

    Thanks Martin,

    I have a follow-up question: Can Creo export BOMs in spreadsheet and pdf format in its default state without the user having to jump through countless hoops? I have been using Creo for the last 6 months and I get the impression that nothing is very straightforward.

    I haven't tried your suggestion yet mainly because I believe that at its price point Creo should be able to create and export a bill of materials in two, maybe three mouse clicks in its default state. Should the process be customizable? Absolutely. However I shouldn't have to use what appear to be workarounds.

    Correct me if I'm wrong. I am happy to learn new methods but time is a factor.

    M
    MartinHanak24-Ruby III
    24-Ruby III
    August 14, 2015

    Sebastian,

    according to my knowledge, saving BOM to xls or pdf file directly is not implemented. Please do not ask me, why .

    You can contact PTC Support, if you have active Global Support.

    Martin Hanak

    M
    mbonka2-Explorer
    2-Explorer
    August 14, 2015

    Hello Sebastian,

    l prefer predefined BOM tables shared in our company ---> every user has same tables ---> set your pro_table_dir config option.

    Key factor in my BOM tables is column filled with a star " * " between each two columns that l want to separate in Excel.

    Reason why l use a star column:

    1) If text in a cell is too long and goes to next column, you will have divide a name into two cells.

    2) Star is a prohibitted sign in Creo parameters name and etc. ---> don´t have to care about bad separating

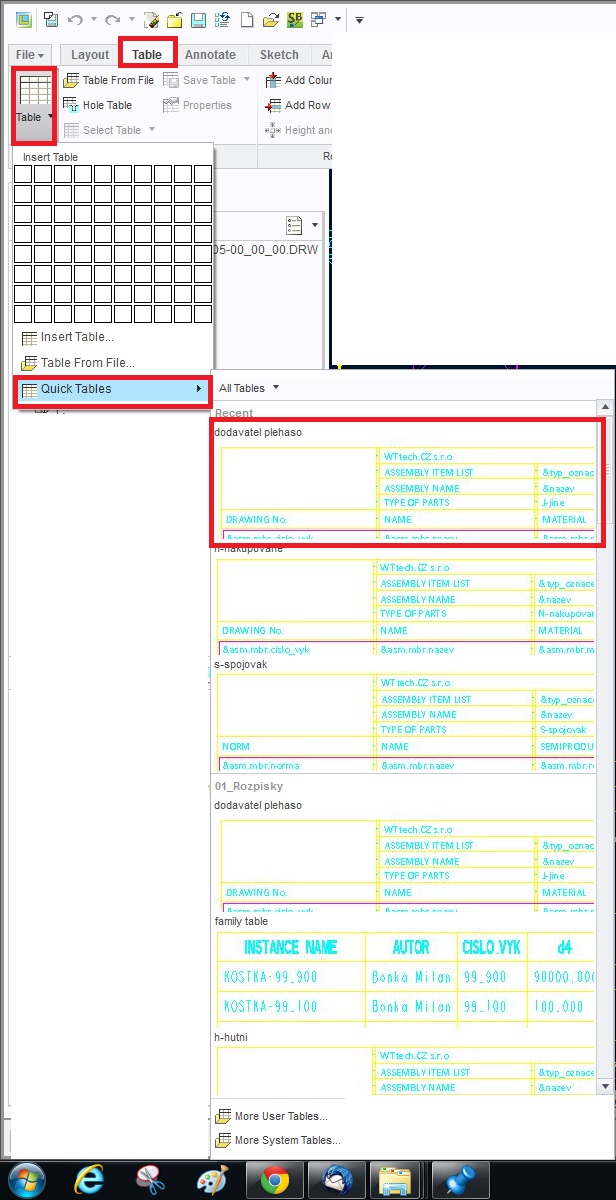

    l use BOM tables like following:

    - create assembly drawing

    - insert predefined BOM table (use desired simplified representation in this table)


    - select whole table ---> SAVE TABLE AS ---> *.TXT file

    Open TXT in Excel:

    - FILE - OPEN select desired *.TXT file

    - use custom column separator " * "

    - that´s all

    Hope it can helps you...

    Regards

    Milan

    W
    WayneSchrock14-Alexandrite
    14-Alexandrite
    August 14, 2015

    We have AAX (Advanced Assembly) license. It's not direct but there is a option to save table as CSV file. Once saved remove the version extension PTC adds, then file will open in Excel just fine.

    Good Luck

    Wayne

    M
    MartinHanak24-Ruby III
    24-Ruby III
    August 16, 2015

    Additional info:To be able to save table as CSV file, user has to create a drawing with repeat region.

    W
    WayneSchrock14-Alexandrite
    14-Alexandrite
    August 17, 2015

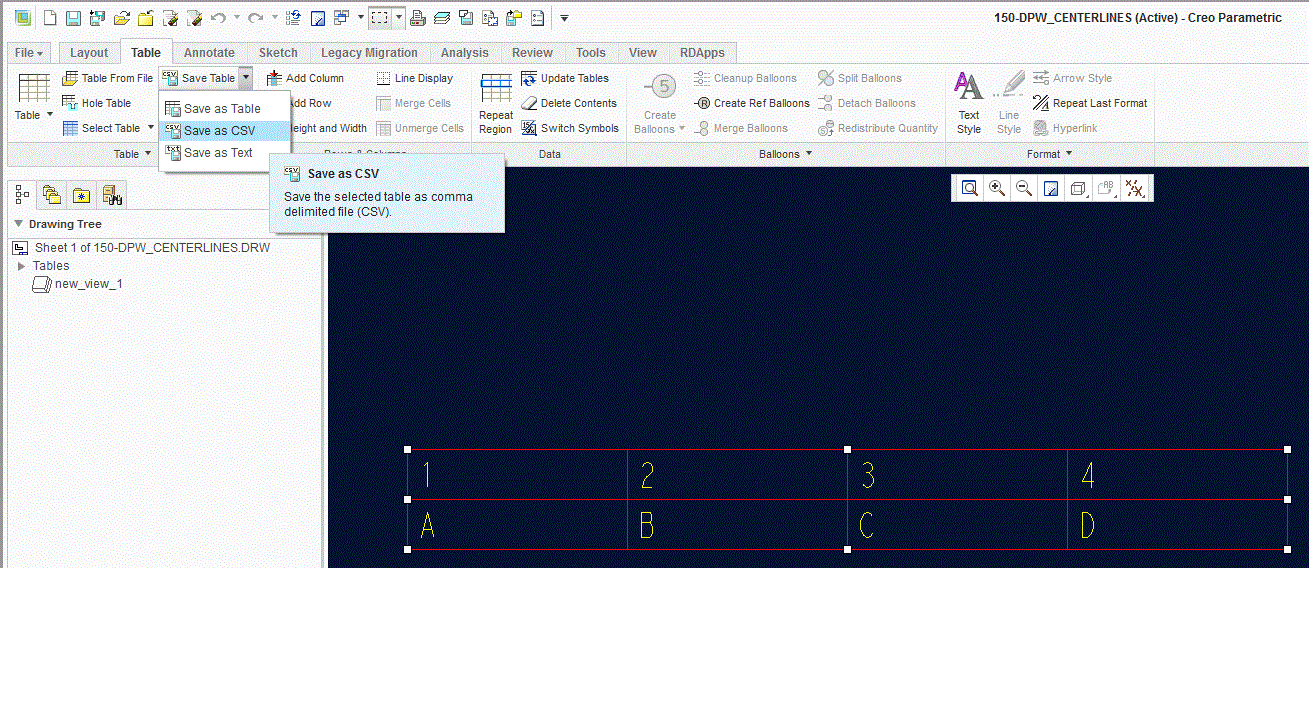

    FYI, I am using Creo 2.0 M170, I am able to export a table as a CSV file WITHOUT it being a repeat region.CSV_Table.gif

    P
    Posart4-Participant
    4-Participant
    August 17, 2015
    1. Creo 3 Parametric, assembly mode, crashed after click Bill of material.
      • Work around: Save the model tree. Prior to save the model tree, essential metadata can be included by modifying the tree columns.

    Work around in other mode:

    1. Drawing mode, export BOM to CSV file from repeat region. No issue. Technique, already mentions in this thread.
    2. Windchill, extract CAD BOM. No issue.

    I found myself using the method 1. (work around) and  B, because the material, vendor info, etc. can be included.


    Hope it helps.


    Peter Nguyen
