Customized Datum Reference Frame - GD&T Gui vs GD&T Syntax

  • October 12, 2018
  • 1 reply
  • 2854 views

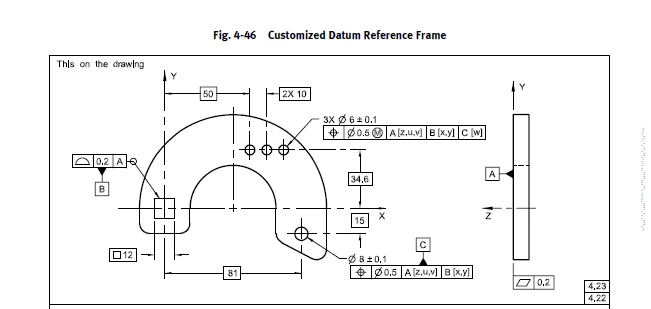

Does anyone know if there is a way to add this type (see pic) of annotation to a FCF without manually typing in the @[....@] syntax and building the fcf via note?

1 reply

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
October 18, 2018

@BrianBoman



Which release of Creo you are working with???

B
BrianBoman14-AlexandriteAuthor
14-Alexandrite
October 18, 2018

Creo 3.0 M160 - Is there another release that this is possible in? I know that the application of GDT has changed as of 4.0.

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
October 19, 2018

I am not sure if I am getting the query correctly. However you can use BOX, replacement of @[ and @] in note to create FCF.

e.g. Insert Note, Click Box, to start box > ABC > Click Box, to close box
