Cut-out Error in assembly

  • September 17, 2014
  • 1 reply
  • 1378 views

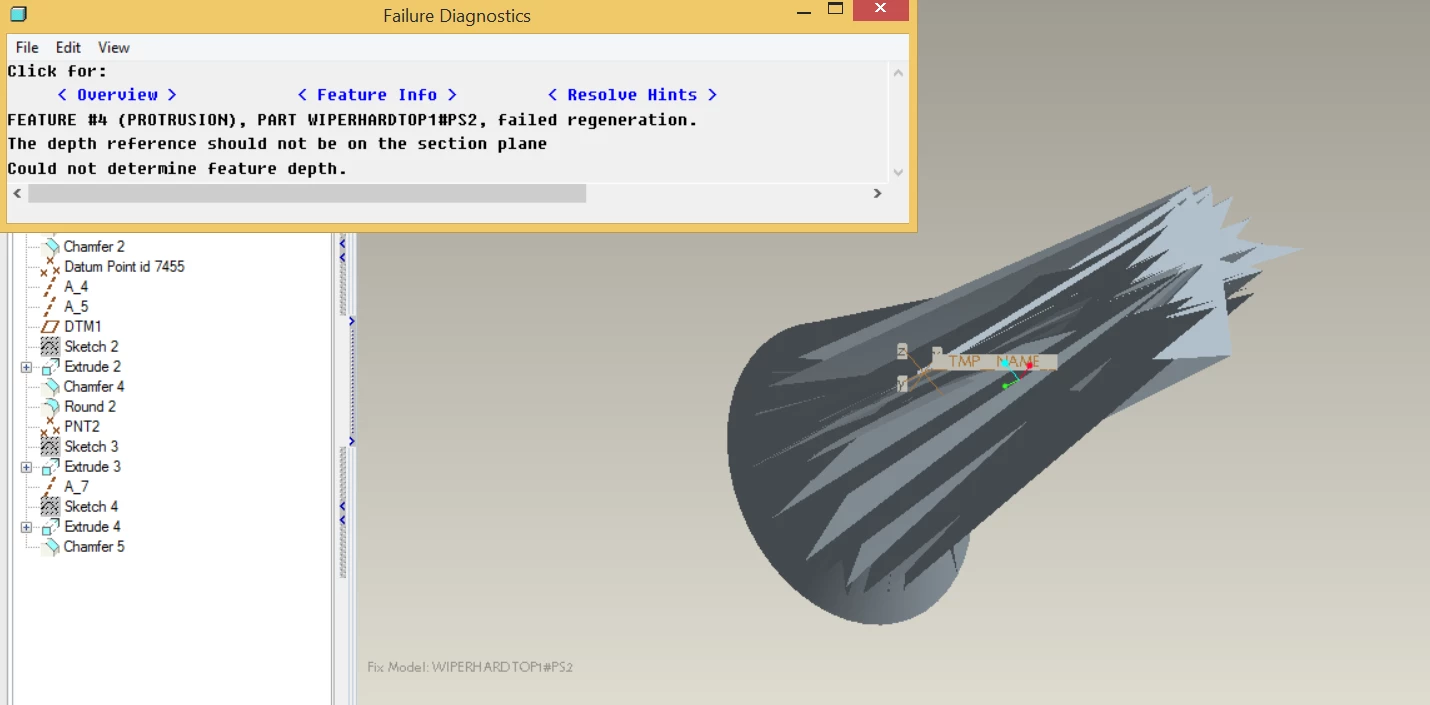

Not able to "cut-out" one part using the other. Someone please help! How to i eliminate this error?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

J
JADesignKilla1-Visitor
1-Visitor
October 10, 2014

I've been having the same problem too!

P
ptc-51159101-VisitorAuthor
1-Visitor
October 10, 2014

The issue with my cut out was that one part was in mmks and the other was in inch units even though they assembled well. What you can do to ensure this won't happen is

1. All parts are made in the same units

2. Check if the part is merge-able by performing the merge check under the analysis tab in the menu bar:

Menu bar->analysis->merge check (or something like that) don't have access to the software right now.

Of it doesn't give you any error, you will be able to cut out.. Or else, check the errors and correct them
