Cutout/Merge Operation in Creo Parametric 2.0

  • July 27, 2015
  • 2 replies
  • 3304 views

Hi all,

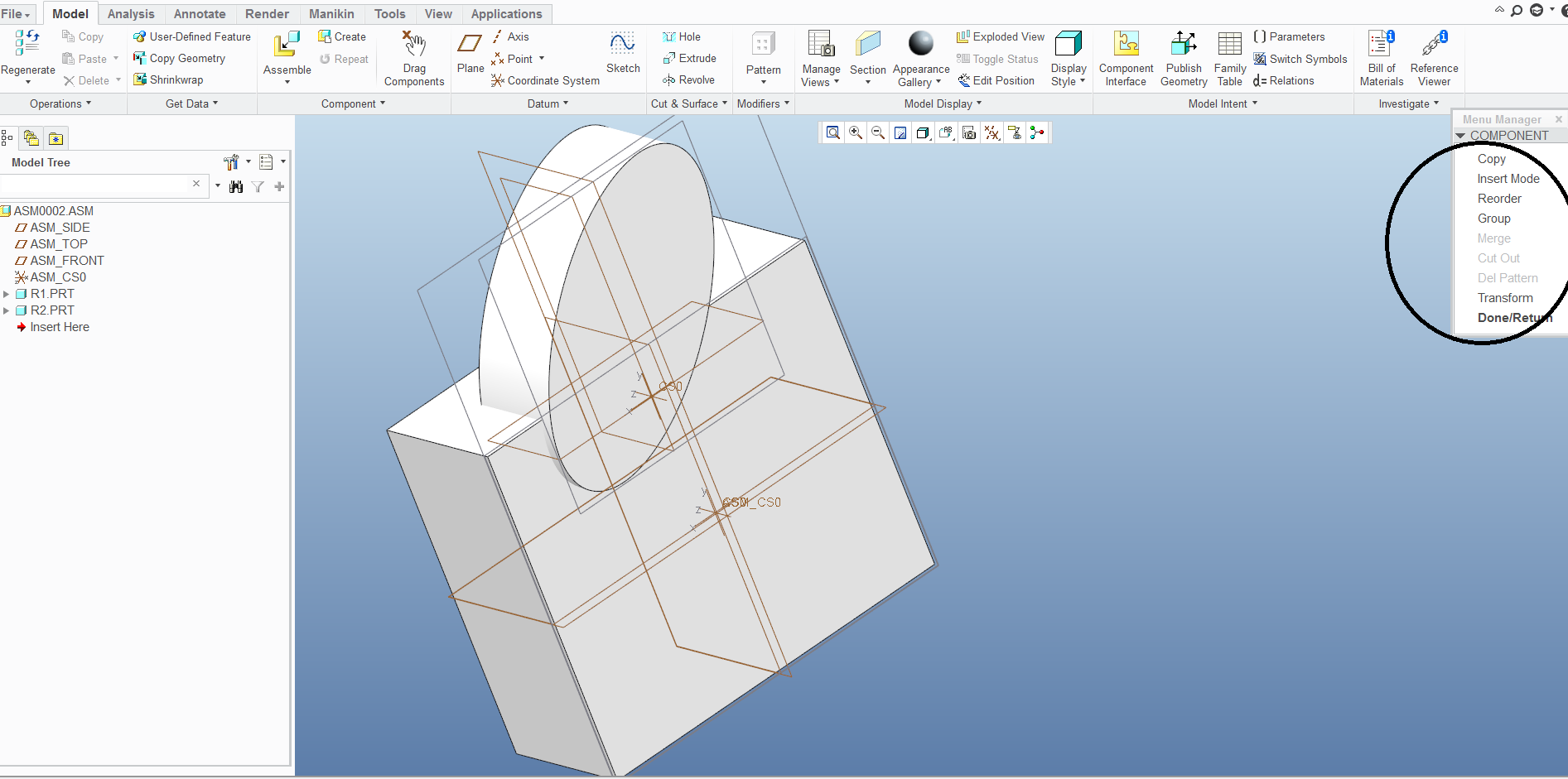

I trying to subtract two solids in assembly but the cutout option is not highlighting, I am attaching Picture for reference, any one please help me to sort out this issuecreo.PNG


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

M
mganzer1-Visitor
1-Visitor
July 27, 2015

I believe that requires the advanced assembly option (or whatever it's called these days). Do you have that?

M
MartinHanak24-Ruby III
24-Ruby III
July 27, 2015

Hi,

see https://support.ptc.com/appserver/cs/view/solution.jsp?n=CS67068

"Merge" and "Cut Out" menu entries, under "Component Operations" in Creo Parametric are available, when:

  • config.pro option default_ext_ref_scope is set to all or subassembly
    • To allow external references to components
  • License feature Pro/Assembly or Advanced_Assembly_Set is available
  • Components, used for cut out or merge, contain solid geometry

Martin Hanak
