Dealing With Intersections of an Inscribed Hexagon

  • November 16, 2017
  • 2 replies
  • 1866 views

Hey all,

For the longest time whenever I am modeling I run into this issue with intersection where I don't get a defined sketch area.

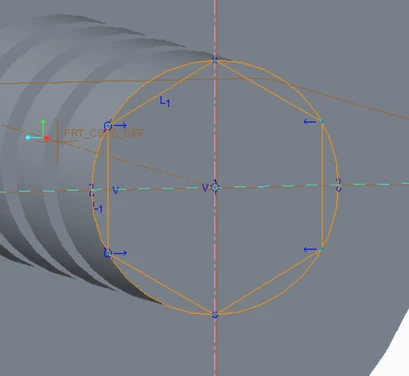

Capture 1.PNG

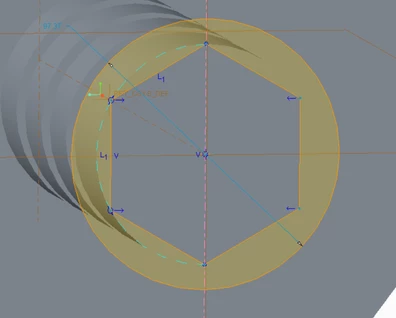

I want to cut away the outer edge to make a hexagon. What I usually do is make the circle biger than I actually want it.


It works fine and gives me what I want, but I run into this issue with many of my circle intersections. I assume I can't use this technique for every situation I run into.



Thanks









2 replies

D
dschenken1-Visitor
1-Visitor
November 16, 2017

It's been a interesting problem for me.



There are cases where you can use just the hexagon and cut to the outside, but under some conditions it fails and acts in unexpected ways.



The easiest certain alternative is to perform two cuts, with 3 non-touching segments in each sketch. Alternative planning is to make the part shorter and add the hexagon.

T
TomD.inPDX17-Peridot
17-Peridot
November 18, 2017

And sometimes precision helps... but this case may be unique since David is pretty up on this kind of shortcoming.



Can extrude/cut'ting one side and pattering it be a more reliable solution?



M
MartinHanak24-Ruby III
24-Ruby III
November 20, 2017

Hi,



the situation in your first section is forbidden. Hexagon must not touch circle (even it is split into 6 segments). In different words: section must not contain branching entities - only two solid entities can be attached to one vertex.
