Default modelisation planes

  • June 24, 2014
  • 1 reply
  • 3729 views

*My english is not really good. I'm gonna do my best so that you can understand my issue.

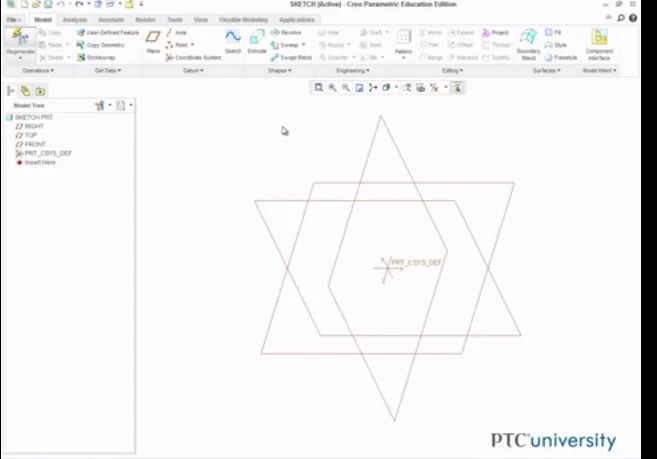

I just installed Creo 2.0 (student edition). When I model a part, I dont see any reference plane in the modelisation window. I see the ''RIght'', ''Top'' and ''Front'' plane in the model tree, but these are not visible in the mod window. I think if you look at the screen shots in attachment you should understand my issue.

Thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Mahesh_Sharma

Which graphics card do you have on machine?

----- Rename config.sup (if any) in <Creo 2.0 Install location>\Common Files\M110\text > launch Creo and check the datums.

If still fails, move to below steps.

Next step:

Remove the one in list.

1. Right Click on Creo 2.0 shortcut icon > Properties

2. Click in Target path and move cursor to extreme right (at the end of .....exe")

3. Add a space after .exe"

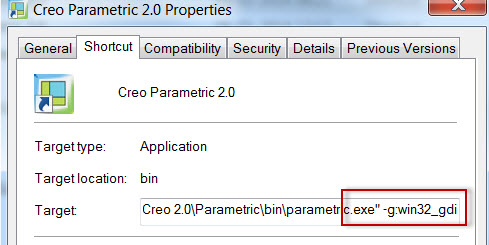

4. Type -g:win32_gdi > Apply > Ok


1 reply

A
AndyHermanson14-Alexandrite
14-Alexandrite
June 24, 2014

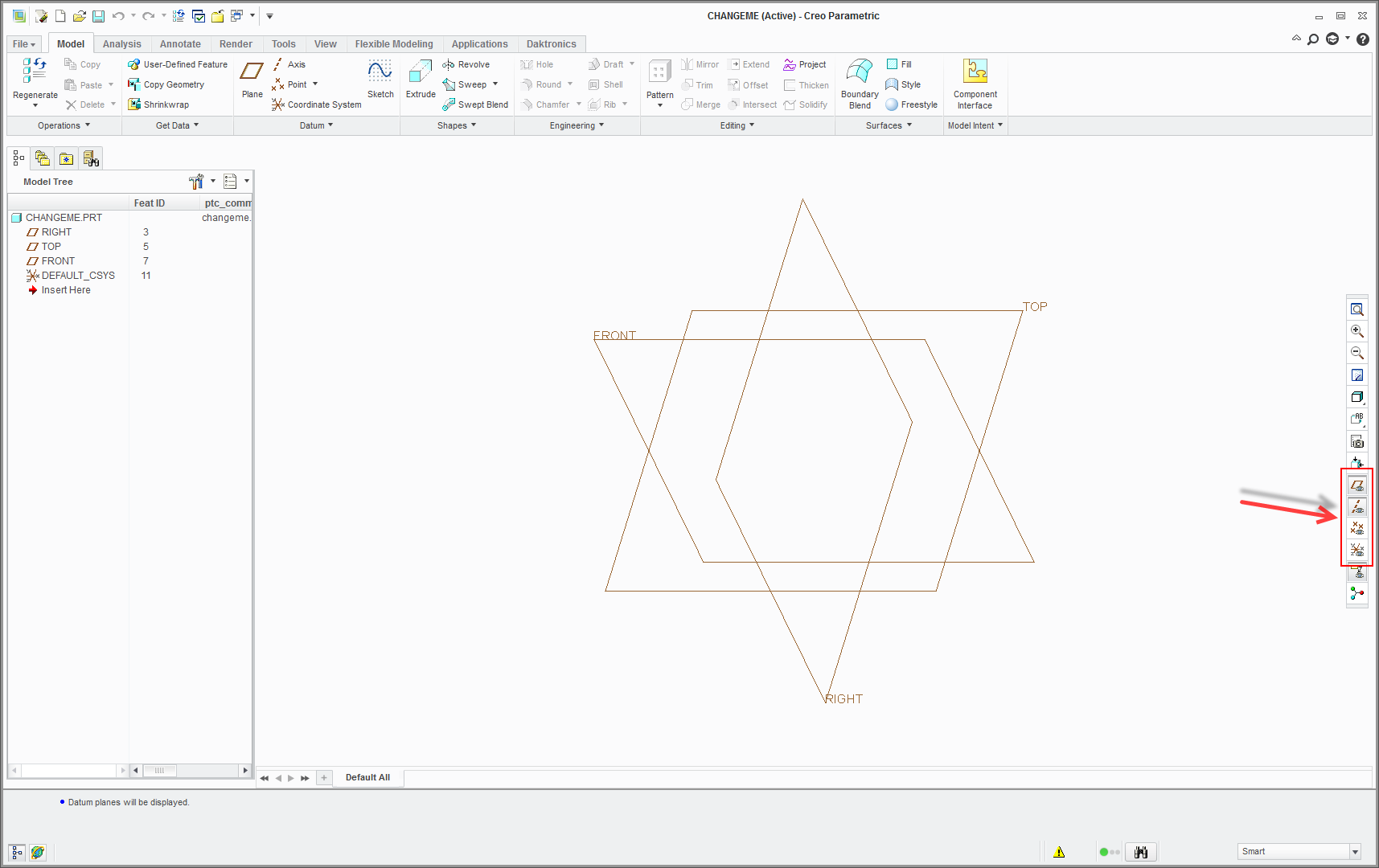

You need to turn on your datum display. Probably in the top center of the window in a fresh install.


G
gduval1-VisitorAuthor
1-Visitor
June 24, 2014

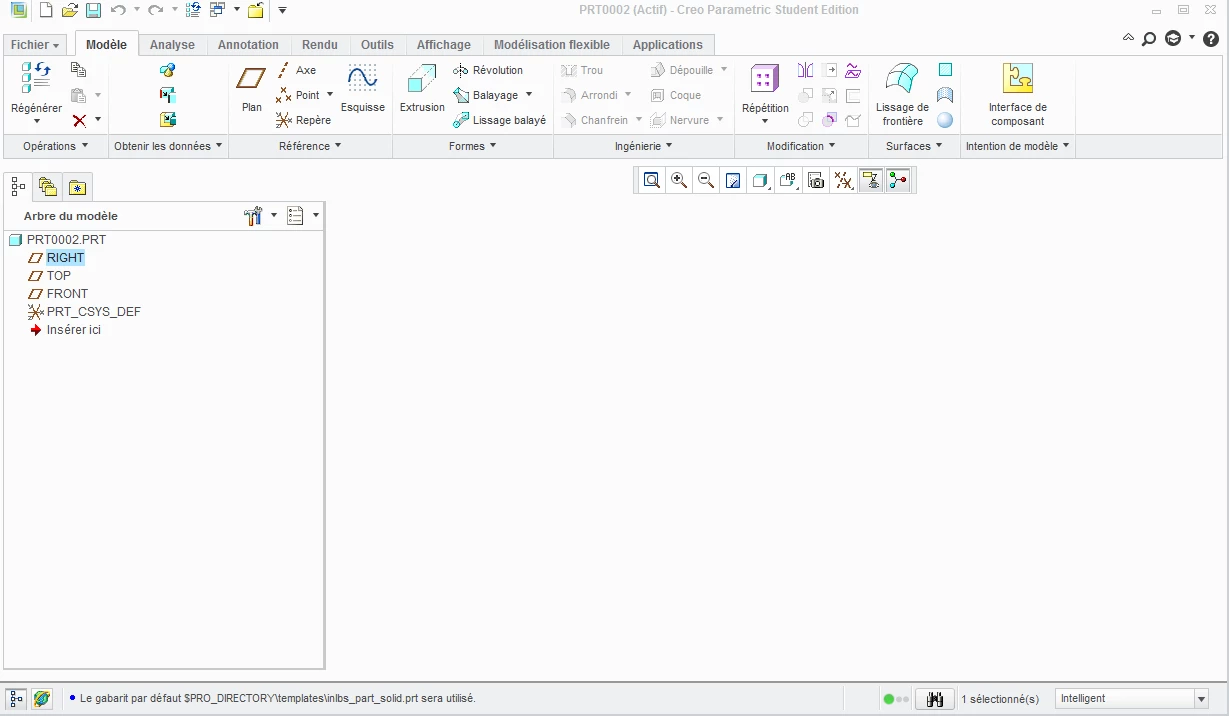

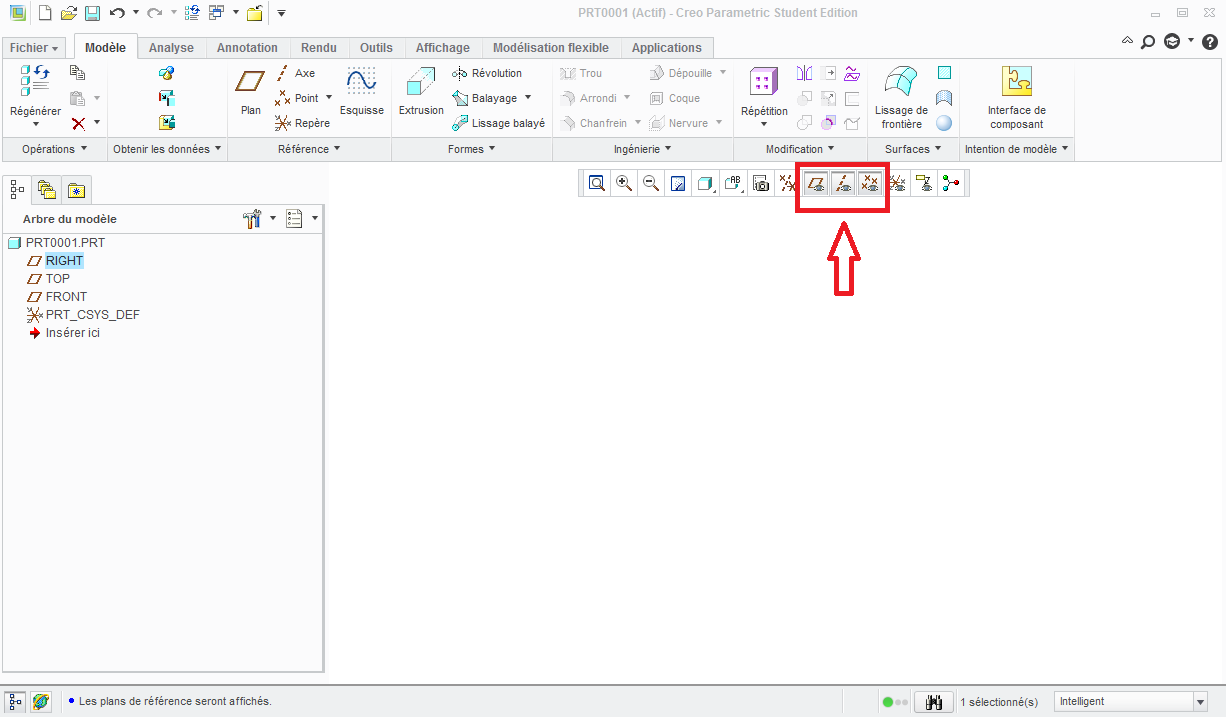

Thanks for trying to help, but as you can see, I still don't see the planes even though theses display buttons are turned on. What+I+see.PNG

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
June 24, 2014

Guillaume,

This seems to be due to graphics.

Add config option graphics win32_gdi in config.pro and relaunch.

You can directly add that in config.pro available in <Creo 2.0 install>\Common files\<datecode>\text\
