different appearance in the same surface

  • April 29, 2015
  • 4 replies
  • 2565 views

Hello to everyone:

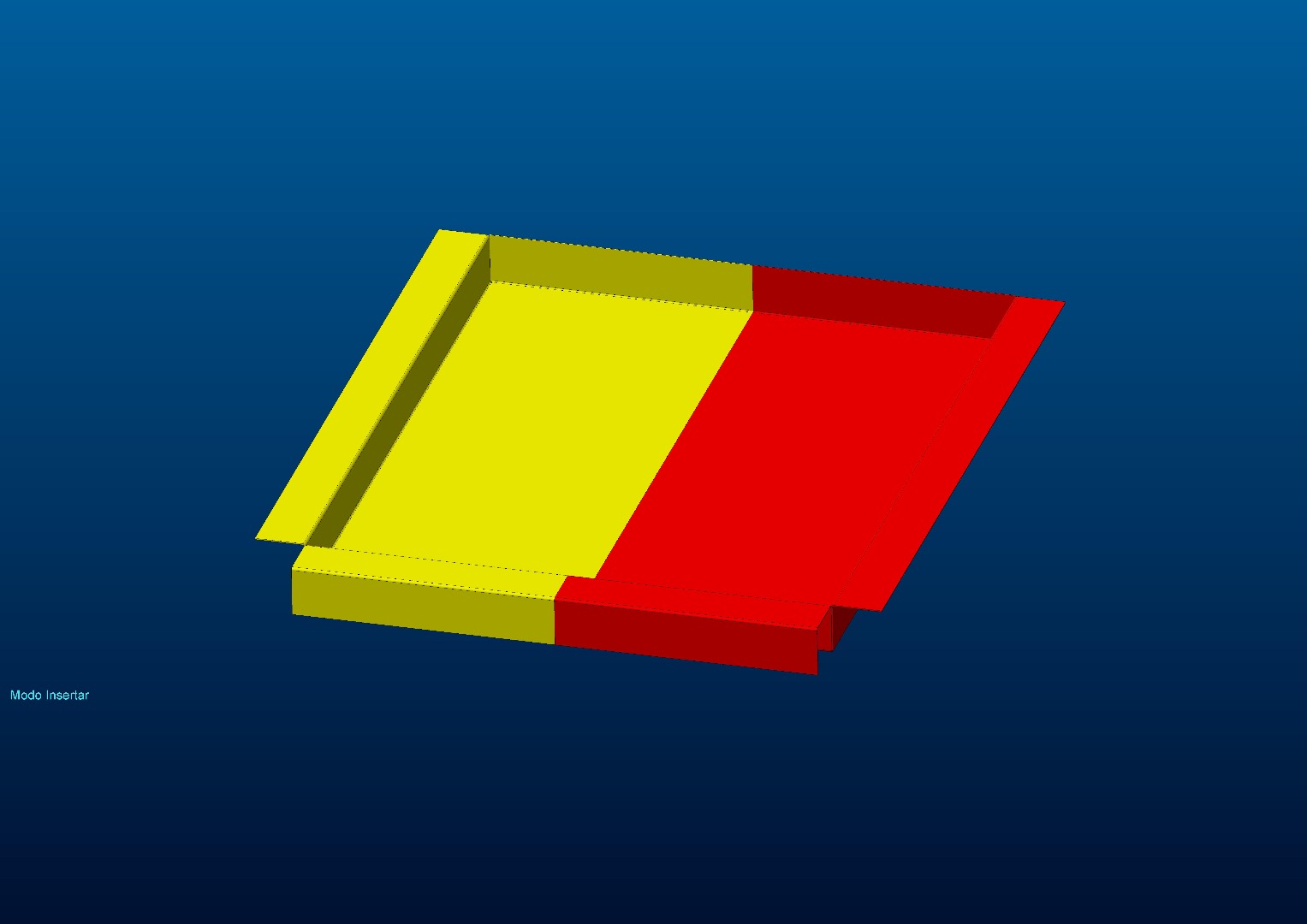

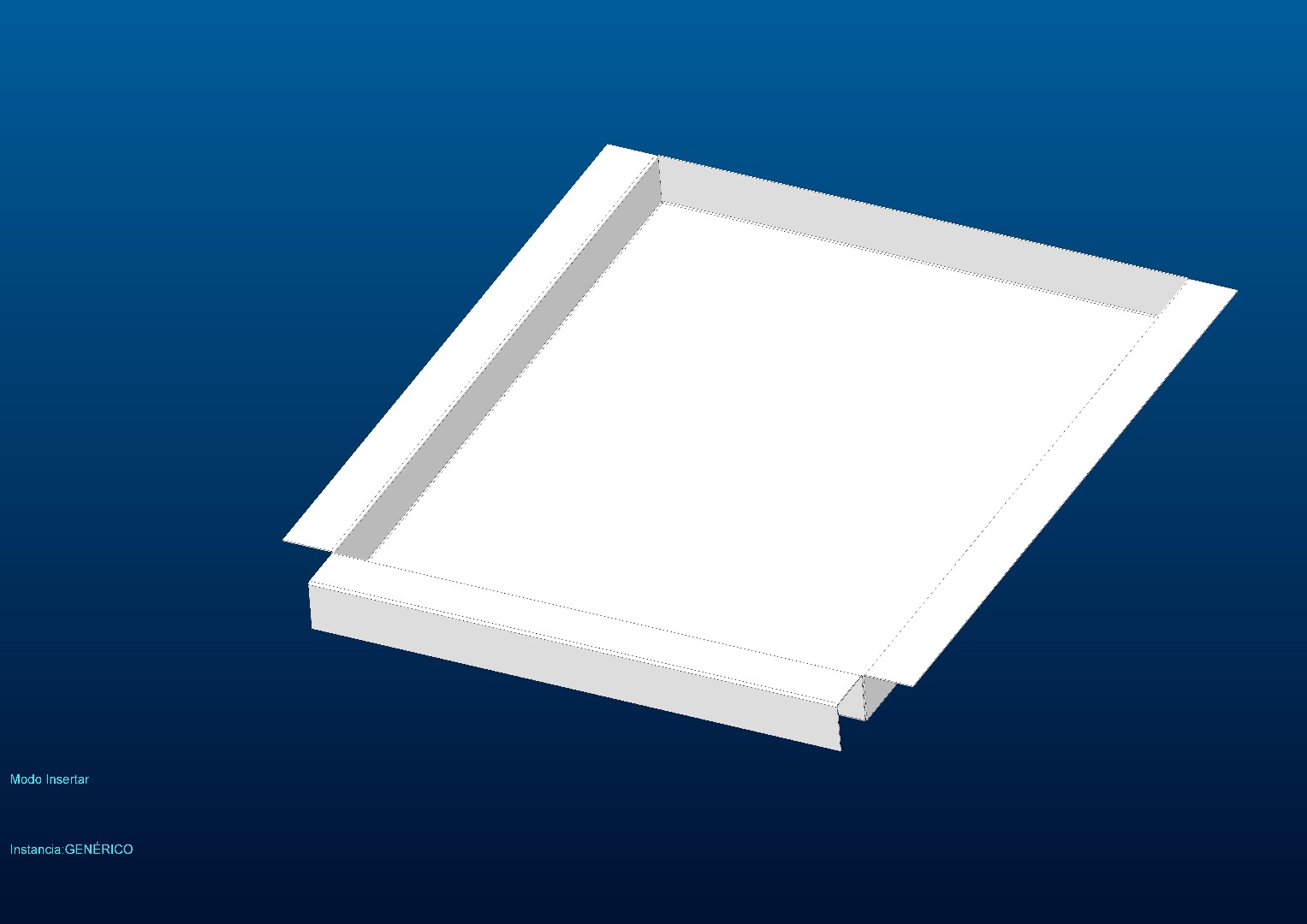

I would like to see the same surface with different colors. Can I do this?

Attached is an example




Thanks



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by TomU

Nope. They have to be two separate, disconnected surfaces.

4 replies

TomU23-Emerald IVAnswer
23-Emerald IV
April 29, 2015

Nope. They have to be two separate, disconnected surfaces.

KenFarley
KenFarley21-Topaz II
21-Topaz II
April 29, 2015

I've never done anything with them, but would it be possible to make a texture and apply it to the surface? Like the wood patterns, but with just two colors? I don't know enough about this stuff to know the mechanics of it, but it might be a method?

kdirth
kdirth21-Topaz I
21-Topaz I
April 29, 2015

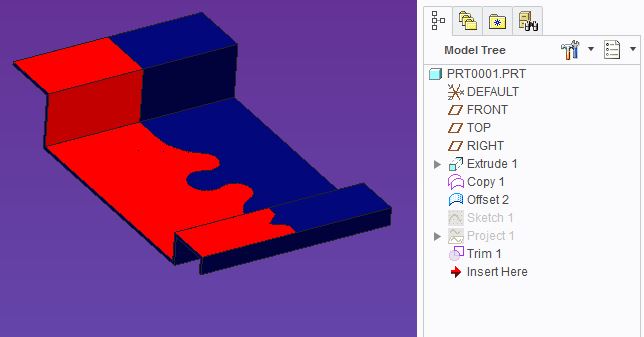

You can copy the surface you want a different color, offset a surface by a small amount (0.01), trim that surface to the shape you want and color it.


Where there is a will there is a way.

There is always more to learn.
mganzer2-Explorer
2-Explorer
April 29, 2015

Man this Jive interface is killing me. Cut & paste below.

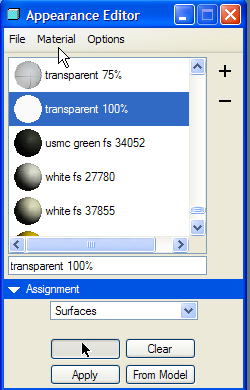

Step 1: Clear the Solid surface

Go to the Colors

Pick a 100% transparent color

Set category to surfaces

Pick on the surface of the model that will be split

Hit the Apply button

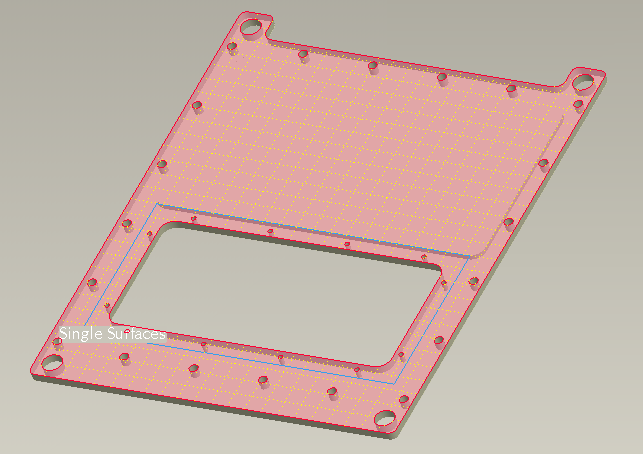

Step 2: Recreate Surfaces

The original surface is now transparent, the model is still solid and the top surface is still there.

Set the query filter to geometry

Pick on the “missing” surface

Use Edit > Copy (CTRL+C)

Use Edit > Paste (CTRL+C)

This initiates the surface copy dashboard

Use green check to finish new surface


Set the query filter to quilts

Pick on the “new” surface

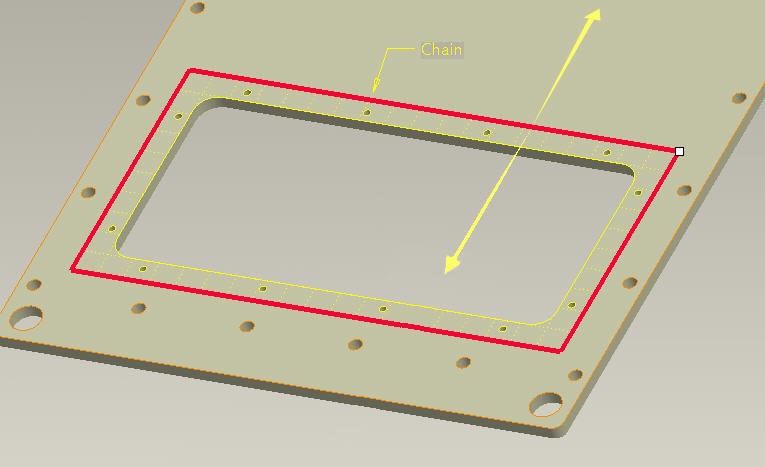

Use Edit > Trim

Create/use a sketch that is the color border

Yellow arrow and hatching indicate portion to keep

Use the switch direction button until arrow points both ways

Use green check to finish new surface trim

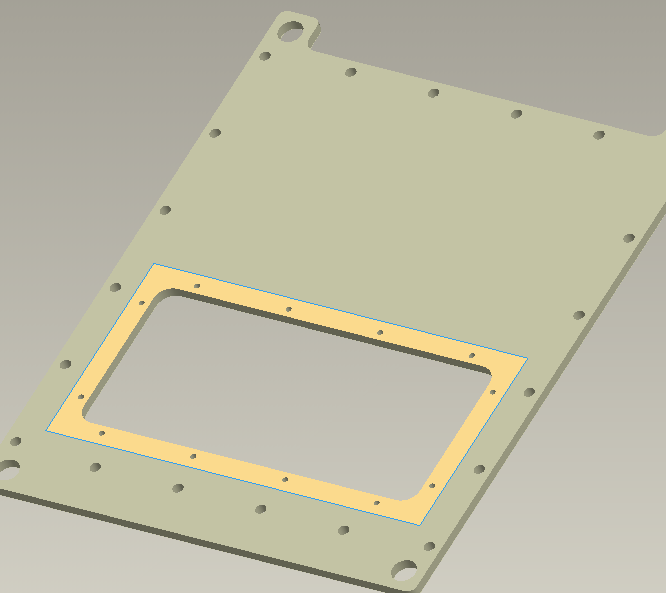

Step 3: Color the New Surfaces

Go to the Colors

Pick the desired color

Set category to surfaces

Pick on the desired half of the split surface

Pick “Both” prompt

Hit the Apply button

Repeat step. The only difference is to pick the other half of the trim surface

You may or may not need to change color of new surface

If it is the same as the original model color
