Difficulty with FTC Kit of Parts and Creo

  • October 21, 2011
  • 1 reply
  • 1585 views

I mentor a FIRST FTC team. I am a beginner when it comes to Creo. We are using Creo Elements/Pro School edition on a Windows 7 laptop. I have downloaded the FTC 2011 KOP.

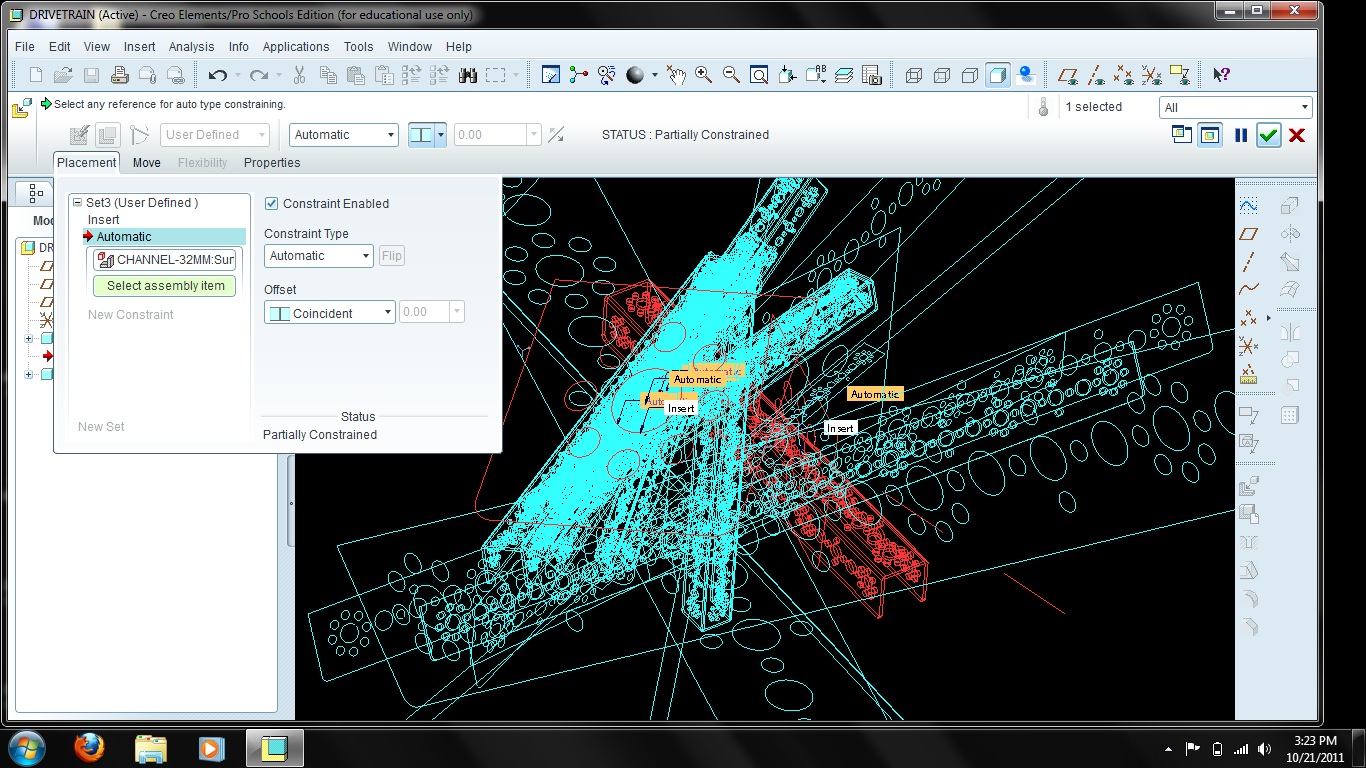

When I try to mate to elements of the kit of parts, I select the Placement tab, and attempt to select a face of one part to establish a constraint with another element. As soon as I select the face, my screen becomes filled with lines (see attached picture) and I am unable to continue. Any suggestions? I didn't have the problem when I used ProE on the same computer.

Thanks,

Lance

FTC Example.jpg


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by lschroeder

My High School age son had the answer for me:

To fix this go "Tools" => "Options". A window will open with various settings. Type "graphics" into the search bar at the bottom. Change the value from "openGL" to "win32_gdi". Click "Apply/Change". Search for "use_software_openGL". Change it to "yes". Click "Apply/Change".

Click "OK". Restart Creo. Problem should be fixed.

It worked!

1 reply

lschroeder1-VisitorAuthorAnswer
1-Visitor
October 26, 2011

My High School age son had the answer for me:

To fix this go "Tools" => "Options". A window will open with various settings. Type "graphics" into the search bar at the bottom. Change the value from "openGL" to "win32_gdi". Click "Apply/Change". Search for "use_software_openGL". Change it to "yes". Click "Apply/Change".

Click "OK". Restart Creo. Problem should be fixed.

It worked!
