Dim Properties, Subfix text doesn't sit below dimension line (Creo Elements/Direct 19)

  • August 25, 2017
  • 1 reply
  • 3096 views

I'm currently experiencing a problem where the requirement is for subfix texts to rest below the dimension line, but can't seem to adjust any of the settings to provide it.



If I modify the dimension settings to sit "on" the dimension line, the dimension line extension does not draw in between the dimension and the subfix, and I can't seem to find anywhere to make that an option.



The only choice is to make the dimension text sit "above" the line, but then there's too many stacked elements above the line and I don't want that either.



Any suggestions?





1 reply

apapadopoulos-2
apapadopoulos-210-Marble
10-Marble
August 28, 2017

Hello, Do you mean suffix and not subfix?

Suffix is additional text after the dimension (@D) so this cannot be changed.

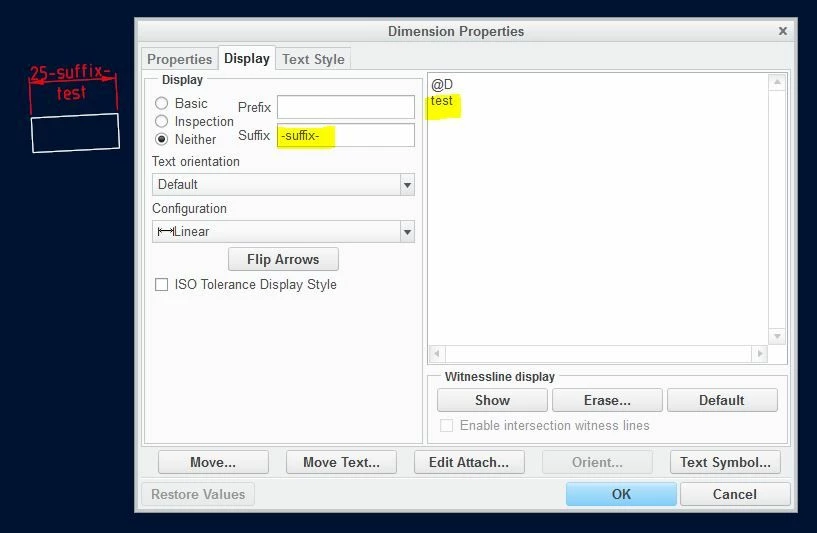

If you want text below dimension just type below the dimension  see bellow for a <test> example.

Is this what you were looking for?




I'm the self-inflicted mind detonator, yeah I'm the one infected, twisted animator.
R
RobertWK1-VisitorAuthor
1-Visitor
August 28, 2017

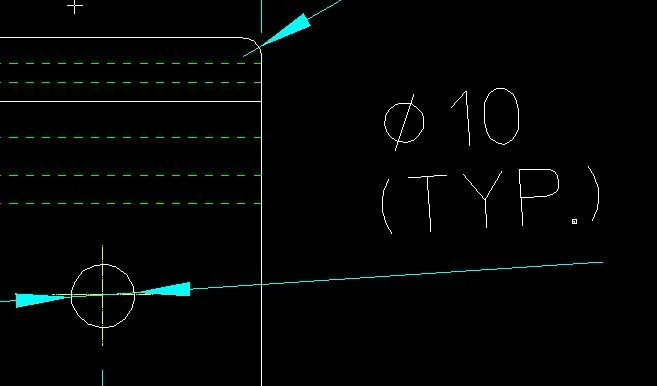

 I definitely mean subfix. The first picture is the type of dimension I am getting that I can't seem to change.

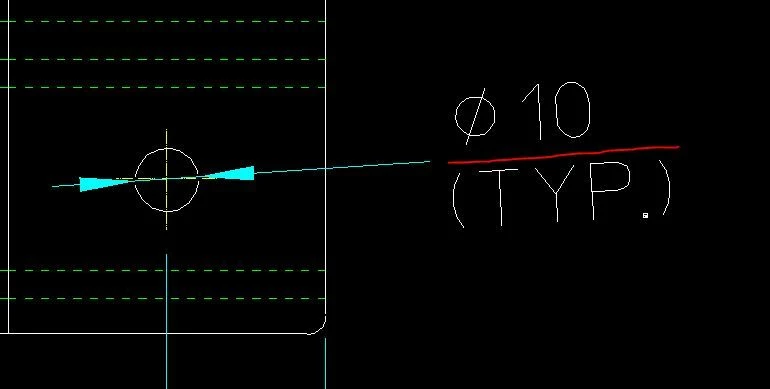

The second picture is the desired effect (edited to include what we want):

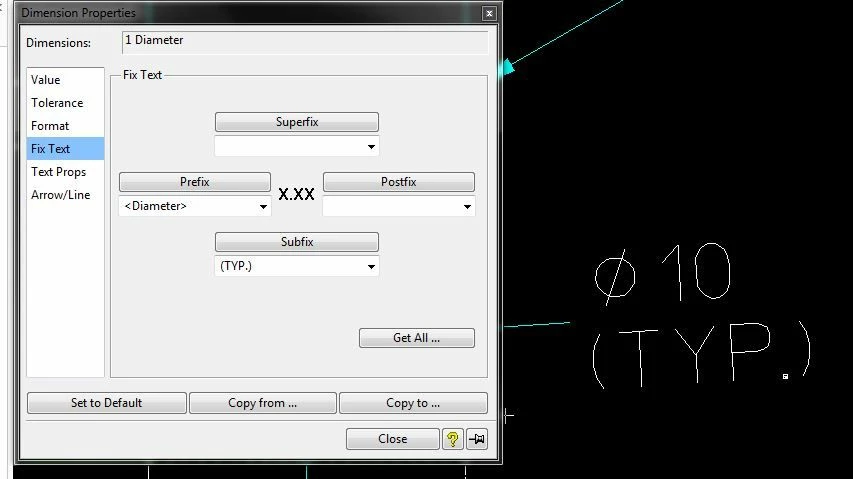

The third picture is the options I have available to me.






I've checked all my settings and there is no combination that I can seemingly make possible to acheive picture #2.





apapadopoulos-2
apapadopoulos-210-Marble
10-Marble
August 30, 2017

Sorry your question is for Creo Direct, I though you were talking about the Creo Parametric.

I don't know about the Direct. But if there are no options on the Arrow/Line section check the configurations.

You should have option to setup things like ISO or ANSI standard, dimension line, witness line etc.

I'm the self-inflicted mind detonator, yeah I'm the one infected, twisted animator.
