Dimensioning multiple x-section views

  • January 14, 2014
  • 1 reply
  • 766 views

Hi everybody

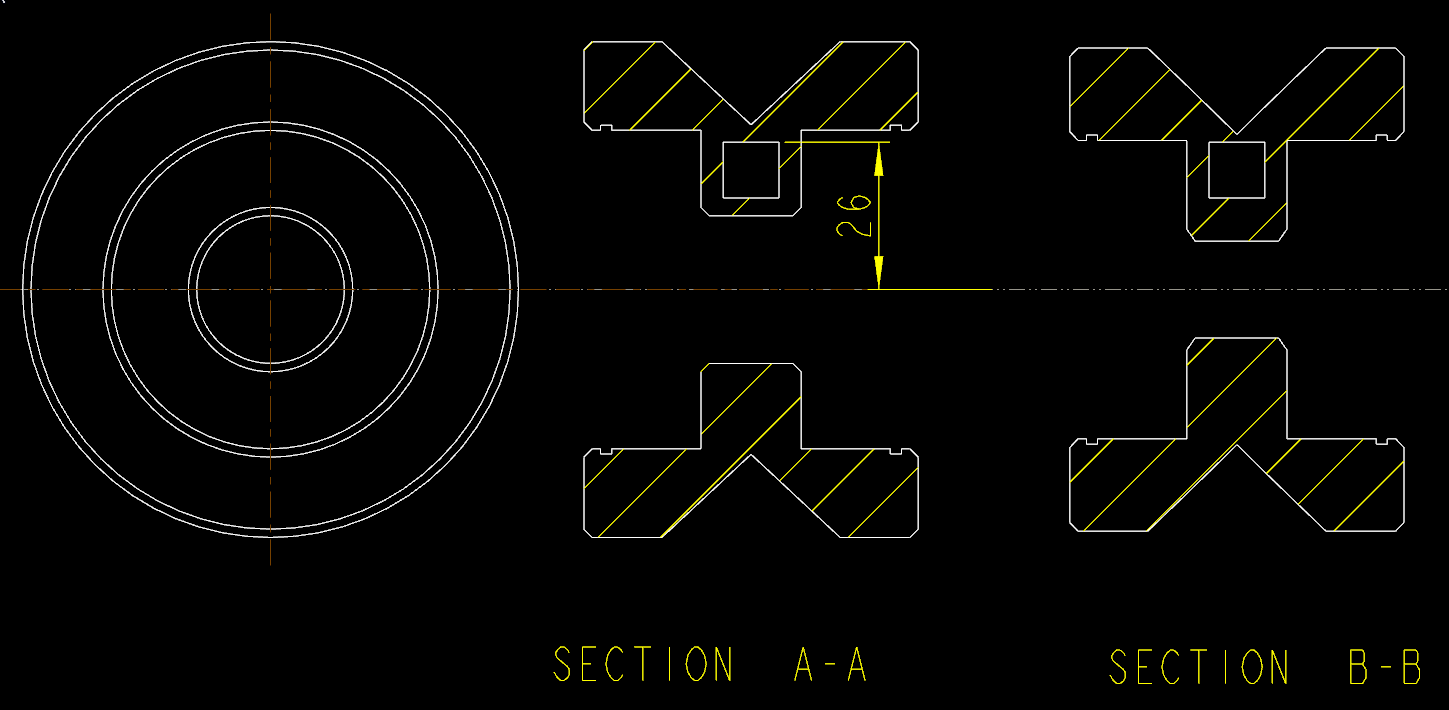

I have drawing view with multiple X-sections...see attached image. They were created using the pattern functionality.


On section A-A I have created (not shown) dimension 26. I would like to create the same dimension on section B-B but Creo doesn't allow me to do it...I get the message "The specified dimension could not be created. Try again"


Anybody know of any reason why I can't create this same dimension across multiple X-sections?


Regards,


Neal


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

nhanratty1-VisitorAuthor
1-Visitor
January 14, 2014

Ok I have found a solution through a bit of fiddling around...The 26 dimension shown on the original image was going from a construction line created on the drawing up to an edge/surface on the model.


I used the relate to view command to relate the construction line to each of the section views. This allowed me create the dimension on each of the section views.


If anybody has an alternative method or knows why standard dimensioning doesn't work I would love to hear it.


Thanks for your time.


Regards


Neal
