Display mass units in BOM report

  • July 24, 2015
  • 1 reply
  • 2883 views

Hi all,

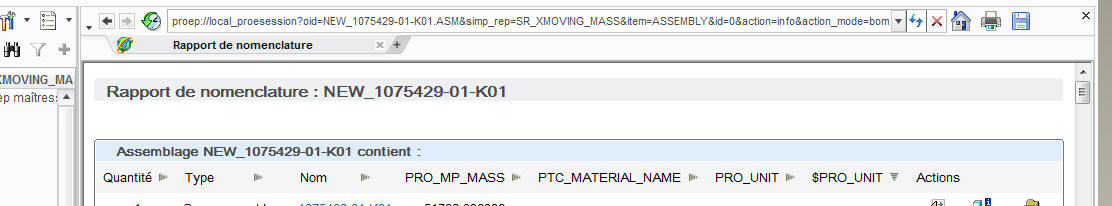

I want to show mass units in a BOM report like this one :




I've tried many parameters, but none are accessible in this report.

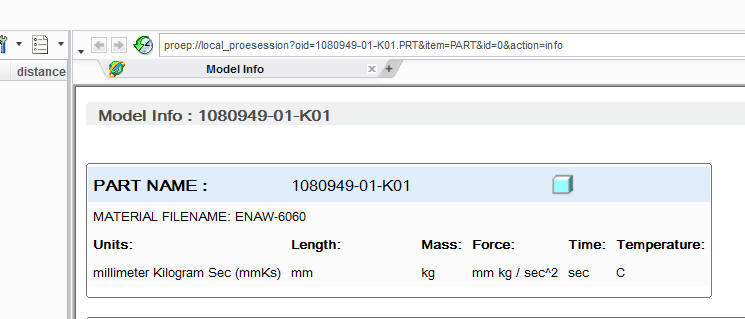

But I think it must be available somehow because it is displayed in the "model info" report :




I know I could do it by adding user defined parameters and relations, but I am using a lot of old parts that can't be modified.



Any hint ?



Thanky you !



Eric


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

Chris3
Chris321-Topaz I
21-Topaz I
July 24, 2015

Units are not parameters that are available. They only way to automate adding them as parameters to all of your models is to use Model Check. Even then if you go that approach, it is not parametric.

E
esivignon1-VisitorAuthor
1-Visitor
July 24, 2015

Hi Christopher, thank you for the answer.

I don't get how you can automatize this with ModelCheck ?

I found this thread that explains how to do it with relations, but this is nothing automatic and I would need to update a feww hundreds part ...

Pro/E Model unit parameter

Thanks !

Eric

Chris3
Chris321-Topaz I
21-Topaz I
July 24, 2015

Eric, to be honest I have not done a lot of work with ModelCheck. The few times I have played with it I have found it to be archaic and frustrating to use. I do know that it can be configured to do what you are asking however. I have read about other people doing it. Below is an email I received in 2008. Attached is the corresponding file that is referenced.
