Display Sheetmetal information

  • June 1, 2017
  • 7 replies
  • 3065 views

Hi all,

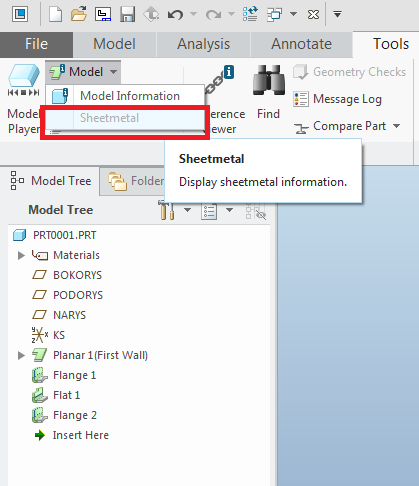

How can i use displaying of sheetmetal information. I am in sheetmetal mode but this feature is not accessable.


Thanks,

Michal

7 replies

StephenW
StephenW23-Emerald III
23-Emerald III
June 1, 2017

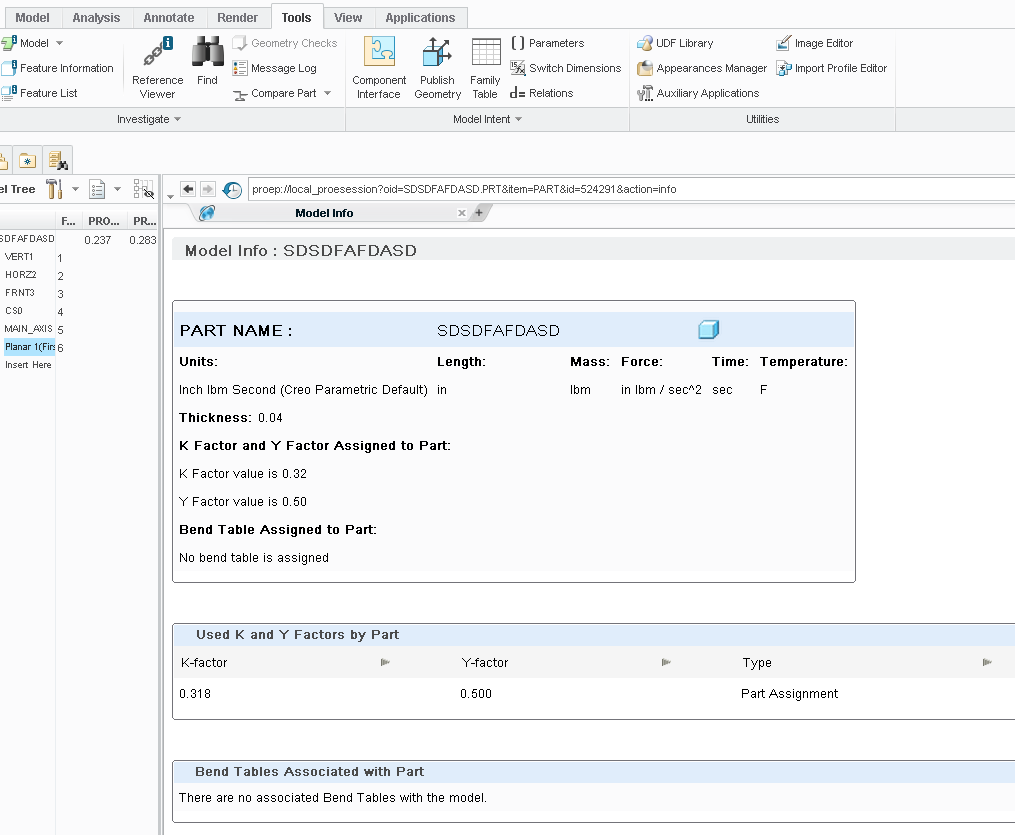

The formatting on that ICON is bad. Use the model information and it gives you the sheetmetal information.

M
mhucik1-VisitorAuthor
1-Visitor
June 6, 2017

Hi Stephen,

Thank you for you reply, I know about model information, but i need to know about sheetmetal information.

But one more time thank you very much.

B
BenLoosli23-Emerald III
23-Emerald III
June 6, 2017

What kind of information are you looking for? Blank size? Bend angles? flange lengths?

Also, what version of Creo are you using?

T
tgriffin1-Visitor
1-Visitor
June 6, 2017

Change the config option info_output_format to text.  Then you'll be able to select bend reports, radii reports, or design check.

M
mhucik1-VisitorAuthor
1-Visitor
June 8, 2017

Hi Tyler

Thank you for reply, yes it works. Maybe you know some config option to show not just non 90 degree walls and bends. Now it show me just non 90 degree bends.

T
tgriffin1-Visitor
1-Visitor
June 8, 2017

You could go to Bends>Bend Order to create a bend table, so that you could see all the bends.
