Does GD&T feature control frame alignment differ from Wildfire 3 to 4?
- August 3, 2012
- 0 replies
- 806 views
Pro Gurus:
After re-modeling and re-detailing a part using Wildfire 4 build M160, I
notice that the GD&T feature control frame no longer align to the left as

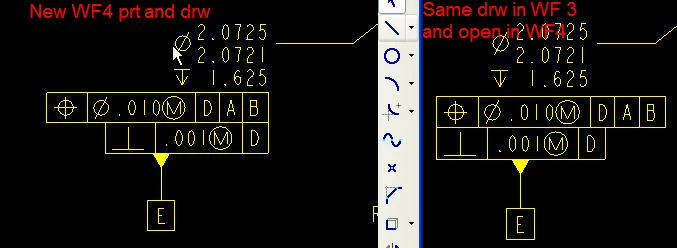

my original Wildfire 3 build M250 drawing (see attached picture). Both
ProE session pull the same dtl file at the same loading point. I compare
side by side the dtl file in WF3 and WF4 and don't see a difference between
the two. I also look at the text alignment on both drawing and they both
are set to "Default". If the WF3 drawing is open in WF4 the GD&T stay
align to the left. What am I missing?
Any help would be greatly appreciated.
Frank
This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
