Doesn't chamfered cone shape unbend support yet?

19 replies
5607 views
Translate All

1. make a cone

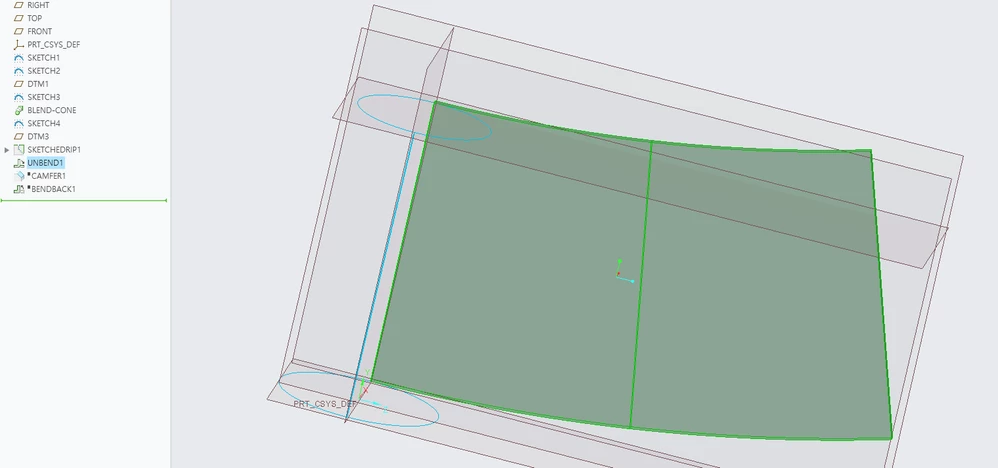

2. sketched rip and chamfer

3. failed bend back

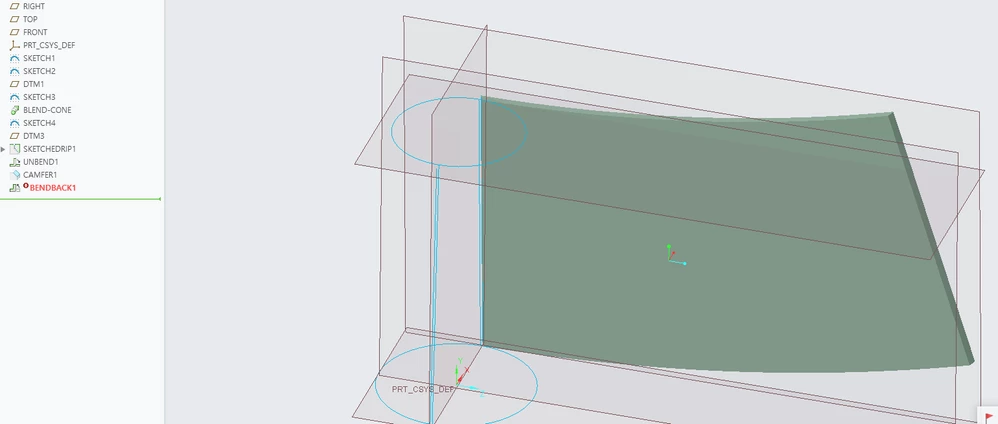

As a result, I want to bend the chamfered sheet metal to make a cone. Is there any other way other than this?

General

M

MartinHanakAnswer

24-Ruby III

Hi,

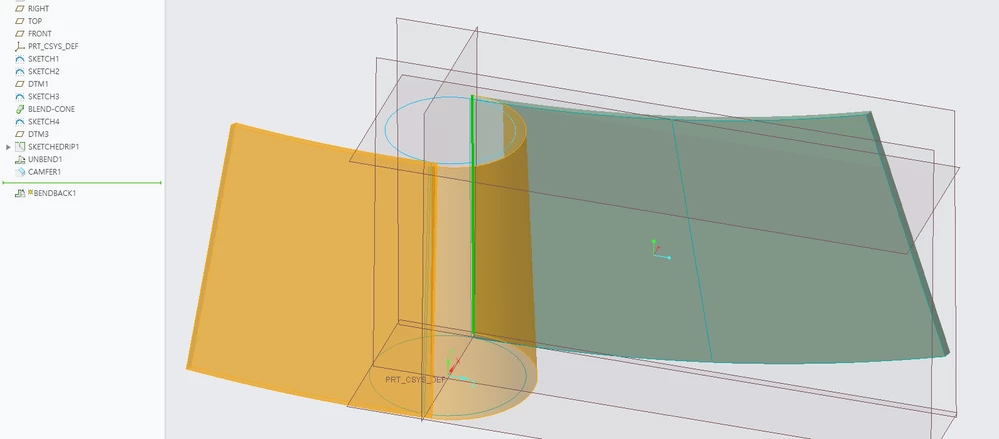

I added two cylinders to your model (diameter=916 and diameter=1100) ... see following picture.

For both cylinders I did following steps:

unbend
chamfer 50 degrees
bend back
sketch using bent chamfer edge

Finding no.1

When chamfer surface is bent back then it changes from planar surface to curved surface.

This is why you cannot bend a bent cone back - Creo does not know how to deform chamfer surface.

Finding no.2

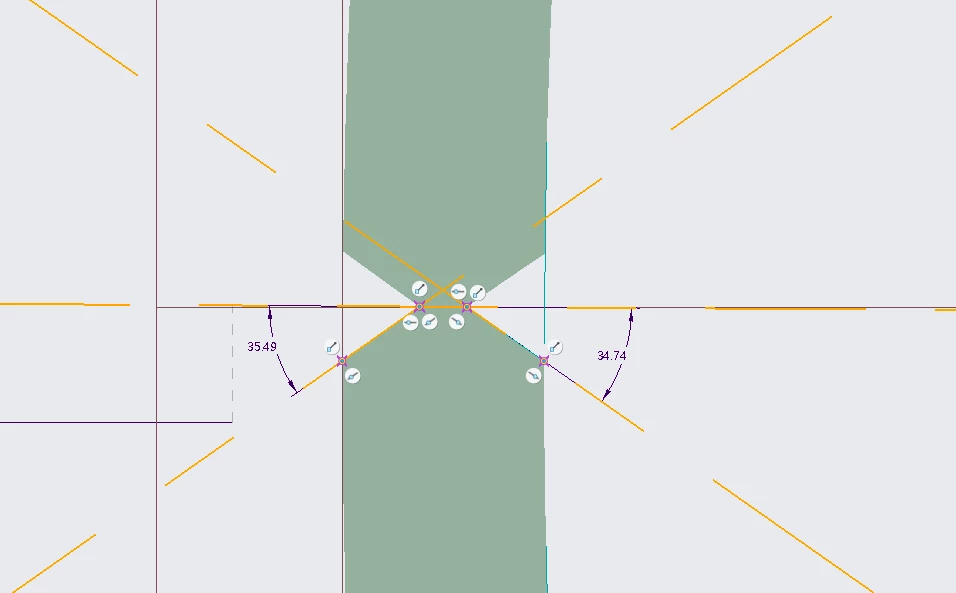

If you create sketch going through chamfer edge after bend back operation, you will get your angle.

At the top (diameter=916) it is 53.5 degrees.

At the bottom (diameter=1100) it is 52.9 degrees

So you know that the angle varies between two above values. >>> and this is the answer you are looking for (I hope).

M

MartinHanak

24-Ruby III

Hi,

please upload your model packed in zip file.

Translate

kdirth

21-Topaz I

The bend back feature needs the original anchor surface, or at least a portion of it, to work.

Also, you don't need to unbend in order to chamfer the edge.

Translate

There is always more to learn.

H

hyarth

Author

4-Participant

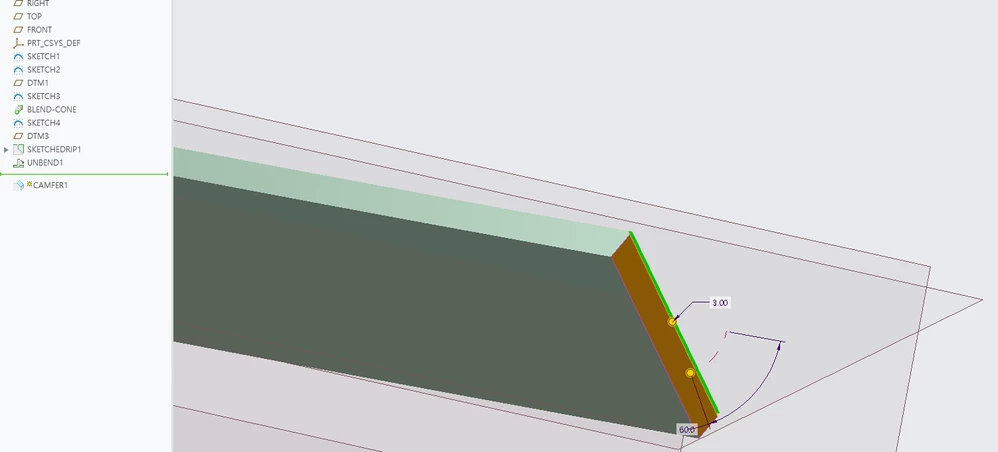

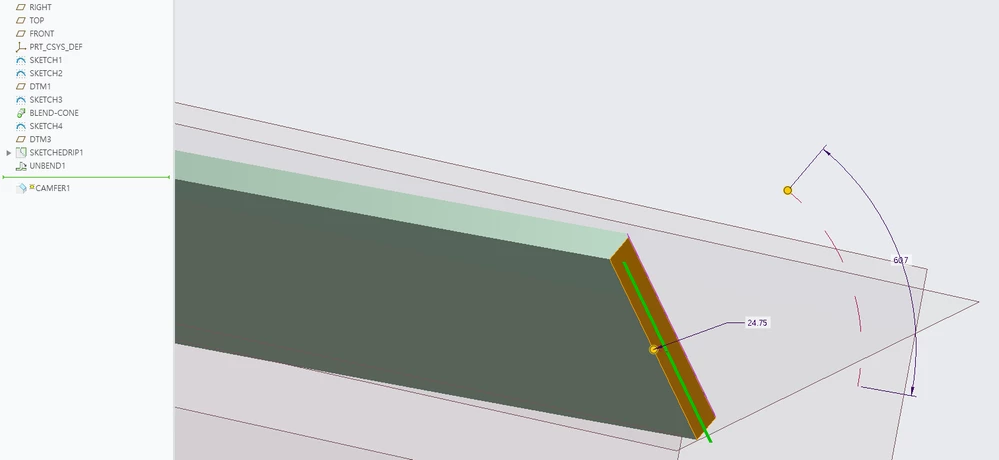

Specifically, I would like to know the angle change that occurs when bending again after chamfering in the unfolded state.

Translate

StephenW

23-Emerald III

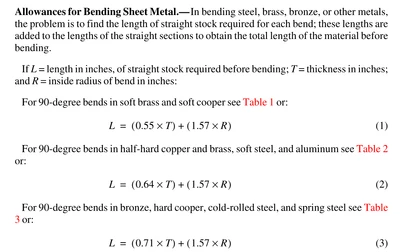

If you are talking about deformation due to manufacturing process, Creo is not doing that for you. Creo will calculate the "stretch" in the part from flat to form based on the given "y" or "k" value in the settings (it is your responsibility to set the correct value based on the manufacturing method and materials used).

All Creo Parametric will do for you is calculate bend allowance. See machinery handbook or google bend allowance. It is NOT doing anything other than solving a relatively simple calcuation based on value given.

If you need more than that, you will need other analysis tools.

Translate

M

MartinHanak

24-Ruby III

Hi,

bend.prt.1 was created in Educational Creo 9.0 version, therefore I cannot open it in Commercial Creo 9.0 version.

Please use pictures and text to provide more detailed description of your model. This enable me to recreate the model on my PC.

Translate

H

hyarth

Author

4-Participant

- sketch1's diameter is 1100, sketch2's diameter is 916, height is 2000, then I was blended.

- then I creat DTM3 to rip

Translate

H

hyarth

Author

4-Participant

cone's thickness was 50

Translate

M

MartinHanak

24-Ruby III

Hi,

I am sorry I am not able to give you any advice. I can only confirm that chamfer created after unbend will make it impossible to bend geometry back.

The question remains why you want to use the given procedure.

Translate

H

hyarth

Author

4-Participant

When we bend metal sheets in factory, we cut metal sheet before bending. so I want to know the angle change that occurs when bend with chamfering. If you know other procedure to solve this question, you can ignore my procedure.

Translate

H

hyarth

Author

4-Participant

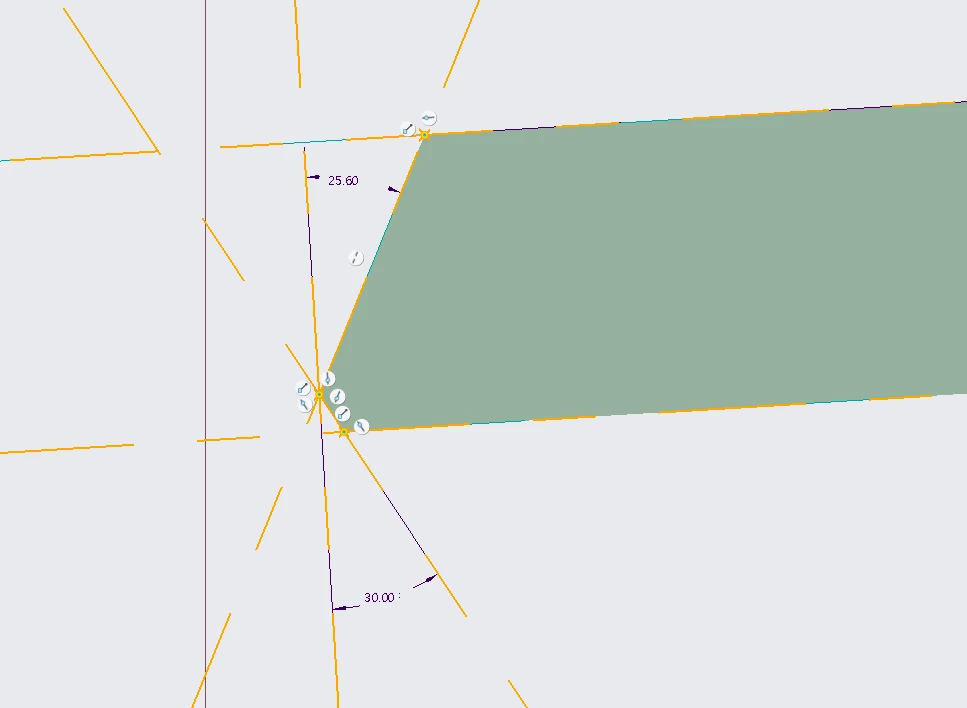

For exaple, when champered 30degree metal sheet bended, angle changed lager or smaller like 27degree or 33degree.

Translate

M

MartinHanak

24-Ruby III

Hi,

please attach a picture explaining the difference.

Note: In your previously published picture chamfers did not consume end faces of unbent sheet, therefore the sheet size with/without chamfers is the same.

Translate

H

hyarth

Author

4-Participant

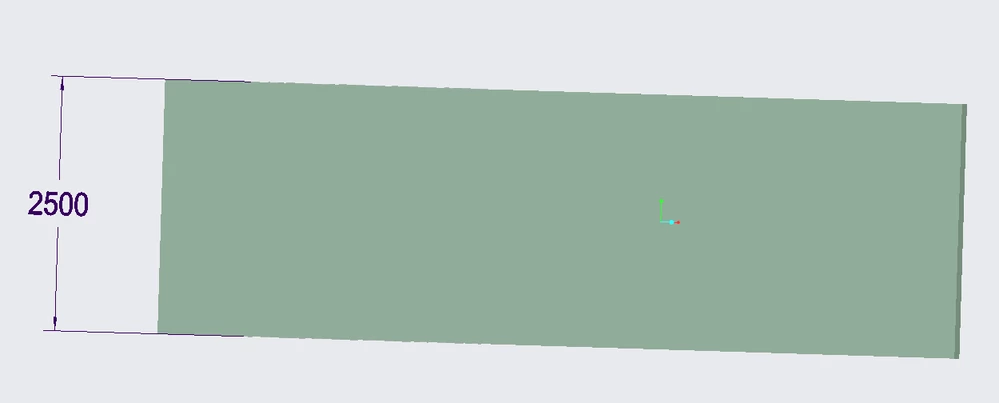

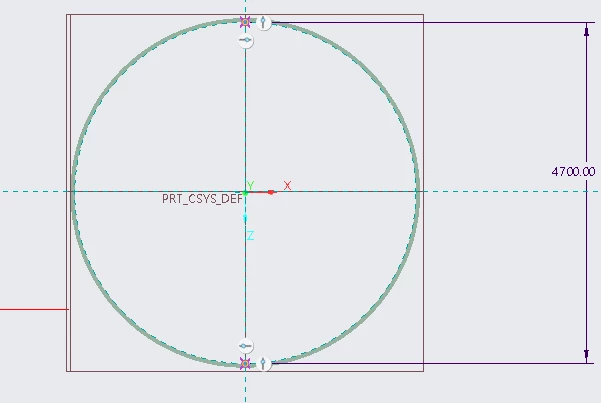

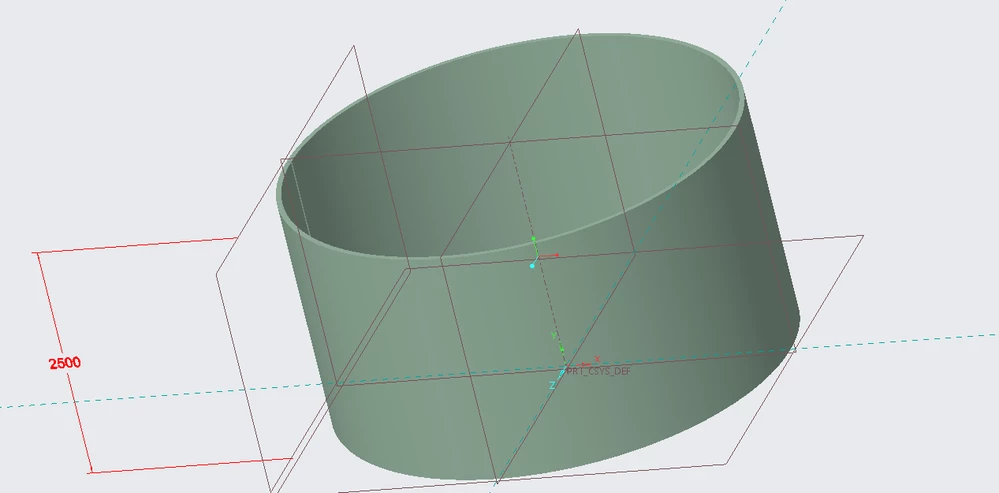

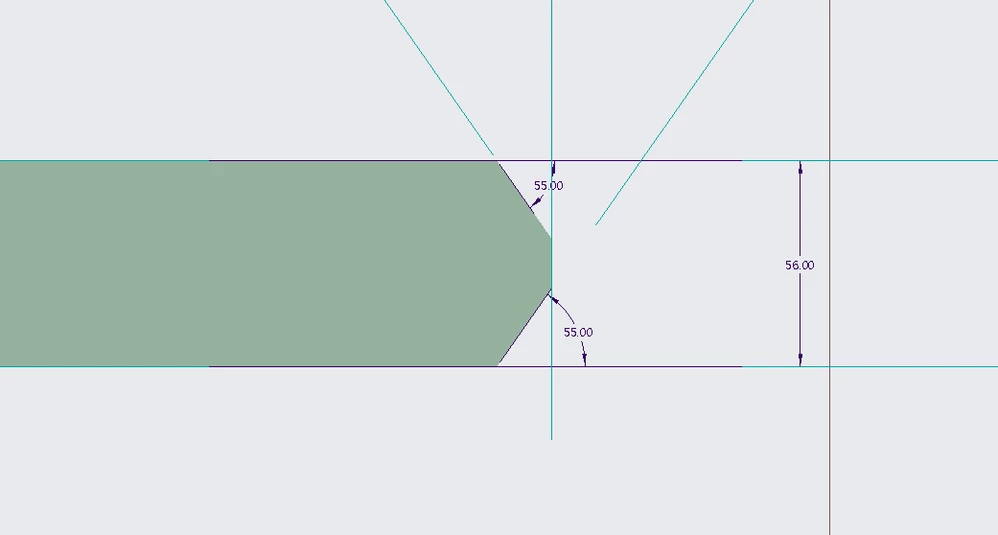

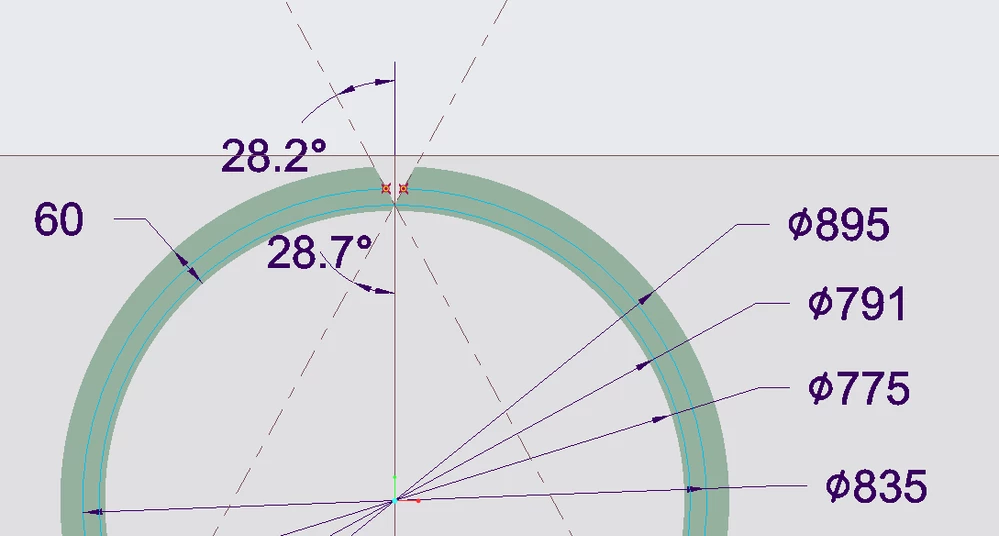

For example simply bending the cylinder, First, I made a cylinder with a thickness of 56 by spinning, then I made it into a flat plate by unbending.
