Question

Drawing Format Missing

  • July 14, 2018
  • 4 replies
  • 5320 views

Dear all,

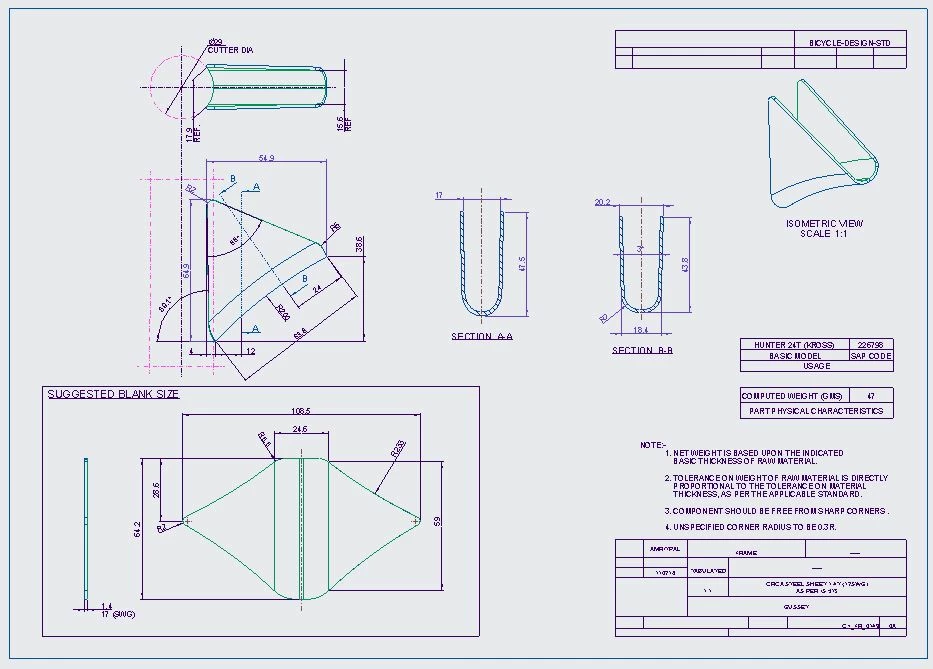

I have upgraded creo from 4th version to 5th version. The problem is when I open any drawing in creo5 the format outer box has automatically get blank rest all other title box and detail tables are available. Kindly check from attachment.

      This topic has been closed for replies.

      4 replies

      M
      MartinHanak24-Ruby III
      24-Ruby III
      July 16, 2018

      Hi,

      you have to configure Creo5 to see format files (.frm). Check Creo 4 config.pro file - look for PRO_FORMAT_DIR option.

      A
      amritsingh1-VisitorAuthor
      1-Visitor
      July 18, 2018

      Dear Martin,

      Thanks, it is working now.

      Simply select format directory in configure. file and save.

      Mahesh_Sharma
      Mahesh_Sharma22-Sapphire I
      22-Sapphire I
      July 16, 2018

      You may check article CS32706

      R
      rushabPmore1-Visitor
      1-Visitor
      September 19, 2018

      Go to left and see if some views are hidden (I know it doesn't explain "If I change the views to shaded, the views appear") or grayed out or something. Alternatively, right click that view in the featuremanager and click "reset line visibility", maybe you auto-hid all edges. If you have imported a SLDPRT which is actually just a sketch (developed view or something you manually created), go to the features embedded in the part embedded within the view, maybe the sketch itself got hidden (SW randomly does this automatically). Good luck mate.
