Drawing Pen line weight

  • July 9, 2018
  • 3 replies
  • 2832 views

Dear all,

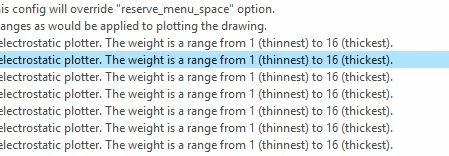

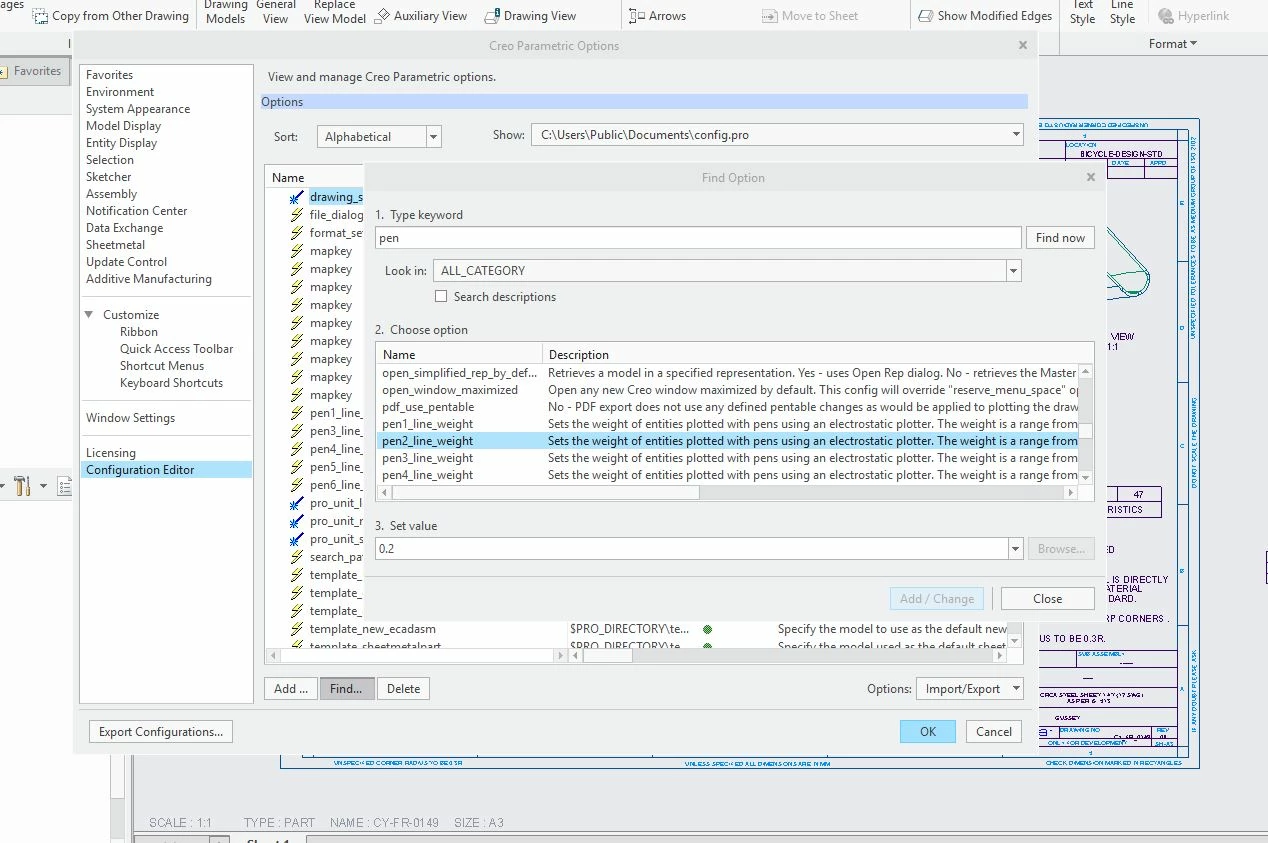

As I am a creo user, I facing a problem with Pen line weight. My drawing units are in MM. But I am unable to set line weight in a decimal place like 0.5 or 0.19 like Auto Cad. What I am getting that dimension line and center line and another reference lines are coming with the same thickness. I have attached the one screenshot of the same. Kindly suggest me how I can set thickness os all lines while working in MM units

    3 replies

    StephenW
    StephenW23-Emerald III
    23-Emerald III
    July 10, 2018

    You'll want to set up a pen table file.

    See these posts:

    https://community.ptc.com/t5/Data-Exchange/Separate-Pen-Tables-Used-for-PDF-s-and-Plot-Files/m-p/536254

    https://community.ptc.com/t5/Data-Exchange/PDF-Thickness-Pen-Table/m-p/398264



    There are many other posts discussing this, use the search term pen table

      A
      amritsingh1-VisitorAuthor
      1-Visitor
      July 12, 2018

      Thanks, Stephen Williams but the problem is of the decimal place. Kindly check the attachment



      D
      dgschaefer21-Topaz II
      21-Topaz II
      July 12, 2018

      Read the second link again. It describes how to use a pen table and how to set pen widths with a unit designation (only IN and CM are allowed). There's also a link to the Creo help page on pen tables.
