Drawing template views alignment

  • April 18, 2019
  • 2 replies
  • 2234 views

Hii!!

I want to create drawing templates using 1st angle projection method. I tried to make the templates but the views are not in alignment. How can I align them?

I am using creo parametric 3.0.



Best answer by claudedubois

hi, there

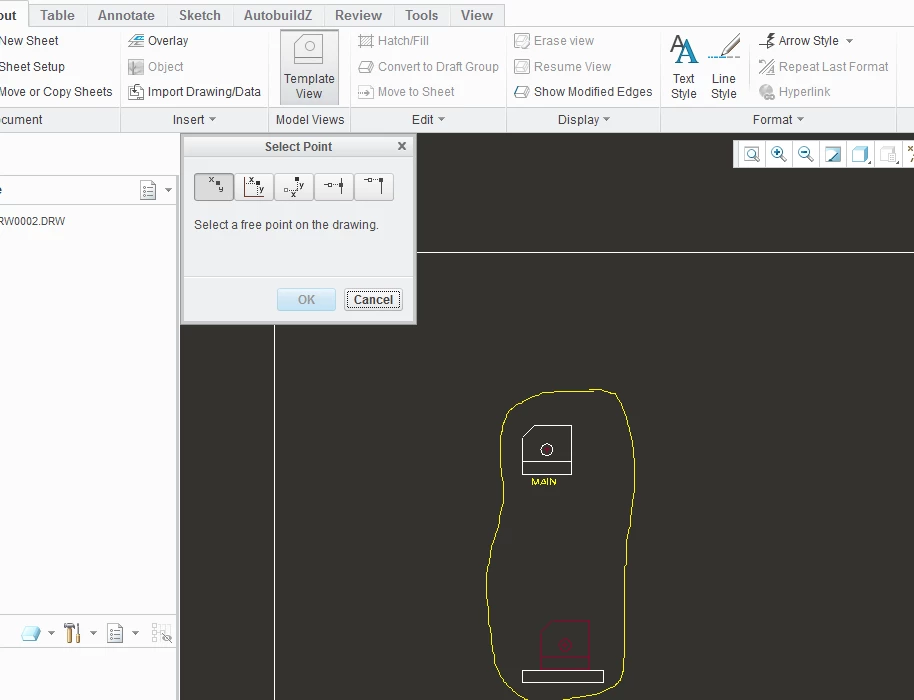

draw a line first, then click template view. after you insert the general view, you can double click it to choose edit-placement by vertex. so that you can move the template views to the vertex. you will get views aligned.



Good luck.



Claude

2 replies

C
claudedubois1-VisitorAnswer
1-Visitor
April 18, 2019

hi, there



draw a line first, then click template view. after you insert the general view, you can double click it to choose edit-placement by vertex. so that you can move the template views to the vertex. you will get views aligned.



Good luck.



Claude

S
sparulekar1-VisitorAuthor
1-Visitor
April 24, 2019

Thank you for your response!!
