drawings have so many decimal places

  • April 11, 2014
  • 4 replies
  • 6249 views


Can anybody know how to manage this problem ,as i just updated creo 2 from pro e wildfire ,it happened in all drawing sheets .

I dont have an idea of changing this decimal places.

Manish


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Mahesh_Sharma

Manish,

If you are working with Creo 2.0 M090 or later, you may try updating the drawing by setting a drawing option update_drawing with value as 2140864.

1. Open drawing.

2. File > Prepare > Drawing Properties > Change for Detail options > Add option update_drawing and value as 2140864

3. Review > Update Sheets > Save

Mahesh.

4 replies

M
mgupta-41-VisitorAuthor
1-Visitor
April 11, 2014


Please check it already set as default in my sketcher ,please suggest some other options.

Manish

M
mgupta-41-VisitorAuthor
1-Visitor
April 11, 2014

No its not working,i think i have to re dimension it ,cause when i re dimension ,its in shape.

Manish

R
rdonovan1-Visitor
1-Visitor
April 11, 2014

Manish,

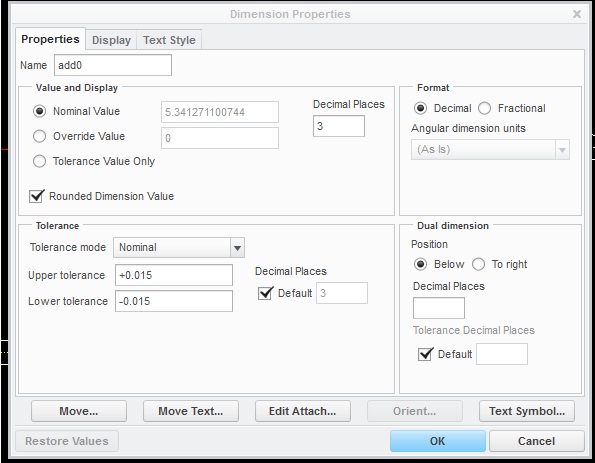

I have seen your problem before so this might work. Right mouse click on the dim and bring up the properties and make sure that the rounded dimension value is clicked or checked.

Rick


M
mgupta-41-VisitorAuthor
1-Visitor
April 11, 2014

Rick,

Yes by clicking rounded dimension value its working,but is there in method of doing in one stroke.

Itself it is also a great help.

Thanks Rick.

Manish

M
mmonteiro1-Visitor
1-Visitor
April 11, 2014

In my config.pro has:

default_dec_places 6

default_ang_dec_places 2

but, when I want to work with Drawings, I add in the Drawings folder a current_session.pro with:

default_dec_places 2

default_ang_dec_places 1

and in the Options I will import this file to chage the defaults values of the config.pro.

Mahesh_Sharma
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
April 12, 2014

Manish,

If you are working with Creo 2.0 M090 or later, you may try updating the drawing by setting a drawing option update_drawing with value as 2140864.

1. Open drawing.

2. File > Prepare > Drawing Properties > Change for Detail options > Add option update_drawing and value as 2140864

3. Review > Update Sheets > Save

Mahesh.
