Dual Dimensioning - Pattern quantity

  • August 2, 2019
  • 2 replies
  • 1861 views

Hello everyone.



I am a Creo 4.0, M080 user.



I am having a problem with Dual Dimensions. My Creo units are in, so my dual dimensioning is in[mm]. I have a drawing showing some notes with pattern quantities using the &pXXX from the model, and when I set the Drawing property dual_dimensioning to secondary[primary] or secondary, it shows my &pXXX*25.4, which is wrong, the pattern quantities must not be multiplied by the conversion factor. Do you know how to solve this?



Thanks in advance.

    2 replies

    KenFarley
    KenFarley21-Topaz II
    21-Topaz II
    August 2, 2019

    I'm using Creo 4 M060 and I don't see the behavior you are reporting. The number of pattern members, or "P" value is the same as a parameter with "INTEGER" as its type, and is thus unitless.

    I tested this out via the following:

    (1) I created a simple pattern on a part, 4 pattern members.

    (2) I created a drawing with the part, and defined a note "BLAH BLAH &p9." (i.e. the pattern member quantity for me was "p9").

    (3) The note was shown as "BLAH BLAH 4." regardless of what I set the units display to.

    Are you sure you're using &p and not &d? I can't think of any other cause, unless between M060 and M080 they introduced a whopper of an error into the program.

    I
    imoldes1-VisitorAuthor
    1-Visitor
    August 5, 2019

    Hi Ken.



    Thank you very much for your reply.

    I just noticed that it is not happening in all my drawings, just a few ones have this problem, which makes this even more strange.

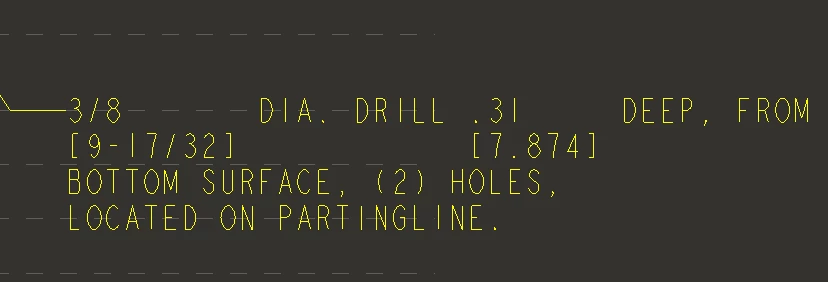

    In this image I have my drawing property dual_dimensioning as Primary[secondary]:

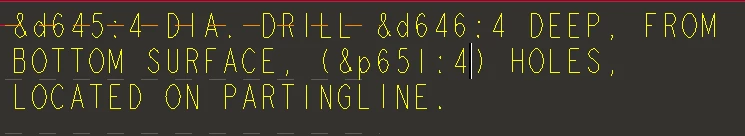

    As you can see, I have the &p value in the noteim2.PNG

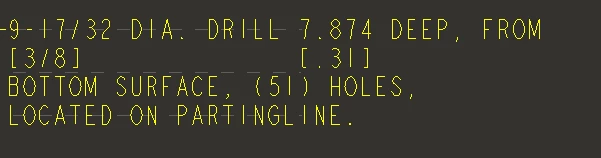

    But, when I change the Drawing property to Secondary[Primary], it changes the qty value from 2 to 51:




    I don't know if this is a bug or something, but it is not happening in all the files, just a few ones.



    Thank you.
