Dynamic Clearance Measurements

  • May 6, 2011
  • 6 replies
  • 2768 views
WF4, M100



I need to determine the clearance between two parts as one pivots around
another. The parts are assembled with mechanism constraints and will
move properly. I'd love to see the clearance on screen in a note and
have it change dynamically as I pivot the parts.



Best I can tell, however, I need to create an analysis feature for each
measurement I want, then create an annotation feature and within that
create a note and then enter the secret gibberish code
(&dim:FID_feature-name) to extract the dimension from the analysis
feature and then place the note someplace.



Is that it, or is there an easier way that I'm missing?



Doug Schaefer

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

    6 replies

    P
    PAULKORENKIEWIC1-Visitor
    1-Visitor
    May 6, 2011
    create a simple part to part (or whatever to whatever) ANALYSIS FEATURE
    that you are interested in, create the motion analysis (movement) in
    Mechanism, then use the ANALYSIS- MOTION ANALYSIS ; selected the
    appropriate mechanism analysis and analysis feature and it should dump
    you right into MS EXCEL graphing out the analysis feature...

    Thanks...

    Paul Korenkiewicz
    FEV, Inc.
    4554 Glenmeade
    Auburn Hills, MI., 48326

    D
    dgschaefer21-Topaz IIAuthor
    21-Topaz II
    May 6, 2011
    Well, what I thought I was going to do (described below) didn't work as
    the annotation feature doesn't update dynamically.



    Several have suggested a 'Motion Analysis' in mechanism. I switched to
    mechanism mode and selected analysis -> mechanism. I stared at the
    dialog that popped up for a bit. Couldn't figure out how do even start,
    so I went back to simply positioning the assy so that it was visually at
    the minimum distance and taking a measurement.



    I wasn't looking for any sort of detail or a report in Excel, just a
    simple number on screen that would update as I dragged the mechanism.
    Seems like I did that before, but can't remember how.



    Doug Schaefer
    M
    mjenkins10-Marble
    10-Marble
    May 6, 2011

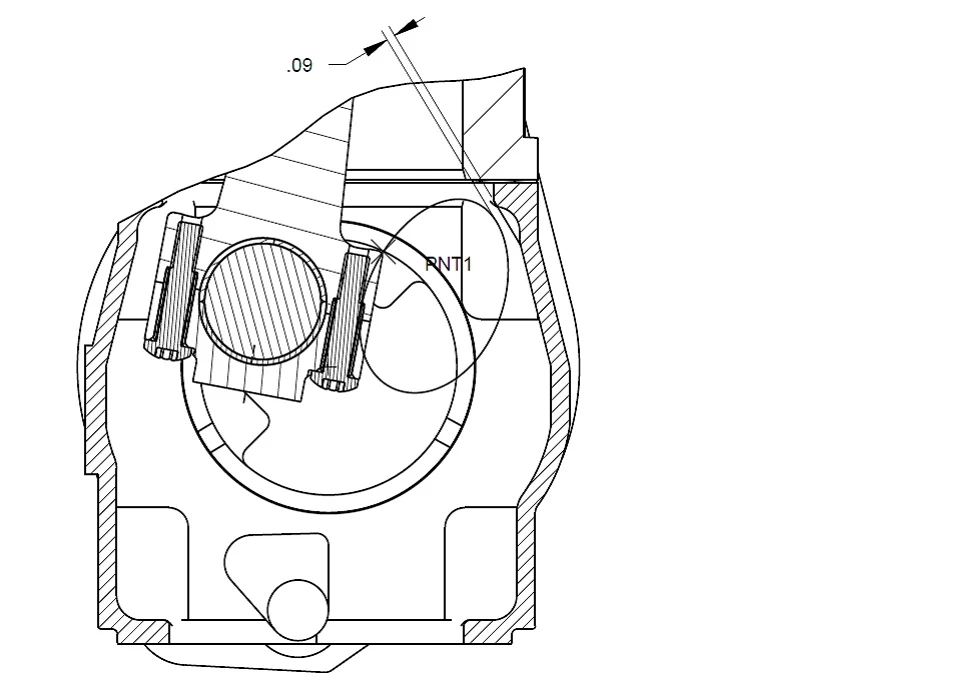

    I like to insert a point where you are concerned about the clearance.


    Run the mechanism and then select: Insert> Trace Curve


    The resulting curve can be used in a drawing to measure the clearance.

    In Reply to Doug Schaefer:


    WF4, M100



    I need to determine the clearance between two parts as one pivots around
    another. The parts are assembled with mechanism constraints and will
    move properly. I'd love to see the clearance on screen in a note and
    have it change dynamically as I pivot the parts.



    Best I can tell, however, I need to create an analysis feature for each
    measurement I want, then create an annotation feature and within that
    create a note and then enter the secret gibberish code
    (&dim:FID_feature-name) to extract the dimension from the analysis
    feature and then place the note someplace.



    Is that it, or is there an easier way that I'm missing?



    Doug Schaefer
    Senior Project Engineer, Mechanical
    - <



    Design Central
    Columbus, Ohio

    www.design-central.com http://www.design-central.com

    614.890.0202



    Confidentiality Notice
    This is a transmission from Design Central Inc, Columbus, Ohio which may
    be privileged and confidential, and thus is protected from disclosure.
    This message is NOT intended for transmission to, or receipt by, anyone
    other than the named addressee (or a person authorized to receive and
    deliver it to the named addressee). If the reader of this message is not
    the intended recipient, or an employee or agent responsible for
    delivering this message to the intended recipient, you are hereby
    notified that any dissemination, distribution or copying of this
    communication is strictly prohibited. If you have received this e-mail
    message in error, kindly accept our apology and please delete it from
    your system without copying or forwarding it, and notify the sender of
    the error by reply e-mail or by calling 614.890.0202 (collect).







    A
    anagnost1-Visitor
    1-Visitor
    May 9, 2011
    Hello,

    actually, that is not so difficult to accomplish.

    Create a *saved *measurement (point to arc, part to part etc) that gives
    you the desired distance and then switch to application/mechanism. If
    you drag your parts, you will see that the saved measurement updates
    dynamically. This is a fast and easy approach!

    Hth

    Vassilis Anagnostopoulos*
    *
    SPIDER SA
    Industrial Area - Rodotopi
    45500 - Ioannina
    Greece
    J
    jnanesh.sajjan1-Visitor
    1-Visitor
    May 9, 2011
    Hi,

    Yes, I believe its good to make the measurement as a feature and save in model
    tree.


    I guess you directly insert a dimension (Insert-Annotations-Dimension) on the
    model. It will be dynamically changing.

    Thanks,
    KS Jnanesha
