editable pdf file import

I am using Creo Parametric N/A N/A

To import .pdf files in Creo. the imported object should be editable.
    sacquaroneAnswer
    21-Topaz I
    Jan 19, 2022 2:46 PM UTC

    Hello @mbabu



    The different chapter starting from first one in Working with Data Exchange Formats section of Help Center explains what is possible to do in term of import and export for the different supported formats:

    • For instance, if you access Solidworks chapter in this section, you'll find guidance on how to Export and Import Solidworks models
    • However, if you access PDF and PDF U3D chapters in this section, you'll find guidance ONLY for the Export process



    In other words:

    • The Import process (with >File >Open or using Import capability from "Get Data" in 3D, or "Import Drawing Data" in 2D) in Creo Parametric of PDF and PDF U3D formats is currently not supported (whatever the mode :  2D or 3D)

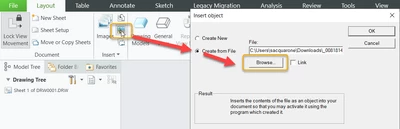

    • If the buisness need is to import the PDF in Drawing enviroment, an alternate way would be to import this using an OLE Object (guidance in Idea 461815: Allow a PDF file to be imported into a drawing, as draft entities.) - or better using >Object >Create from File from Layout tab:




    Regards,



    Serge

    View in thread

    3 replies

    KenFarley
    KenFarley21-Topaz II
    21-Topaz II
    Jan 18, 2022 5:23 PM UTC

    A PDF file is by nature dumb data. It's just a picture of whatever was written into the file. The text is editable, sometimes, if it *is* actually text and not just a scanned pixelation of text. My guess (I've never had cause to import a PDF) is that it's brought in as an image only, particularly if you're talking about geometry.

    Do you have a specific question about how to do something?

    Translate
      mbabu10-MarbleAuthor
      10-Marble
      Jan 19, 2022 1:45 PM UTC

      Thanks for reply.

      Pdf available in 2 different formats  -- (Output when it is converted to .dxf using other software's and imported to Creo)

      1. Image with text

      - (Image file as image and text files converted as editable text)

      2. Drawing file with text. E.g, part with front view and side view

      - (Lines as lines, circle as arc and text files converted as editable text)



      Requirement : Instead of using other software's to convert as .dxf files, It will be great if we have an option within Creo

      Translate
      sacquarone21-Topaz IAnswer
      21-Topaz I
      Jan 19, 2022 2:46 PM UTC

      Hello @mbabu



      The different chapter starting from first one in Working with Data Exchange Formats section of Help Center explains what is possible to do in term of import and export for the different supported formats:

      • For instance, if you access Solidworks chapter in this section, you'll find guidance on how to Export and Import Solidworks models
      • However, if you access PDF and PDF U3D chapters in this section, you'll find guidance ONLY for the Export process



      In other words:

      • The Import process (with >File >Open or using Import capability from "Get Data" in 3D, or "Import Drawing Data" in 2D) in Creo Parametric of PDF and PDF U3D formats is currently not supported (whatever the mode :  2D or 3D)
      • If the buisness need is to import the PDF in Drawing enviroment, an alternate way would be to import this using an OLE Object (guidance in Idea 461815: Allow a PDF file to be imported into a drawing, as draft entities.) - or better using >Object >Create from File from Layout tab:




      Regards,



      Serge
