Question
Exploded View / Jumping Summary
- July 30, 2012
- 1 reply
- 1019 views
Nice work around

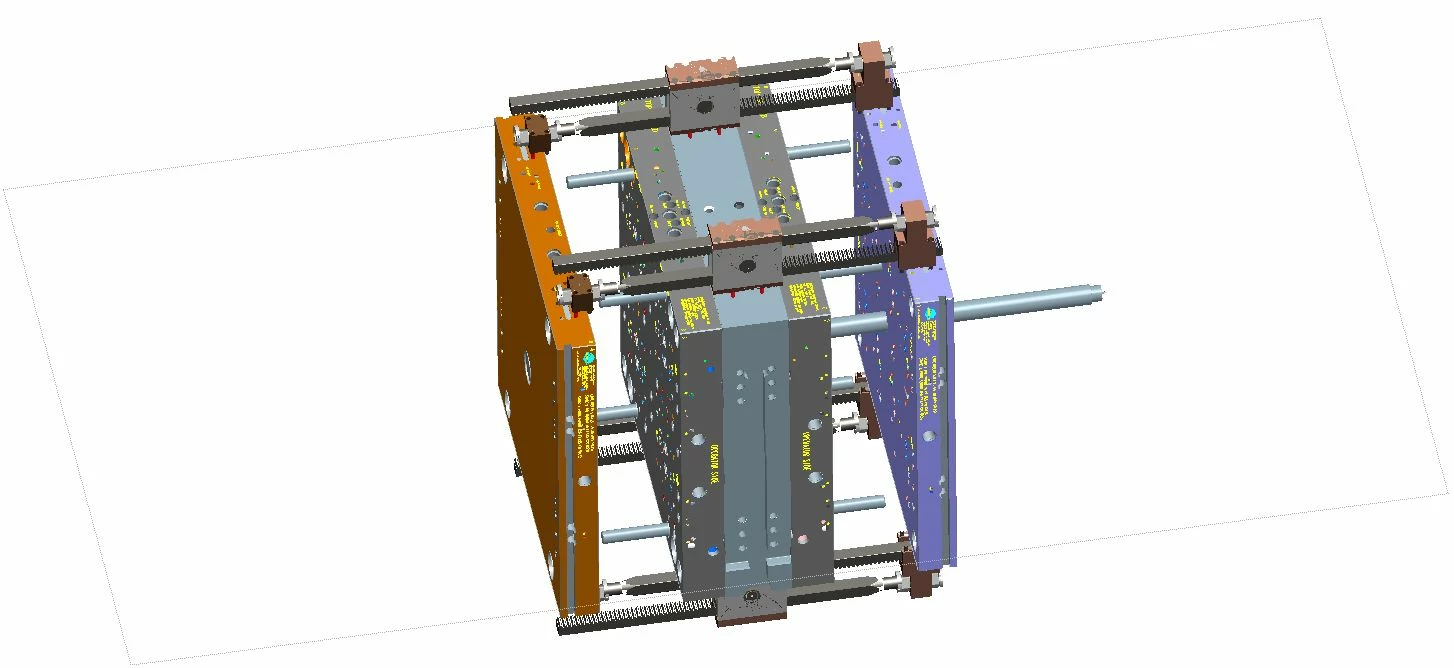

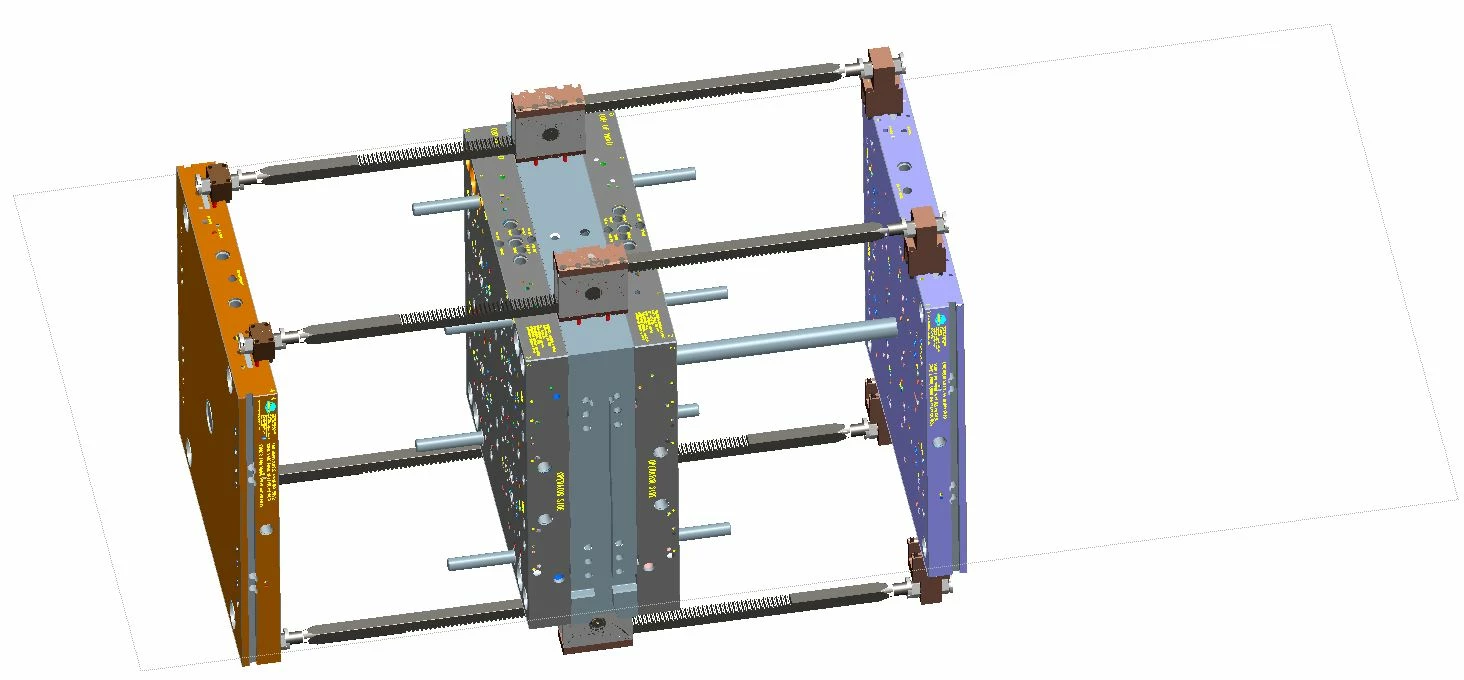

I used a Datum curve to define an envelope to work within, exploded view is now stable, but I’m still a bit shaky
And yes the curve can be hidden to clean up the screen
Sample images attached for your viewing pleasure
Thanks for the tip Dave
<jscott>
Jeff Lippeth ▪ Mold Design Engineer▪ NyproMold▪ P 847.855.2226
