Question

Export Annotation by STEP or IGS

  • April 9, 2014
  • 2 replies
  • 3196 views

Hi,

there is a way to export annotations with STEP or IGS?

Many thanks Luca.



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

L
Luca_Carraro13-AquamarineAuthor
13-Aquamarine
April 9, 2014

Hi Steven,

all right, I made it with Creo2 and open with WF4, it work.

Many thanks for the info.

B
BobWinslow1-Visitor
1-Visitor
June 5, 2015

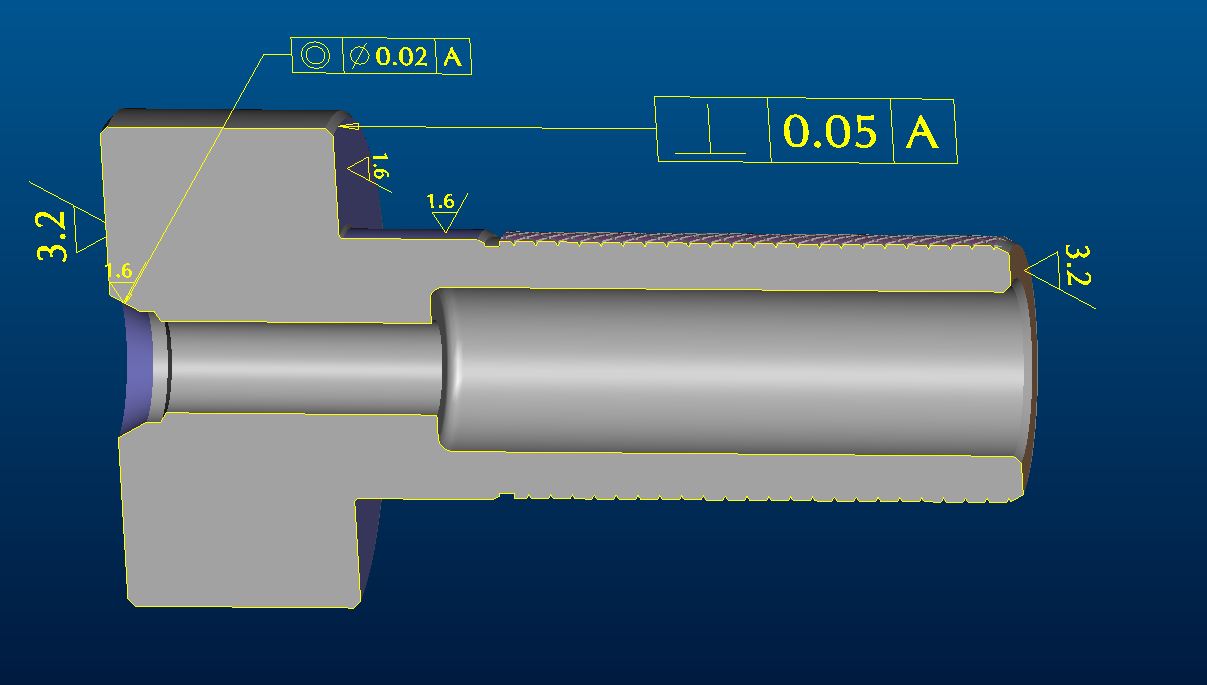

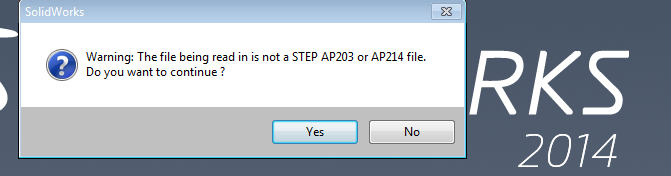

When I set my configuration, as stated above, and try to bring that step model into SolidWorks 14, I get a Warning

and the file fails to load.

any thoughts?

T
TomU23-Emerald IV
23-Emerald IV
June 9, 2015

SolidWorks 2014 does not appear to support annotations in STEP data.


2014 SOLIDWORKS Help - Step Files (*.step)

In the instructions listed above, Creo was configured to use AP203 E2 (edition 2).  This version of the standard does include annotations.  My guess is that SolidWorks does not support the E2 version of AP203 and therefore sees the file format as invalid.  The other option is that something is going on with the model units.  Take a look at this page for more info about that idea.

Also see STEP AP203 and AP214 Protocols for more info about the STEP standards.
