Exporting STEP files.

  • August 30, 2012
  • 1 reply
  • 6157 views

How can I export all the indiidual STEP files for each component of an Assembly?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

T
TomD.inPDX17-Peridot
17-Peridot
August 30, 2012

See if this is what you are looking for:


You will probably also have to configure it for ap214 mode rather than the default 203.

P
ptc-1452491-VisitorAuthor
1-Visitor
August 30, 2012

Well, this gives me one STEP file of the Assembly.

I was hoping to get (2) STEP models of the (2) parts in the assembly.

So Given asm001.asm

With part001.prt & part002.prt in asm001.asm...

How can I get part001.stp and part002.stp

T
TomD.inPDX17-Peridot
17-Peridot
August 30, 2012

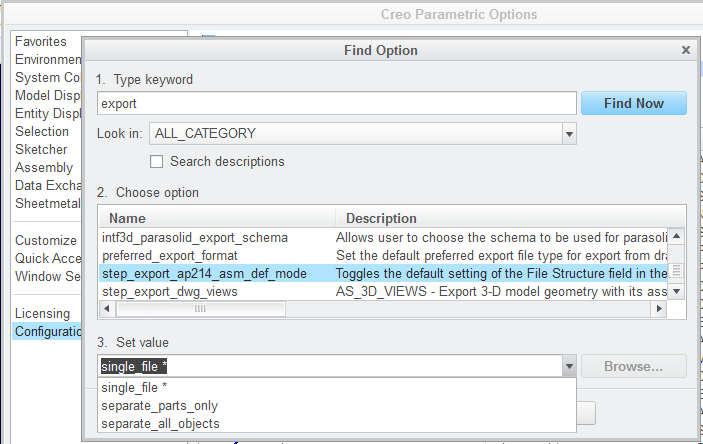

Isn't that what options separate_all_object or separate_parts_only in the step_export_ap214_asm_def_mode does?

You might also have to set step_export_format to ap214_is
