Extrude not displaying.

Forum|Forum|9 years ago
October 5, 2016
5 replies
4696 views

Hi,

One of my user came across a situation where when he is opening a part from assembly it is not displaying.

only planes and frame of part is appearing but base extrude model is not displaying.

Thanks in advance, If there is any option to display it or any setting missing out.

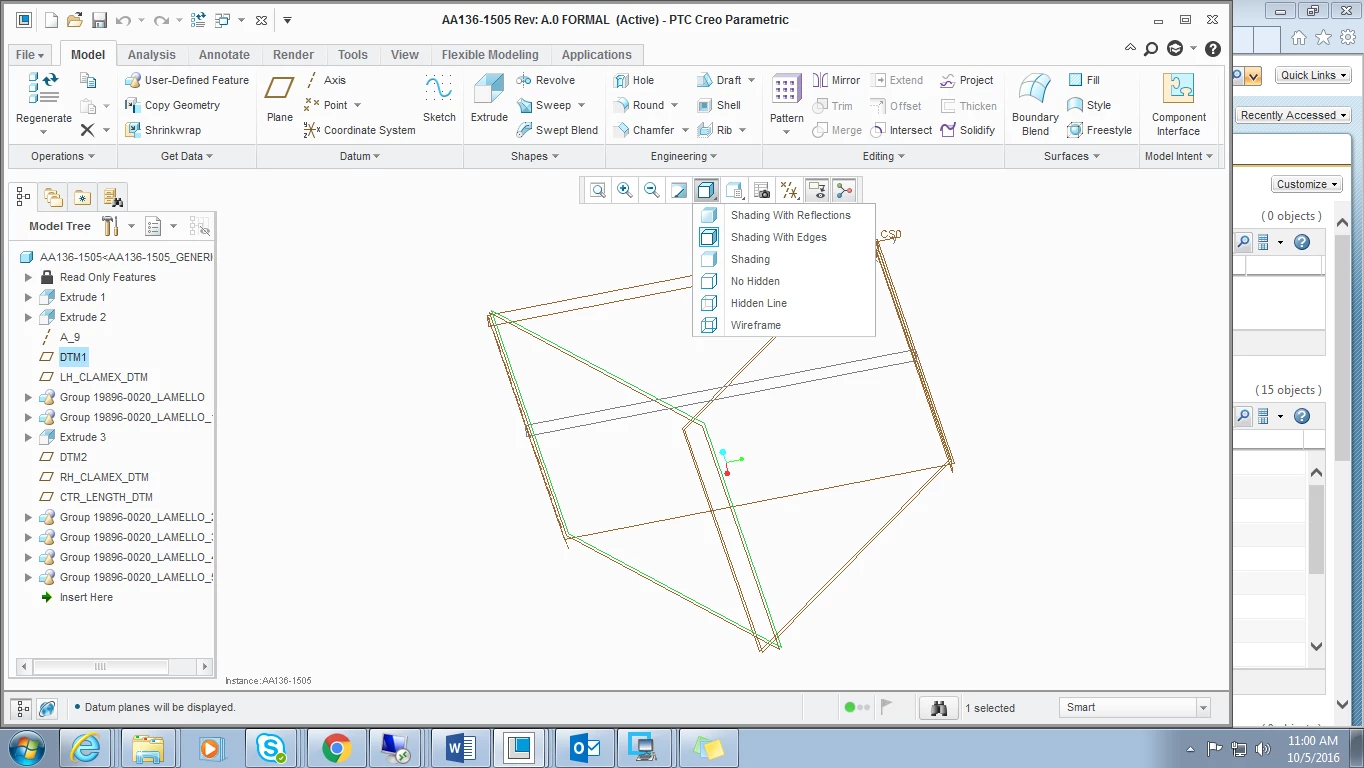

PFA

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

Assembly Design

24-Ruby III

Hi,

can you upload the model ? See How to Attach a File to a Discussion Reply

MH

23-Emerald III

Did you test it on any other users computers? I'm assuming you can see the geometry in the assembly, correct?

It's possible to set the color of the part to be completely transparent and also set the color of the part in the assembly to be normal.

If you select a feature in the model tree of the part, does it highlight the geometry edges?

1-Visitor

One thing to check might be the appearance. We had this happen and it turned out the appearance had been set to 100% transparent.

21-Topaz I

Your screen shot shows this is an instance of the model. Is there an issue with how the instance is defined?

There is always more to learn.

1-Visitor

Those icons look like surface extrusions, not solid ones. It is possible they are also on a layer because of some layer rule and have been blanked.
