Extruded Thin Ribs

  • May 2, 2013
  • 9 replies
  • 6473 views

Creo 2, M040



I swear I remember seeing that there was an enhancement in WF5 or maybe Creo 1 to allow you to sketch a series of lines, multiple open sections, and extrude that as a thin feature.  They showed it creating a network of ribs in a plastic part.



I’m trying to do this in an internal sketch (a simple T) in an extruded thin and Creo 2 is giving me the same old ‘ multiple loops must be closed’ error.  I tried again with an external sketch and got ‘Intersecting entities encountered in the section’ and Creo refused to use the sketch.



Am I dreaming about these extruded ribs?  If not, how do I do this?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by VladimirPalffy

Do you need to create the new feature - Trajectory Ribs

You can find other video tutorials here: http://learningexchange.ptc.com/tutorials/by_product/product_id:1

Regards,

Vladimir

9 replies

Dale_Rosema
Dale_Rosema23-Emerald IV
23-Emerald IV
May 2, 2013

I remember that at a SW users group meeting recently, but not on Pro/Creo.

VladimirPalffy14-AlexandriteAnswer
14-Alexandrite
May 2, 2013

Do you need to create the new feature - Trajectory Ribs

You can find other video tutorials here: http://learningexchange.ptc.com/tutorials/by_product/product_id:1

Regards,

Vladimir

dgschaefer21-Topaz IIAuthor
21-Topaz II
May 2, 2013

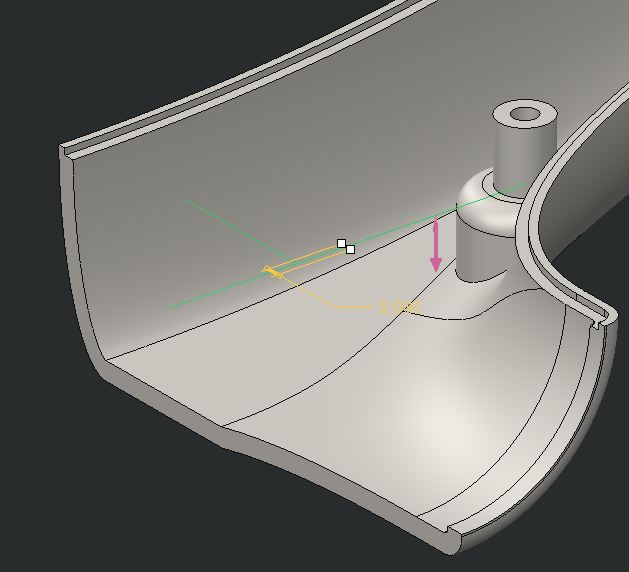

That's it, but it seems limited in that ribs cannot terminate at an open edge of the part.  In my case there is no side wall and the feature fails.






VladimirPalffy14-Alexandrite
14-Alexandrite
May 2, 2013

Hi Doug,

... yes it is true - do you need to create side walls for Trajectory Rib feature.

For your example, you can create closted shell and then you can use Solidify feature (create cut by plane/surface)

Regards,

Vladimir

VladimirPalffy14-Alexandrite
14-Alexandrite
May 3, 2013

Vote for new IDEA - Trajectory Rib feature for open geometry

Regards,

Vladimir
