Extruding From a Curve

  • May 29, 2014
  • 2 replies
  • 4890 views

I have an set of parametric equations (in x,y) driving a curve of a cycloidal gear I want to use. Problem is, there seems to be no way to extrude a 3-D part from the 2-D outline. Anyone have any ideas?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by neomechanikos

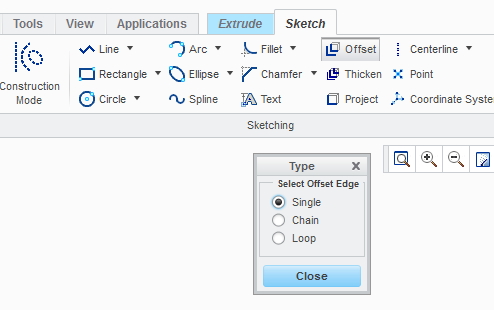

Welcome to the forum Dalton. You can extrude your 2D sketch from the same plane by using an extrude and offset from your curve (use an offset of 0). Use loop or chain to capture all of the curve as necessary.


2 replies

neomechanikos1-VisitorAnswer
1-Visitor
May 29, 2014

Welcome to the forum Dalton. You can extrude your 2D sketch from the same plane by using an extrude and offset from your curve (use an offset of 0). Use loop or chain to capture all of the curve as necessary.


DaltonF.1-VisitorAuthor
1-Visitor
May 30, 2014

Thanks to both of you; I knew that was the process to extrude but I was unable to. It was a settings problem; for some reason that layer-set the company uses automatically decides to hide the curve layer so that it is inaccessable, I had to go through some funky layer options to gain my access in order to extrude.
