Family table part with complex geometry

Forum|Forum|1 year ago
July 25, 2024
1 reply
1128 views

Hi,

Is ist posible to use parts with complex geometry for familiy tabels.

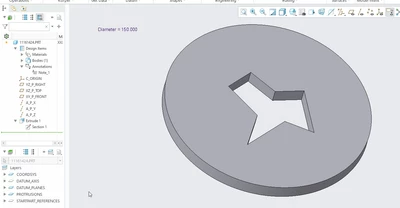

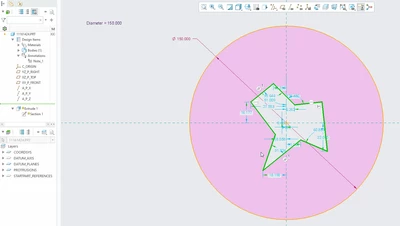

Pls see attached picture. I have a part where I want to drive the outer diameter by a family table parameter and the inside conture, which has a lot of dimension, should also scale when I change the diameter. I dont want to put in any inside shape dimesnion into family paramter because this is way to much work.

The relations between outer diameter and inside shape should also be constant for each family table part.

Basis question: Is this possible, If yes - how?

General

Best answer by tbraxton

Yes, it is possible to use family table to drive the outer diameter of the model. In order to scale the cutout, shape you would need to define the relationship to the outer diameter. If it is as simple as scaling the shape, then you can do this with construction geometry for the cutout shape i.e. a bounding box or polygon and then use a relation to set the scale factor as a function of the outside diameter. This method would apply the scaling in the model when regenerated after a change is made to the OD.

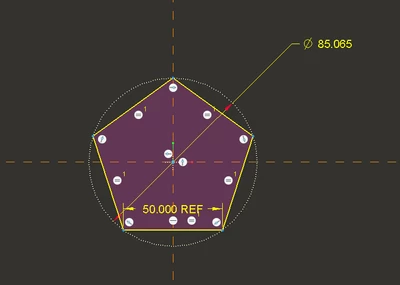

Example of construction circle defining the size of an inscribed polygon:

tbraxton

Answer

22-Sapphire II

Yes, it is possible to use family table to drive the outer diameter of the model. In order to scale the cutout, shape you would need to define the relationship to the outer diameter. If it is as simple as scaling the shape, then you can do this with construction geometry for the cutout shape i.e. a bounding box or polygon and then use a relation to set the scale factor as a function of the outside diameter. This method would apply the scaling in the model when regenerated after a change is made to the OD.

Example of construction circle defining the size of an inscribed polygon:
