Flat length of each family table instances

  • July 1, 2014
  • 1 reply
  • 2485 views

Hi,

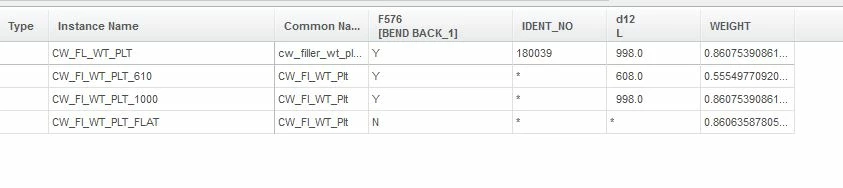

I have created a family table and i want flat length of each instances. I have created an flat instance but it gives the length of the generic part only. can anyone help me.

Regards

Sam


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
July 1, 2014

If you use an asterisk, as in your bottom instance, it simply gives the generic value for that instance, whatever that is. Avoid asterisks and use hard numbers unless that's EXACTLY what you want to happen.

S
SamuelAlexander1-VisitorAuthor
1-Visitor
August 21, 2014

i have a bend part with 5 instances. As its length varies its flat length also varies. So i want to show flat length of each of the bend part in drawing. is it possible

D
dschenken1-Visitor
1-Visitor
August 21, 2014

Create a measurement between the ends of the part in the flat state and have it create a feature that stores the measurement; add the feature to the table. For the non-flat states, suppress the measurement. Create a parameter that is equal to the measurement. Add the parameter to the table.
