Flexible modeling - question about rotating features

  • February 19, 2015
  • 1 reply
  • 2460 views

This seems trivial, but how do you rotate geometry precisely with the flexible-modeling extension?

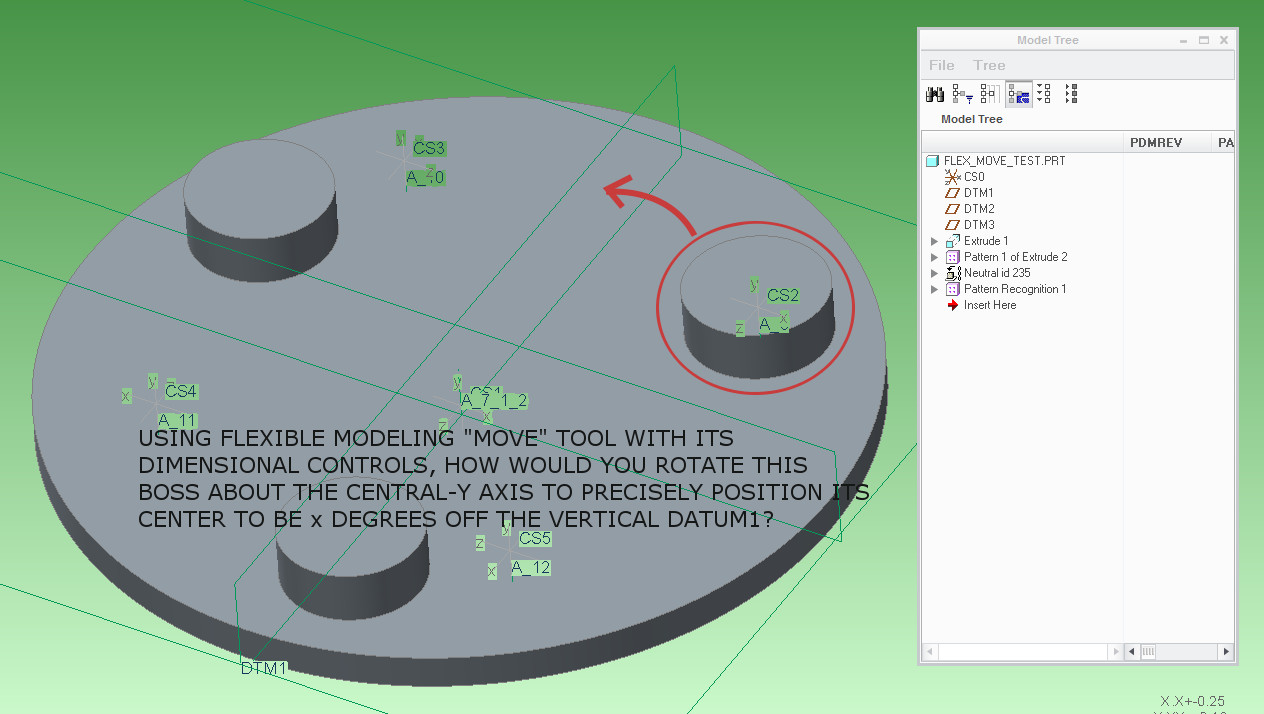

I can't seem to be able to create an angle dimension that will define the new position of the boss in the example below:



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
February 19, 2015

Paul,

Check attached video.... Is that you are looking for?



P
psobejko1-VisitorAuthor
1-Visitor
February 19, 2015

Nice video, and that's close to what I want to do, but is there a way to use the "by dimension" scheme of the flexible-move?

With your solution that uses the 3D dragger, the driving dimension shown on the drawing indicates 45° from the original boss location.

Suppose I wanted that a driving dimension that locates the boss 5.7° from the vertical?

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
February 19, 2015

No for rotation.
