Going to Creo 3 from Inventor and Solidworks

  • January 22, 2015
  • 3 replies
  • 9932 views

Hi folks

We use Creo across the company (900+ users) - with a couple of smaller groups still on Inventor or Solidworks.

As we prepare to upgrade to Creo 3, people from those groups are interested in how Creo 3 could handle those files.



We've begun testing in this area, so I'd like to start a discussion thread here for others in the same situation, and also ask a few questions:



Creo 3 allows you to open Solidworks files in native format, and they show in the tree.

Inventor files need to be converted, they can't remain native.



Q1 - Is there a plan for Creo to ever open Inventor files in native format, as per SW, CATIA, etc?



CAD models are showing OK, despite the lack of features - and we can use flexible modeling to push/pull/change the geometry.



Q2 - How are drawings from SW and Inventor handled in Creo 3, if at all?



Q3 - Does anyone have recommendations for working with files from these systems in Windchill? Eg: managing SW/Inventor data alongside related Creo files?



Many thanks for reading, I'm sure we'll think of more questions as time goes along.



Regards

Ed


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

R
rohit_rajan15-Moonstone
15-Moonstone
January 22, 2015

1.Creo 3.0 M020 will open Inventor Files.

2. Creo 3.0 M030 will be able to save in non-native CAD formats..there would be a collaboration extension for that separately..you have purchase this extension.

3. PTC has said nothing about non-native drawing formats.

    P
    proed1-VisitorAuthor
    1-Visitor
    January 22, 2015

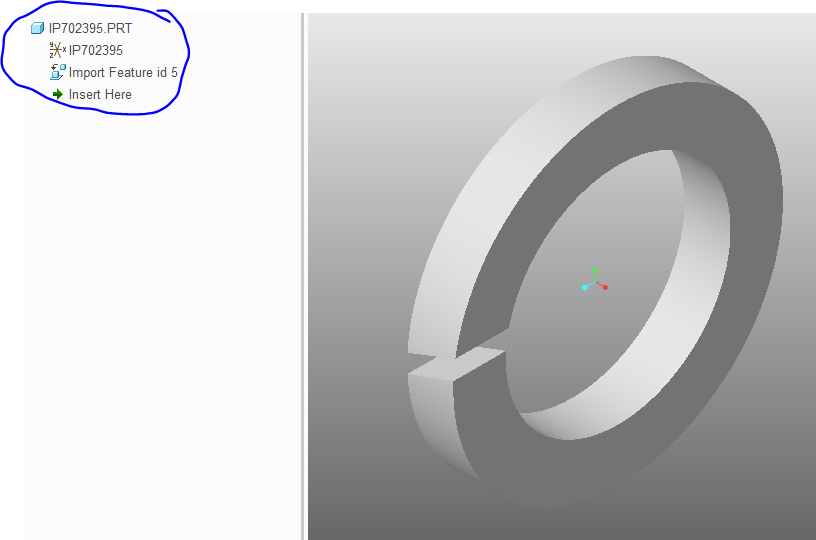

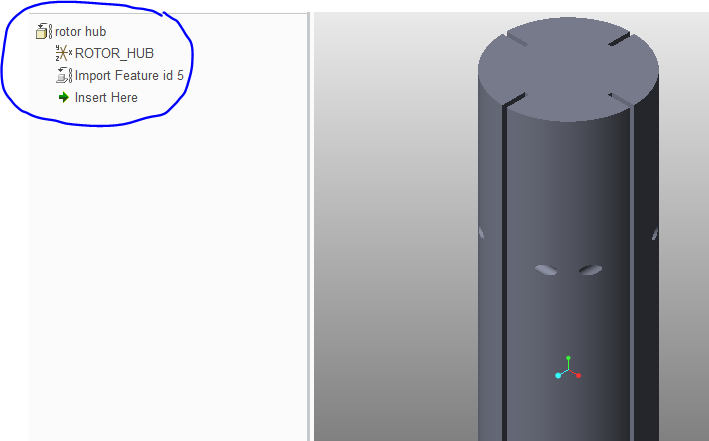

    Hi Rohit, Thanks for your quick reply, to clarify on my first question, I'm asking if Inventor files will be handled the same as SW, in terms of ATB/model updates, etc. I'll include 2 screenshots, Solidworks then Inventor, spot the difference. Regards, Ed


    R
    rohit_rajan15-Moonstone
    15-Moonstone
    January 23, 2015

    which maintenance version of creo 3.0 are these screeshots from?

    the information i gave above is as per the PTC presentation.

    Creo 3.0 M020 should be able to open and not import Inventor files.

    C
    ChrisPLM12-Amethyst
    12-Amethyst
    August 14, 2015

    Hello Edwin

    This discussion is a good 6 months old now. Have you made more progress. ?

    I would like to quickly (if I can) explain my situation to show my great interest in your discussion. My company is currently using PDS 2015 (Product Design Suite) from Autodesk which includes Inventor 2015 and Vault Professional 2015.  We are envisaging to move from Vault to PDMLink but we are still questioning the move from Inventor to Creo 3.

    We have to balance the couple PDMLink/Creo vs  PDMLink/Inventor  and Creo reading Inventor files or if we need to manually convert those inventor files.

    The intake of inventor is currently not great, still a lot of stuff in 2D Autocad.,

    One of the idea is that if Creo 3 can use (not only read) Inventor files and handle them the same way it does with Creo files (so understanding geometry, references, have a assembly file with a mix of inventor and creo file etc...) then this would be great and help in the decision making.

    I have seen demonstration and documentation but as always there is a big element of marketing blabla and it always works. The real world is generally quite different.

    I have asked a PTC reseller to take some of our inventor files and do a demonstration but they always postpone it.......

    Therefore I am now seeking out other end users like me and see what experience they have gathered so far.

    Thanks

    Best regards

    M
    magnus.salomons15-Moonstone
    15-Moonstone
    August 17, 2015

    We don't use it but I have tested it. Just as any import it's not 100%. A few 'open native' still fails to become solids. I've had a few parts that were opened as surfaces with quite severe artifacts. I also had one part that failed to open and made Creo Not Responding. When I removed the original Catia part from folder it could open the assembly with a missing component. I couldn't open that part as a single part either.

    Even though PTC states that it can read and open native files there is still some conversion going on. The first time you open native files Creo creates a 'mapping file' that has the same name but adds .creo to filenname.See pic below. These tends to get quite big if the parts are complicated. It's a huge time difference opening the native files the first time as the .creo files are created. The next time you open the native files it's more or less just as fast as open a a native Creo file.

    Native Catia structure.jpg

    C
    ChrisPLM12-Amethyst
    12-Amethyst
    August 17, 2015

    Hello Magnus,

    thanks for taking the time to share your experience.

    It is very informative.

    It would seem that there is the Marketing blabla who want to make us believe everything is beautiful, easy ,and straighforward and there is the reality.

    So far I understand that the reality is that Creo still does not read directly the other native file but create an On The Fly conversion.

    It is obviously a great improve as there is no need to use neutral format and trying to create a creo file from the neutral format.

    The .creo files seems to be about close to twice the size the native files.

    Correct me if I am wrong but I think you tested it offline, I mean without using Windchill.

    I wonder how Windchill handles those extra files. Have you done any test with Windchill ?

    You have tested with Catia, I guess it is the same process with any other type of files.

    I wonder how far PTC went with that functionalities. For instance Inventor has what it is called, iparts, iassembly, ilogic, etc... I wonder if Creo can understand all of these

    Thanks

    Best regards

    C
    ChrisPLM12-Amethyst
    12-Amethyst
    August 19, 2015

    Hi

    thought this video could be of interest

    https://www.youtube.com/watch?v=PAbe9Hk7w04

    interview with Brian Thompson
